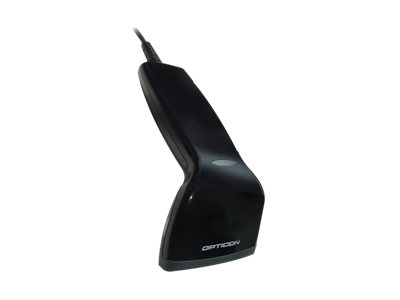

Printers & POSOpticon C-37 - barcode scanner
SKU 12305
| Product Description: | Opticon C-37 - barcode scanner |
| Type: | Barcode scanner - handheld - RS-232 - decoded |
| Colour: | Black |
| Minimum Bar Width: | 5 mil |
| Scan Element Type: | CCD |
| Scan Speed: | 200 scan / sec |
| Connectivity Technology: | Wired |
- Specifications
- Description
| General | |
| Type: | Barcode scanner - handheld |
| Colour: | Black |
| Barcode | |
| Interface Type: | RS-232 |
| Minimum Bar Width: | 5 mil |
| Scan Element Type: | CCD |
| Light Source Wave Length: | 630 nm |
| Scan Speed: | 200 scan / sec |
| Decode Capability: | EAN/JAN, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, NW-7, IATA, ISBN, GS1 DataBar, Telepen, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Korea Post, Trioptic Code, ISSN, UK-Plessey, EAN-3, EAN-18 |
| TTL Decoding: | Decoded |
| Connectivity Technology: | Wired |
| OK Notification: | LED indicator, vibration |
| Features: | Triggered |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232 - DB-9 |
| Miscellaneous | |
| Compliant Standards: | VCCI, FCC, RoHS |
| Power | |
| Power Device: | Power adapter - external |
| Dimensions & Weight | |
| Width: | 5.3 cm |
| Depth: | 15 cm |
| Height: | 7.5 cm |
| Weight: | 90 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
| Drop Specification: | 1.5 m to concrete |
The C-37, a rugged, reliable, very affordable CCD barcode scanner, features a scan rate of 200 scans/sec and sustains a drop from 1,5 m to concrete. Great for administrative records control, healthcare or retail applications.
The handheld scanner is mostly used in retail and service tasks because of the sleek design and high scanning rate. The handheld scanner can be used for scanning at a check-out counter, service desk, retail counter, and more.
The handheld scanner is mostly used in retail and service tasks because of the sleek design and high scanning rate. The handheld scanner can be used for scanning at a check-out counter, service desk, retail counter, and more.
- Affordable, durable and reliable
- Scanner contains no moving parts
- Enhanced decoding algorithms for ultra-fast (200 scans/second) barcode scanning
- Reads 1D barcodes from LCD screens
- Durable - survives 1,5 meter drop to concrete
- IP42 rating against dust and moisture
- Trigger modes: manual and autotrigger
- Compact size and weight
- Communication interface: RS232, or USB
The technical details come from 3rd party. edgemo is not responsible for any errors.
