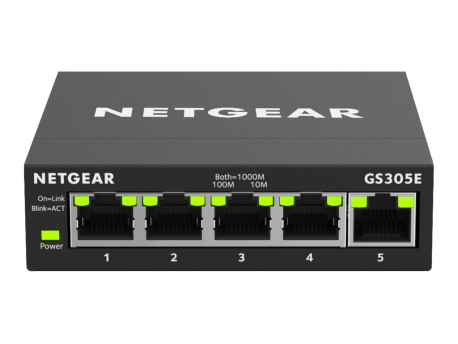

NETGEAR Plus GS305E - switch - 5 ports - smart
SKU GS305E-100PES
Product Description: | NETGEAR Plus GS305E - switch - 5 ports - smart |
Device Type: | Switch - 5 ports - smart |
Subtype: | Gigabit Ethernet |
Ports: | 5 x 10/100/1000 |
Performance: | Bandwidth: 16 Gbps |
Capacity: | VLANs supported: 64 ¦ Multicast groups: 128 |
MAC Address Table Size: | 8000 entries |
- Specifications
- Description
General | |
Device Type: | Switch - 5 ports - smart |
Subtype: | Gigabit Ethernet |
Ports: | 5 x 10/100/1000 |
Performance: | Bandwidth: 16 Gbps |
Capacity: | VLANs supported: 64 ¦ Multicast groups: 128 |
MAC Address Table Size: | 8000 entries |
Jumbo Frame Support: | 9KB |
Routing Protocol: | IGMP, IGMPv2, IGMPv3 |
Remote Management Protocol: | TFTP |
Features: | SOHO, QoS, IGMP snooping, VLAN support, DoS attack prevention, loopback detection, rate limit, port mirroring, Jumbo Frames support, store and forward, WRR, port-based VLAN, block unknown multicast, DHCP client, DSCP support, CoS, ToS, SP, cable test, 128KB packet buffer |
Compliant Standards: | IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
Status Indicators: | Speed, link/activity, power, system |
Expansion / Connectivity | |
Interfaces: | 5 x 1000Base-T RJ-45 |
Miscellaneous | |
MTBF: | 2,531,294 hours |
Compliant Standards: | Plug and Play, FCC Part 15 Class B, EN 55032, VCCI, ACMA, EN55024 |
Dimensions & Weight | |
Width: | 9.4 cm |
Depth: | 10 cm |
Height: | 2.7 cm |
Weight: | 250 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years ¦ Technical support - phone consulting - 90 days |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 50 °C |
Humidity Range Operating: | 90% (non-condensing) |
Min Storage Temperature: | -20 °C |
Max Storage Temperature: | 70 °C |
Humidity Range Storage: | 95% (non-condensing) |
Today’s growing businesses demand and rely more on their network to carry out mission-critical business activities. Companies are putting more network traffic and applications such as VoIP phones and IP cameras on their Ethernet infrastructure. It needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR Plus Switches meet this growing need by providing fundamental network features that will help optimize the performance of business networks. On top of the plug-N-play Gigabit Ethernet connectivity, these switches also offer essential networking features such as VLAN, QoS, IGMP Snooping, Link Aggregation / Port Trunking on models with 16 ports or more, rate limiting and traffic monitoring. NETGEAR Plus Switches are an exceptional value for businesses looking to add intelligence to their network beyond what unmanaged switches can provide.
- Plus Switch delivers network monitoring, traffic prioritization and VLAN
- Up to 48 ports (depending on model) deliver up to 2000 Mbps of dedicated, non-blocking bandwidth per port
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Gigabit speed with QoS, VLAN and network monitoring
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto "denial-of-service" (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimization
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Port Trunking to increase bandwidth and provide redundant links
The technical details come from 3rd party. edgemo is not responsible for any errors.
