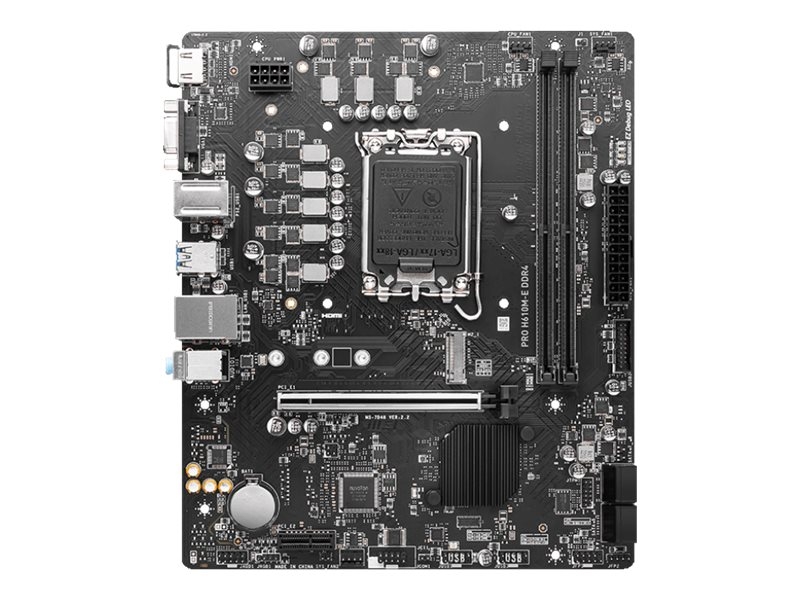

Printers & POSMSI PRO H610M-E DDR4 - motherboard - micro ATX - LGA1700 Socket - H610
SKU PRO H610M-E DDR4
| Product Description: | MSI PRO H610M-E DDR4 - motherboard - micro ATX - LGA1700 Socket - H610 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel H610 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2133 MHz, 2666 MHz, 3200 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 1 x serial - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features: | MSI ClickBIOS 5 |
| Hardware Features: | Chassis intrusion detection, MSI Core Boost, MSI Memory Boost, MSI PCIe Steel Slot, Debug LED, MSI Audio Boost |
| Miscellaneous | |
| Included Accessories: | IO shield, M.2 clip |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | MSI Center |
| Compliant Standards: | FCC Part 15 Class B, WEEE, JIS C 0950 |
| Width: | 23.6 cm |
| Depth: | 20 cm |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Supports powerful processors for LGA 1700 socket
- Supports DDR4 memory
- Core Boost: with premium layout and digital power design to support more cores and provide better performance
- Memory Boost: advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning-fast experience: PCIe 4.0
- Audio Boost: reward your ears with studio-grade sound quality
- Steel armor: protecting VGA cards against bending and EMI for better performance, stability and strength
The technical details come from 3rd party. edgemo is not responsible for any errors.
