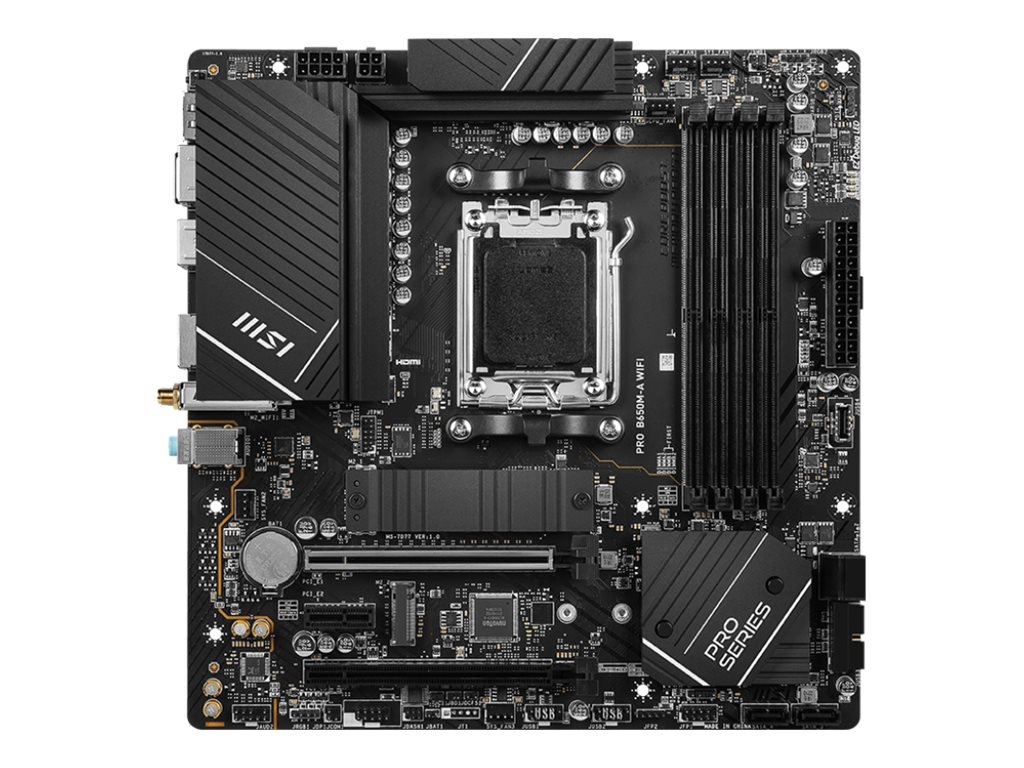

MSI PRO B650M-A WIFI - motherboard - micro ATX - Socket AM5 - AMD B650

SKU PRO B650M-A WIFI
Product Description:MSI PRO B650M-A WIFI - motherboard - micro ATX - Socket AM5 - AMD B650
Product Type:Motherboard - micro ATX
Chipset Type:AMD B650
Processor Socket:1 x Socket AM5
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, unbuffered
04-04-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - micro ATX
Chipset Type:AMD B650
Processor Socket:Socket AM5
Max Processors Qty:1
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:128 GB
Technology:DDR5
Bus Clock:6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, AMD EXPO technology
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC897
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8125BG
Network Interfaces:2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1
Interfaces:1 x HDMI ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 4 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors:24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Features:MSI ClickBIOS 5, M-Flash
Hardware Features:Water Pump Header, Debug LED, Extended Heatsink Design, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, 6 Layer PCB, 2oz Copper PCB, DIY Friendly Design, MSI Steel Armor, Surface Mount Technology (SMT), MSI Mystic Light, MSI Audio Boost, flash BIOS button
Miscellaneous
Included Accessories:2 x M.2 screw / standoff sets, IO shield, Wi-Fi aerial
Cables Included:1 x Serial ATA cable
Software Included:AIDA64 Extreme (60 days trial), MSI Center
Compliant Standards:DisplayPort 1.4
Width:24.384 cm
Depth:24.384 cm
vis mere
PRO B650M-A is designed with tons of flexible tools with DDR5 memory version.
The PRO series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide user incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO series to assist you with multitasking and increasing efficiency.
  • Supports AMD Ryzen 7000 series desktop processors
  • Supports DDR5 memory, dual channel DDR5 6000+ MHz (OC)
  • Enhanced power design - 8+2+1 duet rail power system, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
  • Premium thermal solution - 7 W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • High Quality PCB - 6-layer PCB made by 2oz thickened copper
  • Lightning fast game experience - PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
  • 2.5G LAN with Wi-Fi 6E solution - upgraded network solution for professional and multimedia use, delivers a secure, stable and fast network connection
  • Audio Boost - reward your ears with studio grade sound quality for the most immersive gaming experience




The technical details come from 3rd party. edgemo is not responsible for any errors.
