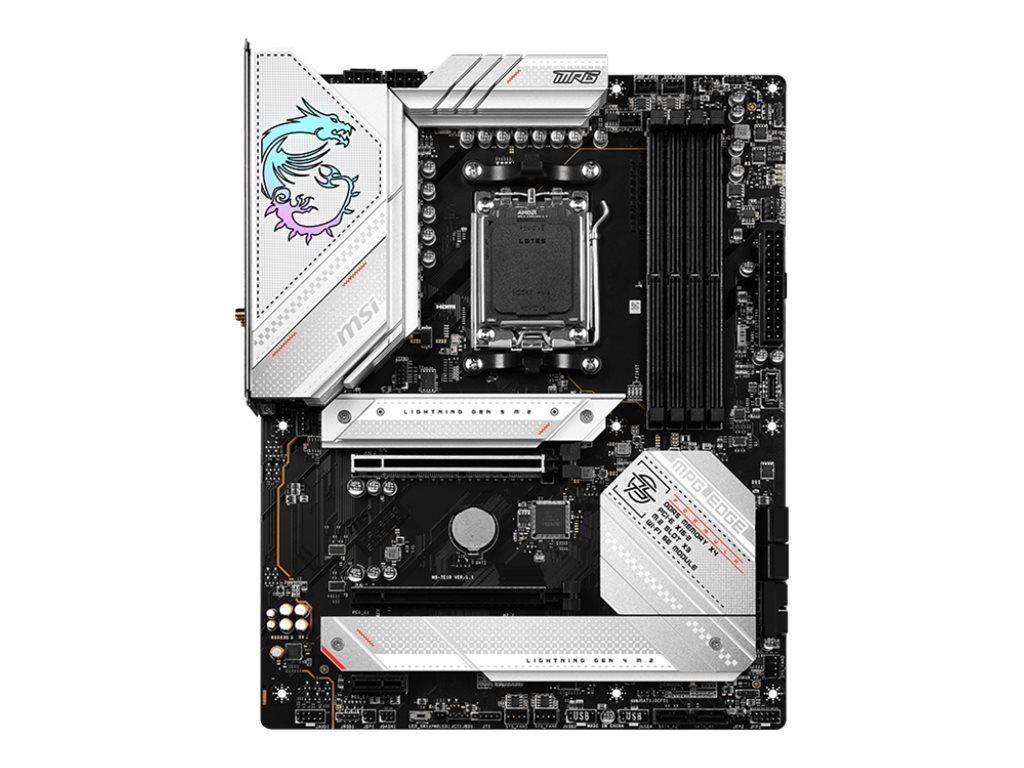

MSI MPG B650 EDGE WIFI - motherboard - ATX - Socket AM5 - AMD B650

SKU MPG B650 EDGE WIFI
Product Description:MSI MPG B650 EDGE WIFI - motherboard - ATX - Socket AM5 - AMD B650
Product Type:Motherboard - ATX
Chipset Type:AMD B650 / Nuvoton NCT6687D-R
Processor Socket:1 x Socket AM5
Compatible Processors:(supports Ryzen 7000 Series)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, unbuffered
06-12-2024
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:AMD B650 / Nuvoton NCT6687D-R
Processor Socket:Socket AM5
Max Processors Qty:1
Compatible Processors:(supports Ryzen 7000 Series)
Supported RAM
Max Size:128 GB
Technology:DDR5
Bus Clock:4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, AMD EXPO technology, A-XMP support, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC4080
Compliant Standards:High Definition Audio
LAN
Network Controller:Dragon RTL8125BG
Network Interfaces:2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x2 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (PCIe 4.0 x4 mode) ¦ 1 x M.2 socket (PCIe 5.0 x4 mode)
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2
Interfaces:1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 2 x USB 2.0 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x SPDIF out
Internal Interfaces:1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header
Power Connectors:24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ACPI 6.4 support, SMBIOS 3.4 support, Multilingual BIOS
Hardware Features:4K resolution support, flash BIOS button, Windows 11 compatible, MSI Mystic Light, MSI Core Boost, pre-mounted I/O shield, MSI Steel Armor, 14+2+1 Phase Power Design, 6 Layer PCB, 2oz Copper PCB, Extended Heatsink Design, M.2 Shield FROZR, Enlarged Chipset Heatsink, double side M.2 Shield FROZR, Water Pump Header, DIY Friendly Design, Surface Mount Technology (SMT), MSI Audio Boost 5
Miscellaneous
Included Accessories:Wi-Fi aerial, 2 x EZ M.2 clips, cable stickers, 2 x M.2 Hex screws
Cables Included:2 x Serial ATA cable
Compliant Standards:DisplayPort 1.4, RED 2014/53/EU, Directive 2014/35/EU, EMC 2014/30/EU, ErP 2009/125/EC, ROHS Directive 2011/65/EU
Width:24.384 cm
Depth:30.48 cm
vis mere
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
  • Supports AMD Ryzen 7000 series desktop processors
  • Supports DDR5 memory, up to 6000+ MHz (OC)
  • Enhanced power design - DRPS 14+2+1 VRM power, Core Boost, Memory Boost
  • Premium thermal solution - extended heatsink, MOSFET thermal pads rated for 7 W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB - 6-layer PCB made by 2oz thickened copper and server grade level material
  • 2.5G LAN and AMD Wi-Fi 6E solution - upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning fast game experience - PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
  • DIY friendly design - flash BIOS button, pre-installed I/O Shield, Steel Armor
  • Audio Boost 5 - reward your ears with studio grade sound quality for the most immersive gaming experience




The technical details come from 3rd party. edgemo is not responsible for any errors.
