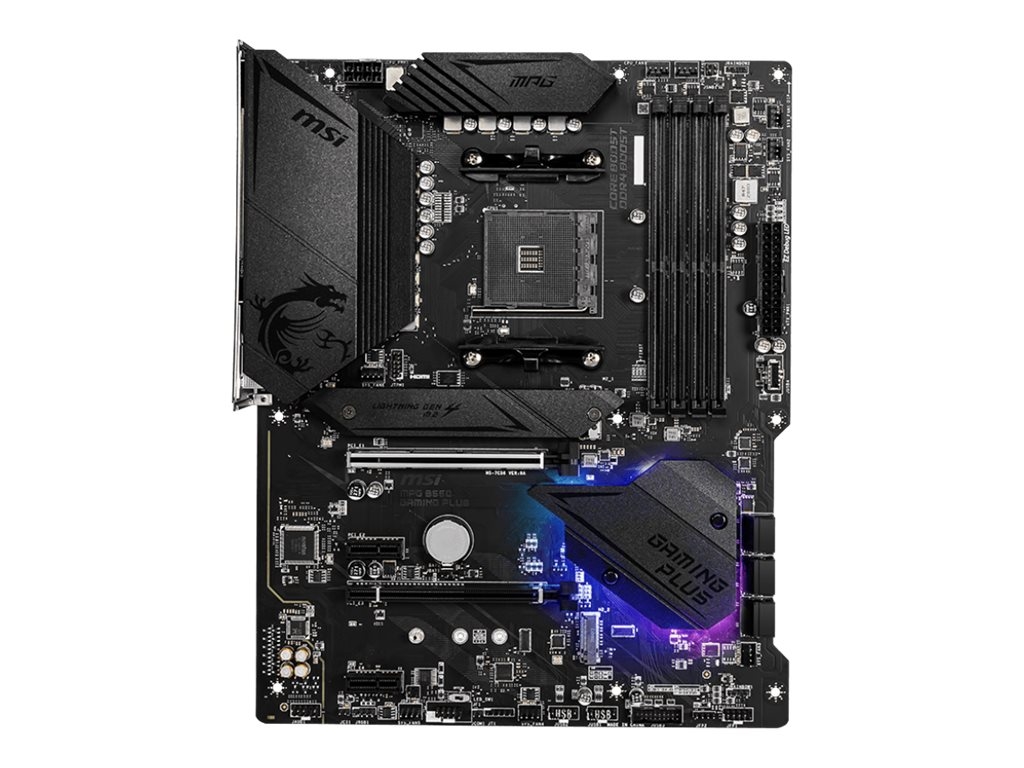

Printers & POSMSI MPG B550 GAMING PLUS - motherboard - ATX - Socket AM4 - AMD B550
SKU MPG B550 GAMING PLUS
| Product Description: | MSI MPG B550 GAMING PLUS - motherboard - ATX - Socket AM4 - AMD B550 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B550 / Nuvoton NCT6687 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B550 / Nuvoton NCT6687 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC892 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer |
| Hardware Features: | AMD CrossFireX technology support, MSI Audio Boost, Debug LED, MSI Mystic Light, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot |
| Miscellaneous | |
| Included Accessories: | Case badge |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
The MPG series brings out the advanced performance for gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention.
- Supports advanced processors with BIOS update
- Supports DDR4 memory
- Lightning-fast game experience
- Enhanced power design
- Premium thermal solution
- High-performance system for a non-stop gaming experience
- Pre-installed I/O shielding for better EMI protection and more convenience for installation
- Flash BIOS button with optmized Clear CMOS function
The technical details come from 3rd party. edgemo is not responsible for any errors.
