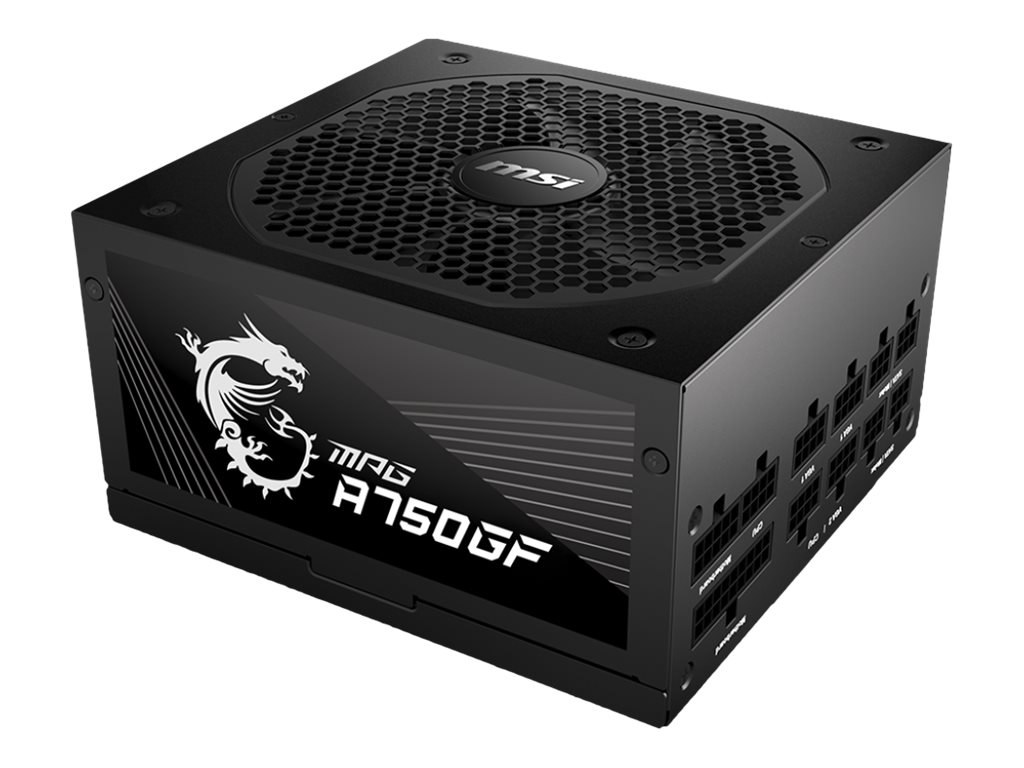

MSI MPG A750GF - power supply - 750 Watt

SKU MPG A750GF
Product Description:MSI MPG A750GF - power supply - 750 Watt
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V / EPS12V
80 PLUS Certification:80 PLUS Gold
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V
Power Capacity:750 Watt
08-06-2026
  • Specifications
  • Description
General
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V / EPS12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Frequency Required:47 - 63 Hz
Power Output Connectors Details:1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power ¦ 6 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage:+3.3, +5, ±12 V
Power Capacity:750 Watt
Output Current:+3.3V - 22 A ¦ +5V - 22 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 35 A ¦ +12VVGA2 - 35 A
Efficiency:90%
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Gold
Miscellaneous
Cooling System:140 mm fan
Features:Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, DC-DC technology, fully modular, LLC Half Bridge Topology
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Width:15 cm
Depth:16 cm
Height:8.6 cm
vis mere
  • Fully modular cable design
  • Flat cable equipment
  • High efficiency
  • Active PFC design
  • Industrial level protection




The technical details come from 3rd party. edgemo is not responsible for any errors.
