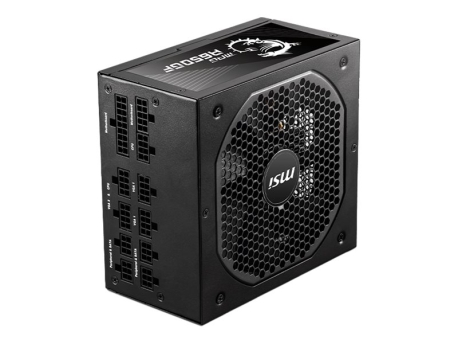

MSI MPG A650GF - power supply - 650 Watt

SKU MPG A650GF

Product Description:	MSI MPG A650GF - power supply - 650 Watt
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V / EPS12V
80 PLUS Certification:	80 PLUS Gold
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	650 Watt

06-01-2025

Login for price

Specifications
Description
Accessories

General
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V / EPS12V
PSU Form Factor:	ATX

Power Device
Input Voltage:	AC 100-240 V
Frequency Required:	47 - 63 Hz
Power Output Connectors Details:	1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	650 Watt
Output Current:	+3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12VMBPH - 25 A ¦ +12VCPU - 25 A ¦ +12VVGA1 - 30 A ¦ +12VVGA2 - 30 A
Efficiency:	90%
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Cooling System:	140 mm fan
Features:	Overpower protection, over voltage protection, short-circuit protection, undervoltage protection, over current protection, overheat protection, fully modular, DC-DC technology, LLC Half Bridge Topology

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

Dimensions & Weight
Width:	15 cm
Depth:	16 cm
Height:	8.6 cm

Fully modular cable design
Flat cable equipment
High efficiency
Active PFC design
Industrial level protection

The technical details come from 3rd party. edgemo is not responsible for any errors.
