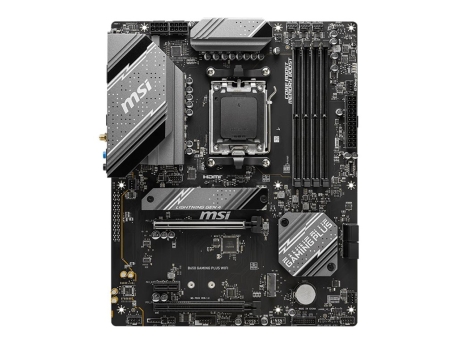

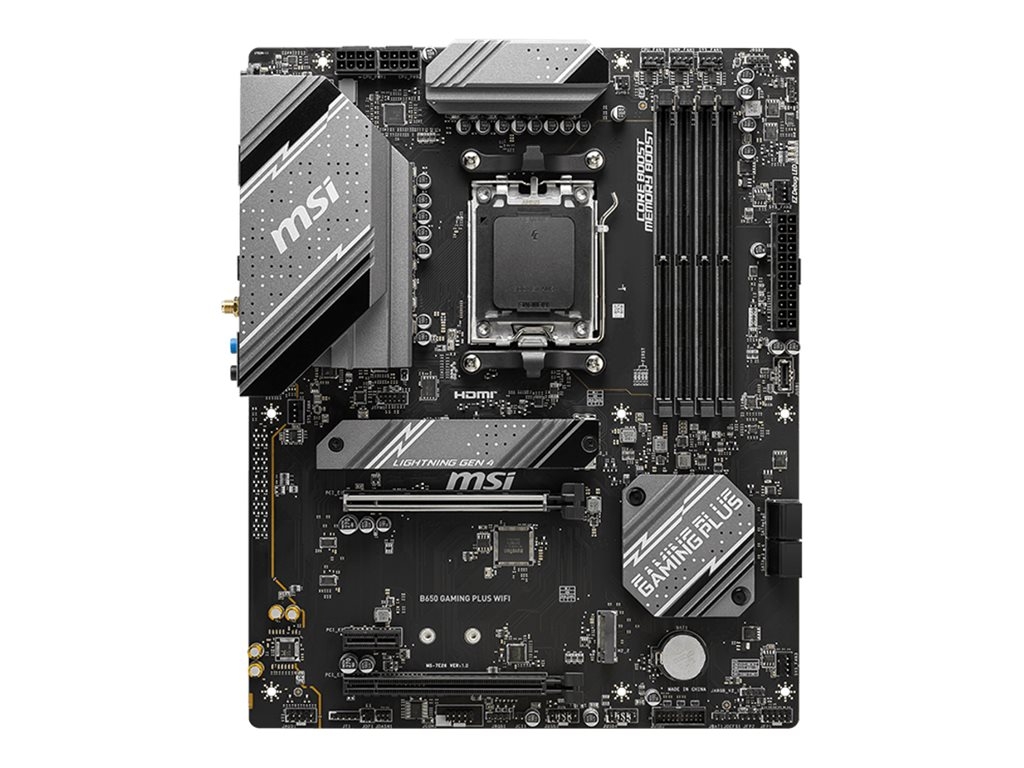

Printers & POSMSI - motherboard - ATX - Socket AM5 - AMD B650
SKU B650 GAMING PLUS WIFI
| Product Description: | MSI - motherboard - ATX - Socket AM5 - AMD B650 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8125BG |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 2 x aerial |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Features: | MSI ClickBIOS 5, M-Flash |
| Hardware Features: | Water Pump Header, Debug LED, flash BIOS button, Extended Heatsink Design, M.2 Shield FROZR, MSI Core Boost, MSI Audio Boost, Digital PWM, MSI Steel Armor, 6 Layer PCB, 2oz Copper PCB, 12+2+1 Phase Power Design, DIY Friendly Design, Surface Mount Technology (SMT) |
| Miscellaneous | |
| Included Accessories: | Wi-Fi aerial, 2 x EZ M.2 clips, IO shield |
| Cables Included: | Serial ATA cable |
| Software Included: | AIDA64 Extreme (60 days trial), MSI Center, Norton 360 Deluxe (60 days trial) |
| Compliant Standards: | DisplayPort 1.4, FCC Part 15 Class B, WEEE, JIS C 0950 |
| Width: | 30.48 cm |
| Depth: | 24.384 cm |
Experience enhanced PC gaming and performance with the MSI B650 GAMING PLUS WIFI motherboard. Designed for enthusiasts, it features advanced connectivity options including HDMI, DisplayPort, and USB-C 3.2 Gen 2x2, allowing seamless connection of a wide range of devices. The Realtek ALC897 codec delivers high definition audio, providing an immersive sound experience for gaming, movie watching, or music listening.
With support for DDR5 SDRAM at speeds up to 6600 MHz (O.C.), this motherboard is equipped to handle demanding applications and multitasking efficiently. Networking is seamless with 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, ensuring fast and reliable connections. Additionally, the motherboard is designed with an extended heatsink, M.2 Shield FROZR, and water pump header for superior cooling, maintaining system stability and peak performance.
With support for DDR5 SDRAM at speeds up to 6600 MHz (O.C.), this motherboard is equipped to handle demanding applications and multitasking efficiently. Networking is seamless with 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E, ensuring fast and reliable connections. Additionally, the motherboard is designed with an extended heatsink, M.2 Shield FROZR, and water pump header for superior cooling, maintaining system stability and peak performance.
- Advanced connectivity with HDMI, DisplayPort, and USB-C 3.2 Gen 2x2
- High definition audio with Realtek ALC897 codec for immersive sound
- Supports DDR5 SDRAM with speeds up to 6600 MHz (O.C.) for efficient data processing
- 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E for high-speed networking
- Superior cooling with extended heatsink design and M.2 Shield FROZR
