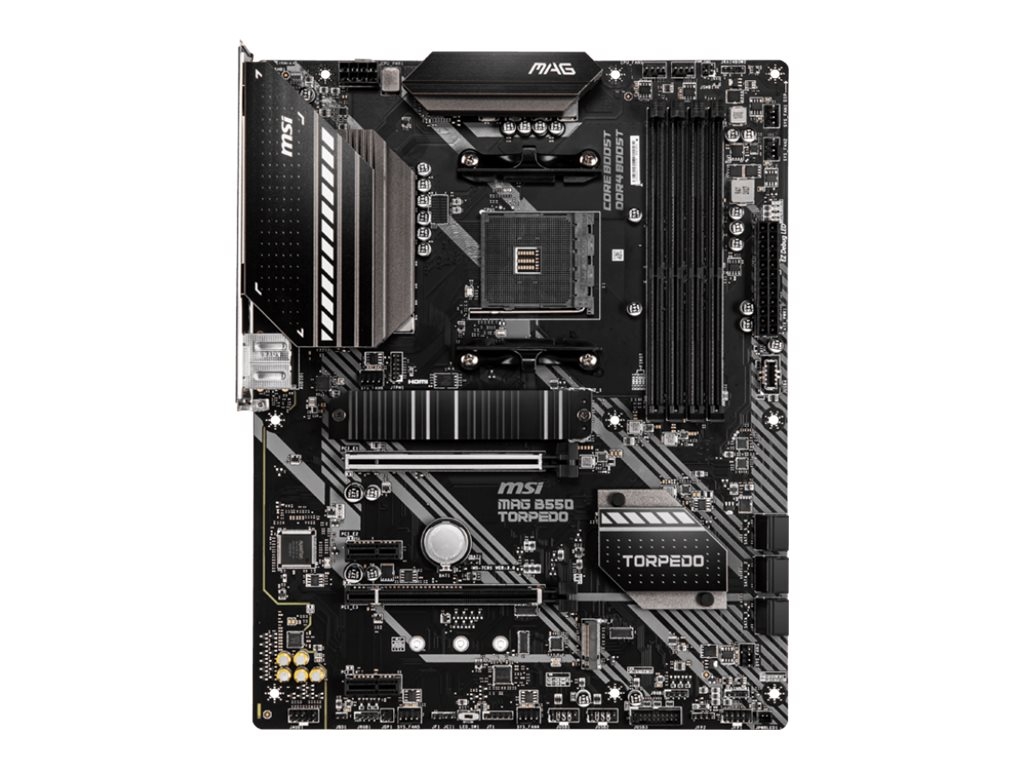

MSI MAG B550 TORPEDO - motherboard - ATX - Socket AM4 - AMD B550
SKU MAG B550 TORPEDO
Product Description: | MSI MAG B550 TORPEDO - motherboard - ATX - Socket AM4 - AMD B550 |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Ryzen (supports Ryzen 5000 & 3000 series (not compatible with Ryzen 5 3400G & Ryzen 3 3200G) and Ryzen 4000 G-series) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 5000 & 3000 series (not compatible with Ryzen 5 3400G & Ryzen 3 3200G) and Ryzen 4000 G-series) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 3066 MHz, 4733 MHz (O.C.), 4866 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
Graphics | |
Max Allocated RAM Size: | 16 GB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC1200 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8125B |
Network Interfaces: | 2.5 Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode (auto turn-off if M.2 is occupied)) ¦ 2 x PCIe 3.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Features: | MSI ClickBIOS 5 |
Hardware Features: | AMD CrossFireX technology support, MSI Audio Boost, 6 Layer PCB, MSI Mystic Light, MSI Steel Armor, Game Boost, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, pre-mounted I/O shield, MSI Core Boost, MSI PCIe Steel Slot, 10+2+1 Phase Power Design |
Miscellaneous | |
Included Accessories: | Case badge |
Cables Included: | 2 x Serial ATA cable |
Software Included: | Drivers & Utilities |
Width: | 30.5 cm |
Depth: | 24.4 cm |
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
- Thermal solution for more cores and higher performance
- M.2 Shield Frozr
- Fully controllable in BIOS and software
- Optimized for water cooling
- Lightning Gen 4 M.2
- Fast and future-ready storage
- Maximum data transfer with 2.5g LAN
- Optimize online gaming traffic for lower latency
