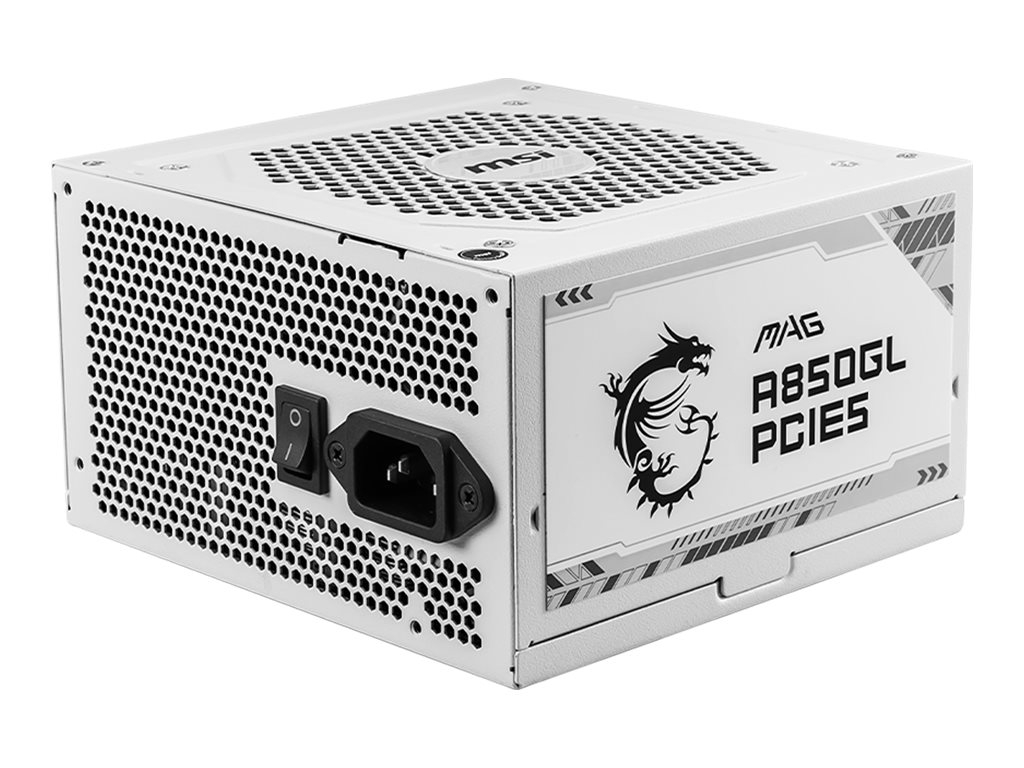

MSI MAG A850GL PCIE5 WHITE - power supply - 850 Watt

SKU MAG A850GL PCIE5 WHITE

Product Description:	MSI MAG A850GL PCIE5 WHITE - power supply - 850 Watt
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
80 PLUS Certification:	80 PLUS Gold
Weight:	2.87 kg
Input Voltage:	AC 100-240 V
Power Capacity:	850 Watt

01-07-2025

Specifications
Description
Accessories

General
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
PSU Form Factor:	ATX
Colour:	White

Power Device
Input Voltage:	AC 100-240 V
Frequency Required:	47 - 63 Hz
Power Output Connectors Details:	1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12+4 pin PCI Express 5.0 power 600 W ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power
Power Capacity:	850 Watt
Output Current:	+3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +12V - 70.5 A ¦ +5VSB - 2.5 A
Efficiency:	90%
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Cables Included:	ATX power cable 60 cm ¦ 16-pin 12VHPWR power cable 60 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 70 cm ¦ 2 x power 15 pin SATA cable ¦ 4 pin internal power cable

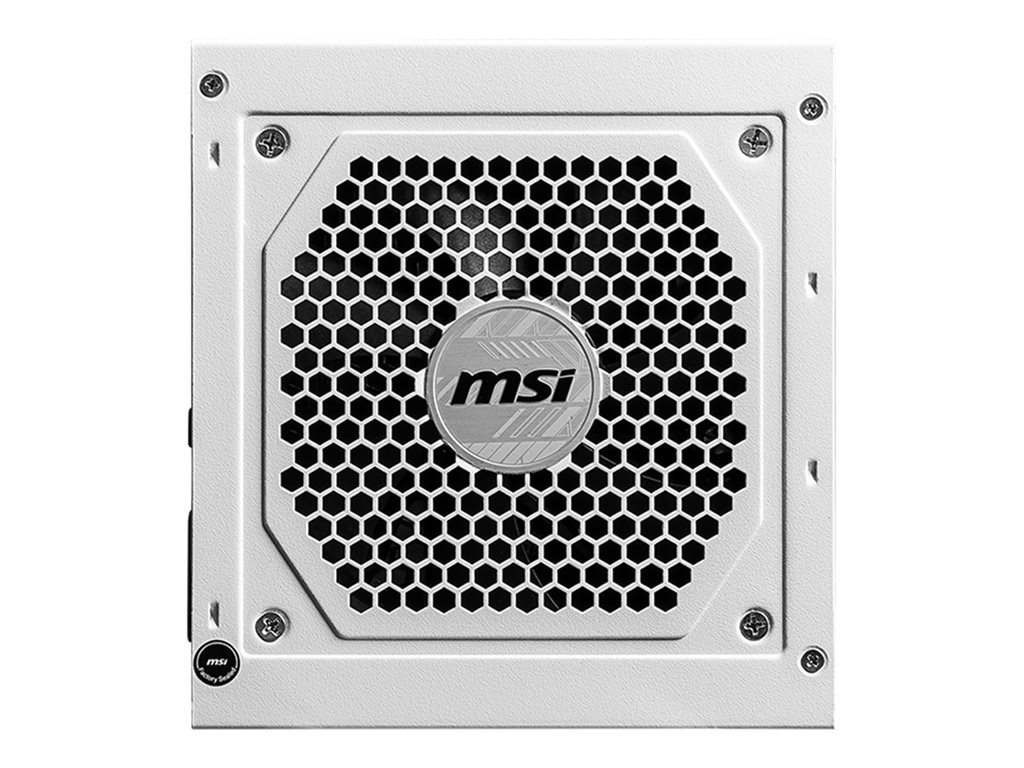

Cooling System:	120 mm fan
Features:	Fluid dynamic bearing cooling fan, fully modular, overpower protection, over voltage protection, short-circuit protection, undervoltage protection, over current protection, overheat protection, LLC Full Bridge Topology, DC-DC technology, single 12V rail

Manufacturer Warranty
Service & Support:	10 years warranty

Dimensions & Weight
Width:	15 cm
Depth:	14 cm
Height:	8.6 cm
Weight:	2.87 kg

vis mere

The MSI MAG A850GL PCIE5 WHITE power supply is designed to meet the needs of demanding PC builds and servers. With its 80 PLUS Gold certification, it delivers up to 90% efficiency, reducing energy consumption and enhancing system performance. The power supply features a 120 mm cooling fan with fluid dynamic bearing, ensuring efficient cooling and optimal operating temperatures. Its fully modular design allows for a clean and organized build, simplifying cable management and installation. The MAG A850GL PCIE5 WHITE also offers comprehensive protection against overcurrent, overheat, overpower, overvoltage, short-circuit, and undervoltage, providing a secure and reliable power solution. With support for a wide range of voltages and connectors, including 24-pin ATX, 8-pin EPS12V, and 12+4-pin PCI Express 5.0, it ensures compatibility with a variety of PC and server configurations, making it a flexible and future-proof choice for your power supply needs.

ATX 3.0 compatible, native PCIe 5.0 connector
Full modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design, industrial-level protection with OVP, OCP, OPP, OTP, SCP, UVP
120 mm fluid dynamic bearing fan
LLC Full Bridge Topology with DC-DC module design
