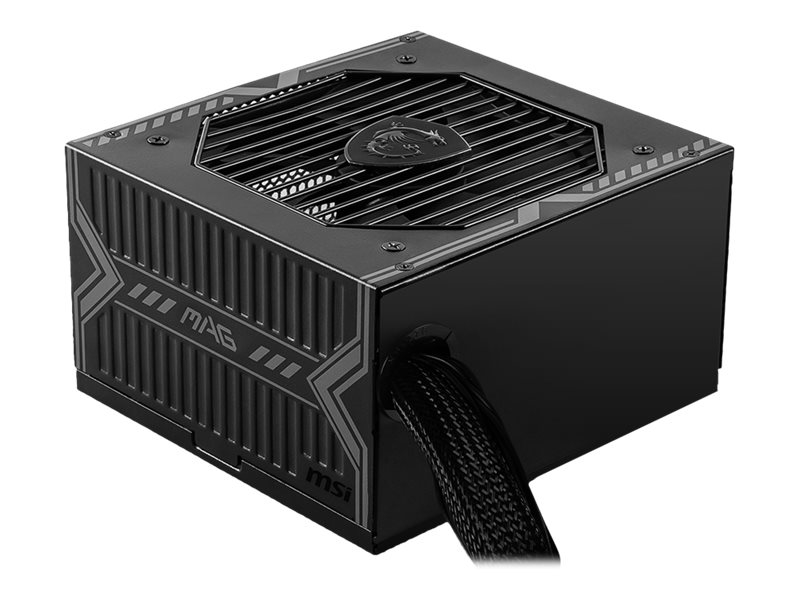

Printers & POSMSI MAG A550BN - power supply - 550 Watt
SKU MAG A550BN
| Product Description: | MSI MAG A550BN - power supply - 550 Watt |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V / EPS12V |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Weight: | 1.59 kg |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V / EPS12V |
| PSU Form Factor: | ATX |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 50 - 60 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connector |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 550 Watt |
| Output Current: | +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12V - 45.5 A |
| Efficiency: | 85% |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Miscellaneous | |
| Cooling System: | 120 mm fan |
| Features: | Overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, single 12V rail, DC-DC technology, non-modular |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 14 cm |
| Height: | 8.6 cm |
| Weight: | 1.59 kg |
MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
- 80 PLUS BRONZE certified
- 120mm low noise fan
- DC to DC circuit design
- Comprehensive circuit protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
