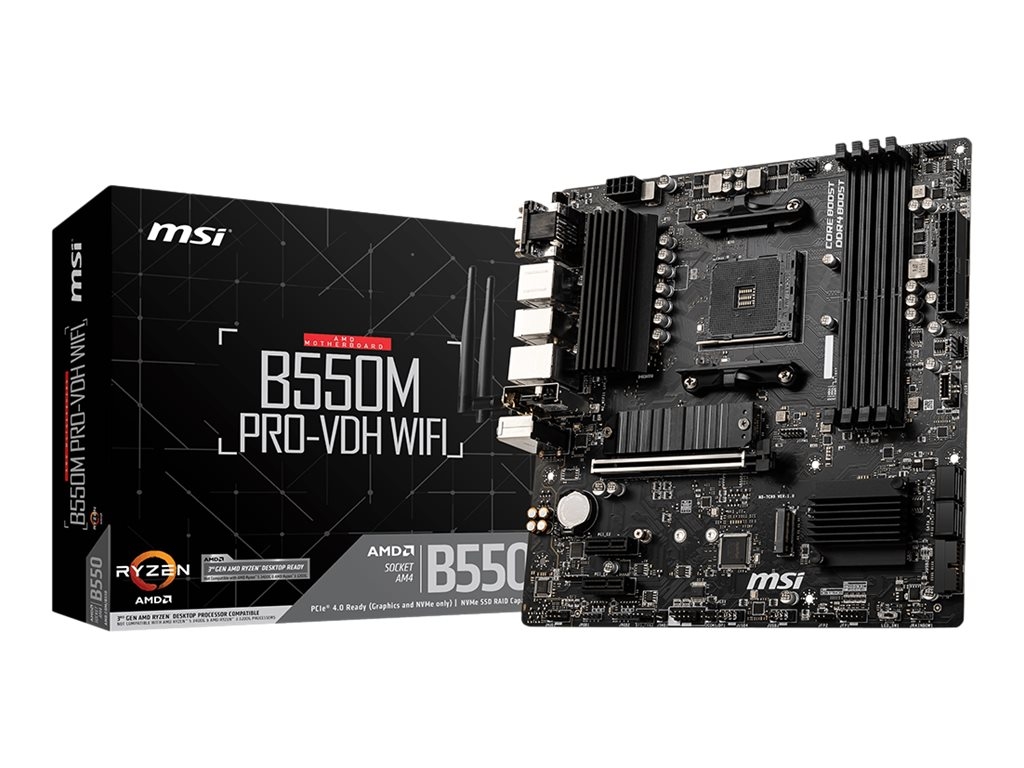

Printers & POSMSI B550M PRO-VDH WIFI - motherboard - micro ATX - Socket AM4 - AMD B550
SKU B550M PRO-VDH WIFI
| Product Description: | MSI B550M PRO-VDH WIFI - motherboard - micro ATX - Socket AM4 - AMD B550 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B550 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support |
| Graphics | |
| Max Allocated RAM Size: | 16 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC892 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111HN / Intel Dual Band Wireless-AC 3168 |
| Network Interfaces: | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| Hardware Features: | MSI Audio Boost, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync |
| Miscellaneous | |
| Included Accessories: | 2 aerials, case badge, I/O back cover |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Lightning fast experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium thermal solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: reward your ears with studio grade sound quality
The technical details come from 3rd party. edgemo is not responsible for any errors.
