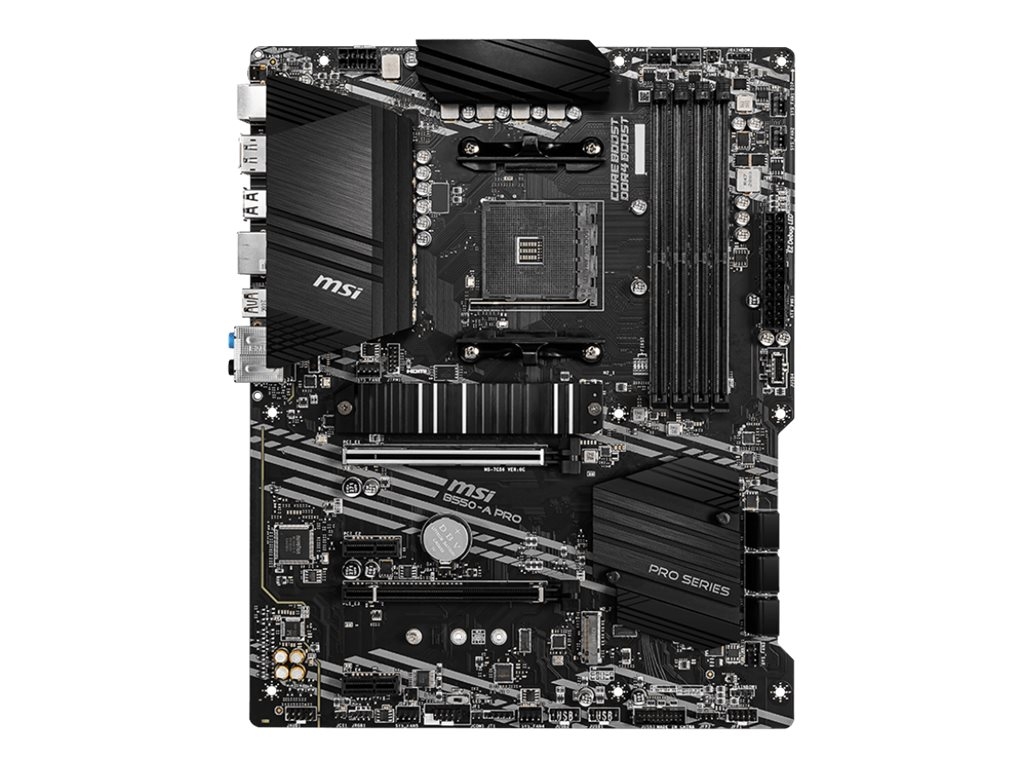

MSI B550-A PRO - motherboard - ATX - Socket AM4 - AMD B550

SKU B550-A PRO
Product Description:MSI B550-A PRO - motherboard - ATX - Socket AM4 - AMD B550
Product Type:Motherboard - ATX
Chipset Type:AMD B550
Processor Socket:1 x Socket AM4
Compatible Processors:Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
01-05-2024
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:AMD B550
Processor Socket:Socket AM4
Max Processors Qty:1
Compatible Processors:Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics)
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 3200 MHz, 3066 MHz
Supported RAM Integrity Check:Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Graphics
Max Allocated RAM Size:2 GB
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC892
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode (auto turn-off if M.2 is occupied)) ¦ 2 x PCIe 3.0 x1
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DisplayPort
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 1 - header ¦ 1 x audio - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
Hardware Features:AMD CrossFireX technology support, Debug LED, Double ESD Protection, 2oz Copper PCB, M.2 Shield FROZR, MSI Core Boost, MSI PCIe Steel Slot, MSI Mystic Light Sync
Miscellaneous
Included Accessories:Case badge, I/O back cover
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities
Width:30.5 cm
Depth:24.4 cm
vis mere
MSI B550-A motherboard helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
  • Support for 3rd Gen AMD Ryzen processors and future AMD Ryzen processors with BIOS update
  • Supports DDR4 memory, up to 4400 (OC) MHz
  • Lightning-fast experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium thermal solution: extended heatsink design with additional choke thermal pad and 7W/mK pad, and M.2 Shield Frozr are built for high-performance system and non-stop works
  • Powerful design: Core Boost, Digital PWM IC, 2oz thickened copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: reward your ears with studio-grade sound quality
  • Multi-GPU: with steel armor PCIe slots
  • Supports 2-way AMD CrossFire




The technical details come from 3rd party. edgemo is not responsible for any errors.
