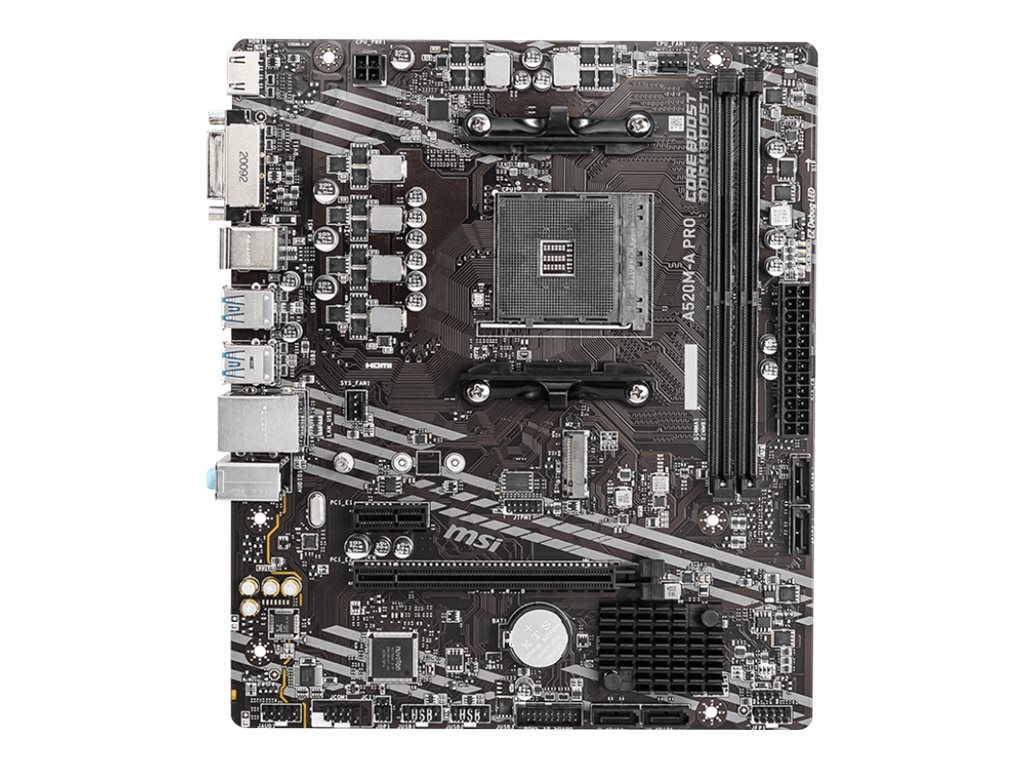

MSI A520M-A PRO - motherboard - micro ATX - Socket AM4 - AMD A520

SKU A520M-A PRO
Product Description:MSI A520M-A PRO - motherboard - micro ATX - Socket AM4 - AMD A520
Product Type:Motherboard - micro ATX
Chipset Type:AMD A520
Processor Socket:1 x Socket AM4
Compatible Processors:Ryzen (supports 3rd Generation Ryzen and Ryzen 4000 G-Series)
Max RAM Size:64 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered
02-01-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - micro ATX
Chipset Type:AMD A520
Processor Socket:Socket AM4
Max Processors Qty:1
Compatible Processors:Ryzen (supports 3rd Generation Ryzen and Ryzen 4000 G-Series)
Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 1866 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3066 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, supported ECC modules operate in non-ECC mode, A-XMP support
Graphics
Max Allocated RAM Size:16 GB
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC892
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe x16 ¦ 1 x PCIe 3.0 x1
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x PS/2 mouse ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x PS/2 keyboard
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header
Power Connectors:24-pin main power connector, 4-pin ATX12V connector
Features
BIOS Features:MSI ClickBIOS 5
Hardware Features:MSI Audio Boost, MSI Core Boost, 2oz Copper PCB, Debug LED, Double ESD Protection
Miscellaneous
Included Accessories:Case badge, I/O back cover
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities
Width:23.6 cm
Depth:20 cm
vis mere
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
  • Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors
  • Supports DDR4 Memory, up to 4600(OC) MHz
  • Turbo M.2
  • Core Boost
  • DDR4 Boost
  • 2oz Thickened Copper PCB
  • Audio Boost
  • Dragon Center




The technical details come from 3rd party. edgemo is not responsible for any errors.
