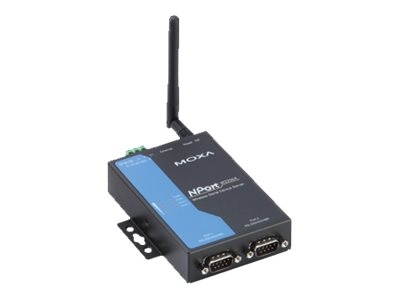

Printers & POSMoxa NPort W2250A - wireless device server Wi-Fi
SKU NP-W2250A
| Product Description: | Moxa NPort W2250A - wireless device server Wi-Fi |
| Device Type: | Wireless device server |
| Form Factor: | External |
| RAM: | 20 MB |
| Ports Qty: | 2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, RS-422, RS-485 |
| OS Required: | SCO OpenServer, UnixWare 7, SCO Unix, FreeBSD, Microsoft Windows NT, UnixWare 2.1, HP-UX 11i, Microsoft Windows 98/ME/2000, Microsoft Windows XP Embedded, Linux 2.4.x, IBM AIX 5.x, SunSoft Solaris 10, Microsoft Windows Embedded CE 6.0, Linux 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Linux 3.x, QNX 4.25, QNX 6 |
- Specifications
- Description
| General | |
| Device Type: | Wireless device server |
| Width: | 7.7 cm |
| Depth: | 11.1 cm |
| Height: | 2.6 cm |
| Weight: | 177 g |
| Processor / Memory / Storage | |
| RAM: | 20 MB |
| Networking | |
| Form Factor: | External |
| Ports Qty: | 2 |
| Connectivity Technology: | Wireless, wired |
| Data Transfer Rate: | 921.6 Kbps |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, RS-422, RS-485 |
| Spread Spectrum Method: | DSSS |
| Network / Transport Protocol: | TCP/IP, UDP/IP, ICMP/IP, SMTP, DHCP, DNS |
| Remote Management Protocol: | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH |
| Max Range Open Space: | 100 m |
| Status Indicators: | Port status, power, signal strength, WLAN |
| Features: | DHCP support, auto-uplink (auto MDI/MDI-X), SNTP support |
| Encryption Algorithm: | MD5, 128-bit WEP, 64-bit WEP, TLS, PEAP, TTLS, TKIP, WPA, WPA2, WPA-PSK, AES-CCMP, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method: | PAP, MS-CHAP, MS-CHAP v.2, Extensible Authentication Protocol (EAP) |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i |
| Aerial | |
| Antenna: | External detachable |
| Antenna Qty: | 1 |
| Expansion / Connectivity | |
| Interfaces: | 2 x RS-232/422/485 - DB-9 ¦ 1 x 100Base-TX - RJ-45 ¦ 1 x aerial |
| Miscellaneous | |
| Cables Included: | 1 x crossover cable |
| MTBF: | 363,327 hours |
| Compliant Standards: | VCCI, EN55022 Class A, FCC Part 15 C, UL 60950-1, EN 60950-1, FCC Part 15 E, ARIB STD-T66, ARIB STD-T33, FCC Part 15 B Class A, EN 300 328, EN 301 893 |
| Power | |
| Power Device: | External power adapter |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| OS Required: | SCO OpenServer, UnixWare 7, SCO Unix, FreeBSD, Microsoft Windows NT, UnixWare 2.1, HP-UX 11i, Microsoft Windows 98/ME/2000, Microsoft Windows XP Embedded, Linux 2.4.x, IBM AIX 5.x, SunSoft Solaris 10, Microsoft Windows Embedded CE 6.0, Linux 2.6.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Oracle Solaris 10, Linux 3.x, QNX 4.25, QNX 6 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
The NPort W2250A is the ideal choice for connecting your serial devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In infrastructure mode or ad-hoc mode, the NPort W2250A can connect to Wi-Fi networks at offices and factories to allow users to move, or "roam, " between several APs (Access Points), and offer an excellent solution for devices that are frequently moved from place to place.
- Link any serial device to an IEEE 802.11 a/b/g network
- Web-based configuration using built-in Ethernet or WLAN
- Enhanced surge protection for serial, LAN, and power
- Remote configuration with HTTPS, SSH
- Secure data access with WEP, WPA, WPA2
- Built-in WLAN site survey tool
- Fast automatic wireless fast roaming
- Off-line port buffering and serial data log
The technical details come from 3rd party. edgemo is not responsible for any errors.
