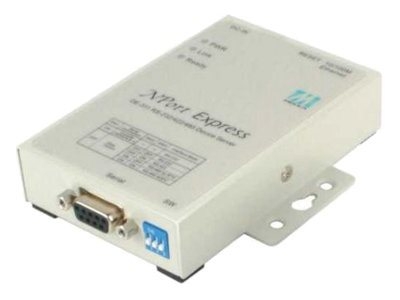

Printers & POSMoxa NPort Express DE-311 - device server
SKU DE-311
| Product Description: | Moxa NPort Express DE-311 - device server |
| Device Type: | Device server |
| Form Factor: | External |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Microsoft Certification: | Works with Windows Vista |
| Weight: | 0.9 kg |
- Specifications
- Description
| General | |
| Device Type: | Device server |
| Weight: | 0.9 kg |
| Networking | |
| Form Factor: | External |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol: | TCP/IP, UDP/IP, ICMP/IP |
| Remote Management Protocol: | Telnet |
| Features: | DHCP support, BOOTP support |
| Expansion / Connectivity | |
| Interfaces: | 1 x RS-232/422/485 - DB-9 ¦ 1 x 100Base-TX - RJ-45 |
| Miscellaneous | |
| Works with Windows Vista: | Software and devices that carry the Works with Windows Vista logo have been tested for baseline compatibility with PC's running. |
| Compliant Standards: | FCC Class B certified, TUV, cUL |
| Power | |
| Power Device: | External power adapter |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 5 - 95% |
"Everything is networked" is rapidly becoming the norm for enterprises the world over, and to keep pace with the trend of networked-based automation, devices must be networked in order to form an automatic data collection system for quality control, production monitoring, or even real-time cost management.
But that doesn't mean your existing equipment and software investment is out of date due to a lack of Ethernet or TCP/IP connectivity. With NPort Express, devices such as CNCs, milling machines, card readers, PLCs, switching machines, sensors, and UPS systems will become powerful tools with network connectivity.
But that doesn't mean your existing equipment and software investment is out of date due to a lack of Ethernet or TCP/IP connectivity. With NPort Express, devices such as CNCs, milling machines, card readers, PLCs, switching machines, sensors, and UPS systems will become powerful tools with network connectivity.
- 3-in-1 serial port
- 10M and 100M Ethernet speeds detected automatically
- 2-wire RS-485 with patented Automatic Data Direction Control (ADDC)
- Built-in 15 KV ESD protection for all serial signals
The technical details come from 3rd party. edgemo is not responsible for any errors.
