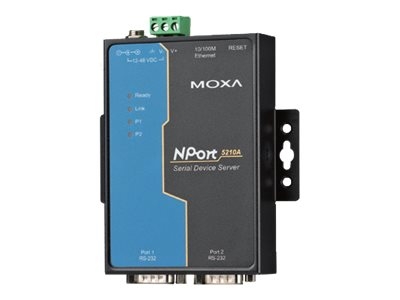

Moxa NPort 5210A - device server

SKU NP-5210A
Product Description:Moxa NPort 5210A - device server
Device Type:Device server
Form Factor:External
Ports Qty:2
Data Link Protocol:Ethernet, Fast Ethernet, RS-232
OS Required:SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, HP-UX 11i, Apple MacOS X 10.3, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Linux Kernel 2.4 or later, Linux Kernel 2.6 or later, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / 7, Microsoft Windows Vista / XP / 7 (64-bit versions)
Power:DC 12 - 48 V
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Device server
Width:7.7 cm
Depth:2.6 cm
Height:11.1 cm
Weight:340 g
Networking
Form Factor:External
Ports Qty:2
Connectivity Technology:Wired
Data Transfer Rate:921.6 Kbps
Data Link Protocol:Ethernet, Fast Ethernet, RS-232
Network / Transport Protocol:TCP/IP, UDP/IP, ICMP/IP, SMTP, BOOTP, DHCP, DNS
Routing Protocol:IGMPv2, IGMP
Remote Management Protocol:SNMP 1, Telnet, HTTP
Features:Flow control, auto-uplink (auto MDI/MDI-X), surge protection, 15 KV Electrostatic Discharge Protection, reset button, Automatic Data Direction Control (ADDC), rugged
Expansion / Connectivity
Interfaces:2 x RS-232 - DB-9 ¦ 1 x 100Base-TX - RJ-45
Miscellaneous
MTBF:847,750 hours
Compliant Standards:IEC 61000-4-5, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-5, FCC, RoHS, UL 60950-1, EN 60950-1, cULus, FCC Part 15 B Class A
Power
Voltage Required:DC 12 - 48 V
Software / System Requirements
Software Included:Drivers & Utilities
OS Required:SCO OpenServer, UnixWare 7, SCO Unix, QNX, FreeBSD, UnixWare 2.1, HP-UX 11i, Apple MacOS X 10.3, IBM AIX 5.x, Microsoft Windows 95/98/ME/NT/2000/XP, SunSoft Solaris 10, Linux Kernel 2.4 or later, Linux Kernel 2.6 or later, Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Microsoft Windows Vista / 7, Microsoft Windows Vista / XP / 7 (64-bit versions)
Manufacturer Warranty
Service & Support:Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:60 °C
Humidity Range Operating:5 - 95% (non-condensing)
vis mere
The NPort 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort 5200A device servers are ultra lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.
  • Speedy 3-step Web-based configuration
  • Surge protection for serial, Ethernet, and power lines
  • COM port grouping and UDP multicast applications
  • Screw connectors for secure installation
  • Dual DC power inputs with power jack and terminal block
  • Versatile TCP and UDP operation modes
