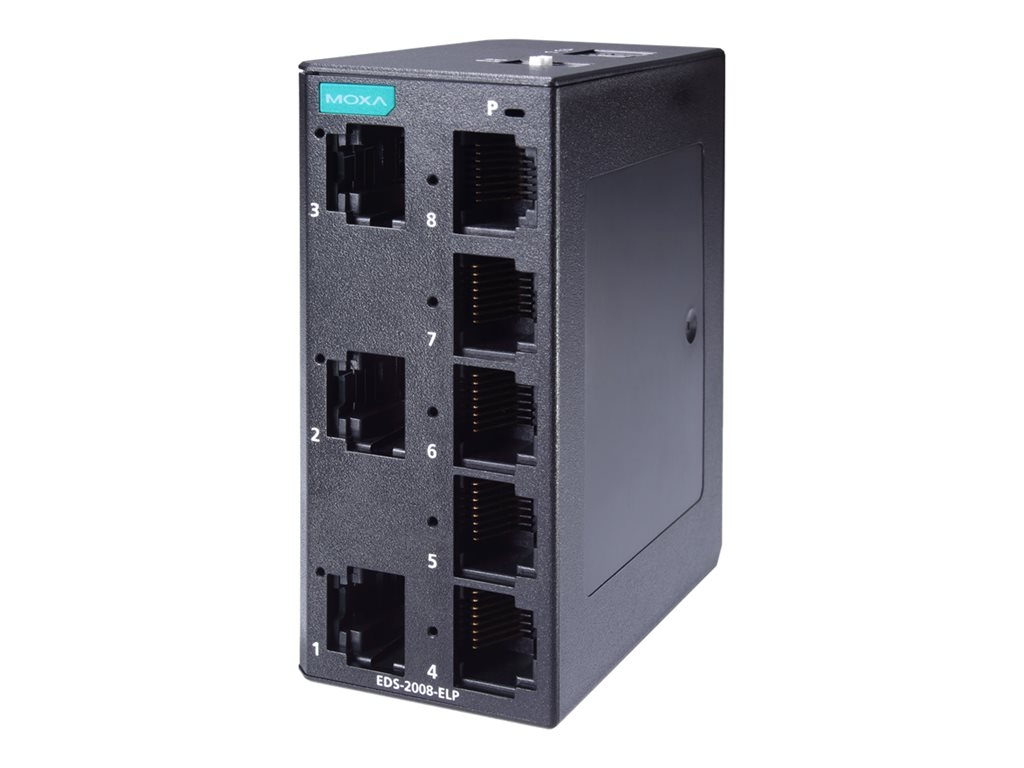

Moxa EDS-2008-ELP Series EDS-2008-ELP - switch - 8 ports - unmanaged
SKU EDS-2008-ELP
Product Description: | Moxa EDS-2008-ELP Series EDS-2008-ELP - switch - 8 ports - unmanaged |
Device Type: | Switch - 8 ports - unmanaged |
Subtype: | Fast Ethernet |
Ports: | 8 x 10/100 |
Capacity: | Packet buffer size: 4 Mbit |
MAC Address Table Size: | 8K entries |
Features: | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), plastic housing, broadcast storm protection |
- Specifications
- Description
General | |
Device Type: | Switch - 8 ports - unmanaged |
Enclosure Type: | DIN rail mountable |
Subtype: | Fast Ethernet |
Ports: | 8 x 10/100 |
Capacity: | Packet buffer size: 4 Mbit |
MAC Address Table Size: | 8K entries |
Features: | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), plastic housing, broadcast storm protection |
Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1p, IEEE 802.3x |
Expansion / Connectivity | |
Interfaces: | 8 x 100Base-TX RJ-45 |
Power | |
Voltage Required: | DC 12/24/48 V |
Features: | Power Polarity Reverse Protect, Overload Current Protection |
Miscellaneous | |
Rack Mounting Kit: | Optional |
MTBF: | 3,472,660 hours |
Compliant Standards: | EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, EN 61000-4-8, UL 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, cULus, FCC Part 15 B Class A, IP40, EN 50121, NEMA TS-2, EN 55022 Class A, IEEE 1588 |
Dimensions & Weight | |
Width: | 3.6 cm |
Depth: | 6.5 cm |
Height: | 8.1 cm |
Weight: | 90 g |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature: | -10 °C |
Max Operating Temperature: | 60 °C |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Min Storage Temperature: | -40 °C |
Max Storage Temperature: | 85 °C |
This series of industrial Ethernet switches has eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the switch also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.
- 10/100BaseTX (RJ45 connector)
- Compact size for easy installation
- QoS supported to process critical data in heavy traffic
- IP40-rated plastic housing
