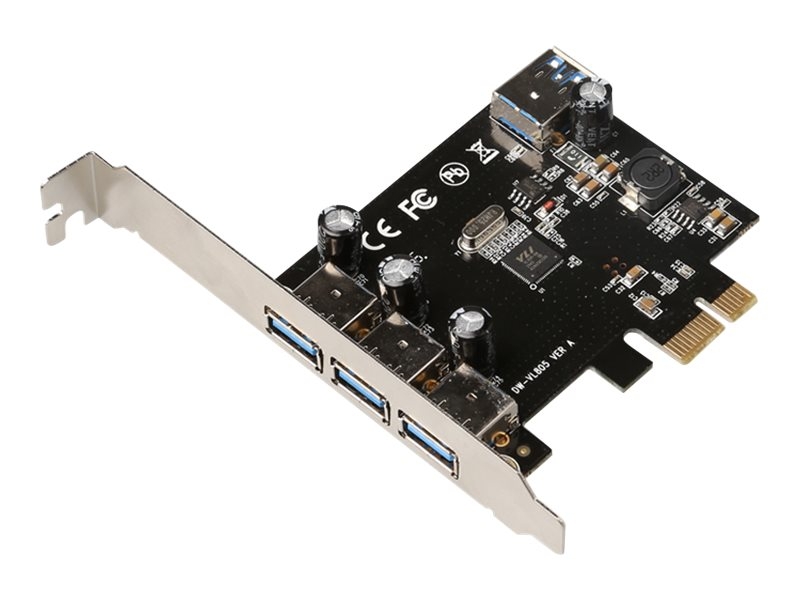

Printers & POSMicroConnect - USB adapter - PCIe 2.0 - USB 3.0 x 3 + USB 3.0 (internal)
SKU MC-USB3.0-F3B1
| Product Description: | MicroConnect - USB adapter - PCIe 2.0 - USB 3.0 x 3 + USB 3.0 (internal) |
| Device Type: | USB adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 2.0 x1 |
| Ports: | USB 3.0 x 3 + USB 3.0 (internal) |
| Dimensions (WxDxH): | 7 cm x 8 cm |
| Weight: | 78 g |
- Specifications
- Description
| General | |
| Device Type: | USB adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | PCI Express 2.0 x1 |
| Networking | |
| Ports: | USB 3.0 x 3 + USB 3.0 (internal) |
| Connectivity Technology: | Wired |
| Data Link Protocol: | USB, USB 2.0, USB 3.0 |
| Data Transfer Rate: | 5 Gbps |
| Compliant Standards: | USB 1.1, USB 2.0, USB 3.0 |
| Processor / Memory | |
| Processor: | VL805 |
| Expansion / Connectivity | |
| Interfaces: | 3 x USB 3.0 - 9 pin USB Type A (external) ¦ 1 x USB 3.0 (internal) |
| Software / System Requirements | |
| Software Included: | Driver |
| OS Required: | Microsoft Windows Vista / XP / 7 / 8 |
| Dimensions & Weight | |
| Depth: | 7 cm |
| Height: | 8 cm |
| Weight: | 78 g |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | 5 °C |
| Max Operating Temperature: | 35 °C |
This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used. System Requirements Linux/ Win7/ Win8/ Win8.1/ Win10 32bit or 64 bit / Windows XP/ Vista.
- Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant to Universal Serial Bus 2.0 Specifications
- Compliant to extensible Host Controller Interface Specification Revision 1.0
- Compliant with PCI Express base specification 2.0
- Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS)
- High-Speed (HS),Full-Speed (FS) and Low-Speed (LS)
- Max. 5V/900mA power output to each USB 3.0 Port
- 4-pin power connector for extra power
- Fully plug ,play and hot plug compatible
The technical details come from 3rd party. edgemo is not responsible for any errors.
