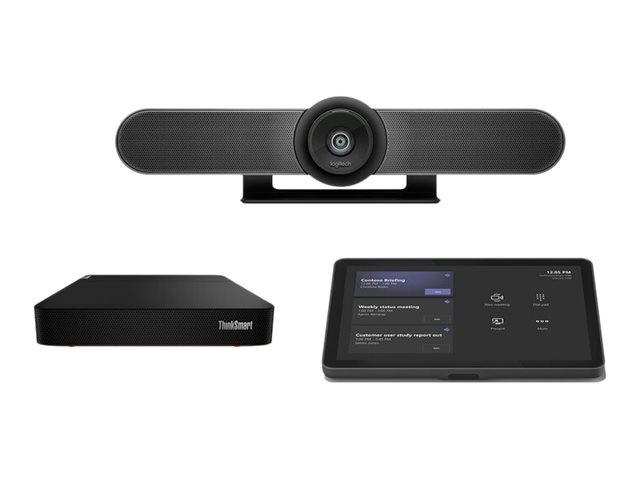

Printers & POSLogitech Small Microsoft Teams Rooms on Windows with Tap + MeetUp + Lenovo ThinkSmart Core - video conferencing kit
SKU TAPMUPMSTLNV
| Product Description: | Logitech Small Microsoft Teams Rooms on Windows with Tap + MeetUp + Lenovo ThinkSmart Core - video conferencing kit |
| Device Type: | Video conferencing kit |
| Kit Content: | Logitech MeetUp, Logitech Tap, Logitech PC Mount, Lenovo ThinkSmart Core |
| Video Input: | Digital video camera - SuperSpeed USB 3.0 |
| Audio Input: | Three microphones - beamforming |
| Audio Output: | Speaker(s) |
| Input Device: | Remote control, 10.1" touchscreen (wireless, wired) |
- Specifications
- Description
| General | |
| Device Type: | Video conferencing kit |
| Kit Content: | Logitech MeetUp, Logitech Tap, Logitech PC Mount, Lenovo ThinkSmart Core |
| Dimensions & Weight Details: | Camera - Width 40 cm Depth 10.4 cm Height 8.5 cm Weight 1.04 kg ¦ Touch screen - Width 24.4 cm Depth 17.9 cm Height 5.8 cm Weight 1.25 kg ¦ Compute system - Width 22.6 cm Depth 20 cm Height 3.75 cm ¦ Mount - Width 16.4 cm Depth 25 cm Height 2.6 cm |
| Video Input | |
| Type: | Digital video camera (colour) - integrated |
| Interface Type: | SuperSpeed USB 3.0 |
| Digital Video Capture Resolution: | 1280 x 720, 1920 x 1080, 3840 x 2160 |
| Video Modes: | 720p, 1080p, 4K |
| Digital Zoom: | 5 |
| Camera Mechanical Design: | Pan / tilt |
| Features: | Auto-framing, RightSight technology |
| Video Output | |
| PC Configuration: | Core i5-1145G7E/8GB RAM/256GB SSD |
| Audio Input | |
| Type: | Three microphones - integrated |
| Microphone Operation Mode: | Beamforming |
| Frequency Response: | 90 - 16000 Hz |
| Audio Output | |
| Type: | Speaker(s) |
| Frequency Response: | 200 - 10000 Hz |
| Input Device | |
| Type: | Remote control, 10.1" touchscreen |
| Connectivity Technology: | Wireless, wired |
| Features: | VESA 100 x 100 mm, 14° display angle, oleophobic coating, anti-glare coating, 1280 x 800 resolution |
| Networking | |
| Connectivity Technology: | Wireless, wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.0 LE |
| Features: | Dual-stream (2x2), security slot (Kensington security lock compatible), Intel vPro Technology support |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | 1 x SuperSpeed USB 3.0 ¦ 1 x USB-C 3.1 ¦ 1 x USB 2.0 ¦ 1 x audio - 3.5mm audio jack ¦ 2 x audio / video - HDMI input ¦ 2 x audio / video - HDMI output ¦ 1 x network - RJ-45 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 |
| Miscellaneous | |
| Cables Included: | 1 x USB cable - 5 m ¦ 1 x USB / Ethernet cable - 10 m |
| Mounting Kit: | Included |
| Software Certification: | Certified for Microsoft Teams Rooms |
| Compliant Standards: | Plug and Play |
| Power | |
| Power Device: | Power supply - external |
| Software / System Requirements | |
| OS Required: | Microsoft Windows |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years ¦ Limited warranty - compute system - 3 years |
| Bundled Services: | 90 days Logitech JumpStart registration |
Transform huddle and small rooms to Teams collaboration spaces with one-touch join, always-on readiness, and center of room control. Systems include everything you need to deploy Teams video conferencing: Logitech MeetUp conferencecam, Lenovo ThinkSmart core mini PC and mount with cable retention, Logitech JumpStart support services, and the Logitech Tap touch controller.
The technical details come from 3rd party. edgemo is not responsible for any errors.
