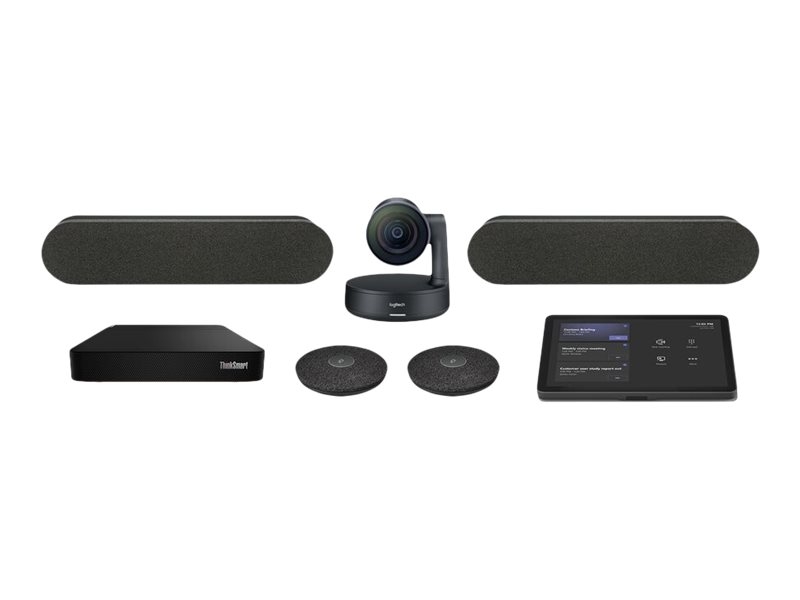

Printers & POSLogitech Large Microsoft Teams Rooms on Windows with Tap + Rally Plus + Lenovo ThinkSmart Core - video conferencing kit
SKU TAPRAPMSTLNV
| Product Description: | Logitech Large Microsoft Teams Rooms on Windows with Tap + Rally Plus + Lenovo ThinkSmart Core - video conferencing kit |
| Device Type: | Video conferencing kit |
| Kit Content: | Logitech Rally Plus, Logitech Tap, Lenovo ThinkSmart Core, Logitech PC Mount |
| Video Input: | Digital video camera - SuperSpeed USB 3.0 |
| Audio Input: | Two microphones - omni-directional |
| Audio Output: | Speaker(s) |
| Input Device: | 10.1" touchscreen, remote control (wireless, wired) |
- Specifications
- Description
| General | |
| Device Type: | Video conferencing kit |
| Kit Content: | Logitech Rally Plus, Logitech Tap, Lenovo ThinkSmart Core, Logitech PC Mount |
| Dimensions & Weight Details: | Camera - Width 15.2 cm Depth 15.2 cm Height 18.25 cm ¦ Touch screen - Width 24.4 cm Depth 17.9 cm Height 5.8 cm Weight 1.25 kg ¦ Compute system - Width 22.6 cm Depth 20 cm Height 3.75 cm ¦ Mount - Width 16.4 cm Depth 25 cm Height 2.6 cm ¦ Speaker - Width 44.9 cm Depth 8 cm Height 10.3 cm ¦ Microphone - Width 10.2 cm Depth 10.2 cm Height 2.1 cm ¦ Hub - Width 10.2 cm Depth 10.2 cm Height 1.6 cm |
| Video Input | |
| Type: | Digital video camera (colour) - desktop |
| Interface Type: | SuperSpeed USB 3.0 |
| Digital Video Capture Resolution: | 3840 x 2160 |
| Video Modes: | 1080p, 1440p, 4K, 720p, 900p |
| Optical Zoom: | 5 |
| Digital Zoom: | 3 |
| Camera Mechanical Design: | Pan / tilt / zoom |
| Features: | RightLight technology, RightSight technology, Wide Dynamic Range (WDR), auto-framing, RightSound technology, Low Light Compensation (LLC), Acoustic Echo Cancellation (AEC), background noise reduction, Voice Activity Detector (VAD), 180° pan, +50° / -90° tilt, 90° diagonal field of view, 82° field of view (horizontal), 52° field of view (vertical) |
| Video Output | |
| PC Configuration: | Core i5-1145G7E/8GB RAM/256GB SSD |
| Audio Input | |
| Type: | Two microphones - external |
| Microphone Operation Mode: | Omni-directional |
| Frequency Response: | 90 - 16000 Hz |
| Audio Output | |
| Type: | Speaker(s) |
| Frequency Response: | 300 - 10000 Hz |
| Total Harmonic Distortion (THD): | <1% |
| Input Device | |
| Type: | 10.1" touchscreen, remote control |
| Connectivity Technology: | Wireless, wired |
| Features: | 14° display angle, 1280 x 800 resolution, anti-glare coating, oleophobic coating, VESA 100 x 100 mm |
| Networking | |
| Connectivity Technology: | Wired, wireless |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.0 LE |
| Features: | Security slot (Kensington security lock compatible), Intel vPro Technology support, dual-stream (2x2) |
| Compliant Standards: | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Interfaces: | 1 x SuperSpeed USB 3.0 ¦ 1 x USB-C 3.1 ¦ 1 x USB 2.0 ¦ 1 x audio - 3.5mm audio jack ¦ 2 x audio / video - HDMI input ¦ 2 x audio / video - HDMI output ¦ 1 x network - RJ-45 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 |
| Miscellaneous | |
| Cables Included: | 1 x USB / Ethernet cable - 10 m |
| Mounting Kit: | Included |
| Software Certification: | Certified for Microsoft Teams Rooms |
| Compliant Standards: | Plug and Play |
| Software / System Requirements | |
| OS Required: | Microsoft Windows |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years ¦ Limited warranty - compute system - 3 years |
| Bundled Services: | 90 days Logitech JumpStart registration |
Transform large rooms to Teams collaboration spaces with one-touch join, always-on readiness, and center of room control. Systems include everything you need to deploy Teams video conferencing.
Logitech Rally Plus features a PTZ camera with 15x HD zoom (5x optical + 3x digital), table and display hubs, and modular audio with two speakers and beamforming mic pods.
With a sleek design, responsive 10.1" screen, and motion sensor for always-on readiness, Logitech Tap brings ease and convenience to Teams Rooms on Windows.
Logitech Rally Plus features a PTZ camera with 15x HD zoom (5x optical + 3x digital), table and display hubs, and modular audio with two speakers and beamforming mic pods.
With a sleek design, responsive 10.1" screen, and motion sensor for always-on readiness, Logitech Tap brings ease and convenience to Teams Rooms on Windows.
- SuperSpeed USB 3.0 and USB-C connectivity for easy integration
- 4K digital video camera with RightLight and RightSound technologies
- Bluetooth 5.0 and 802.11ax for reliable wireless connections
- 10.1" touchscreen with anti-glare and oleophobic coatings
- Certified for Microsoft Teams Rooms, ensuring optimal performance
The technical details come from 3rd party. edgemo is not responsible for any errors.
