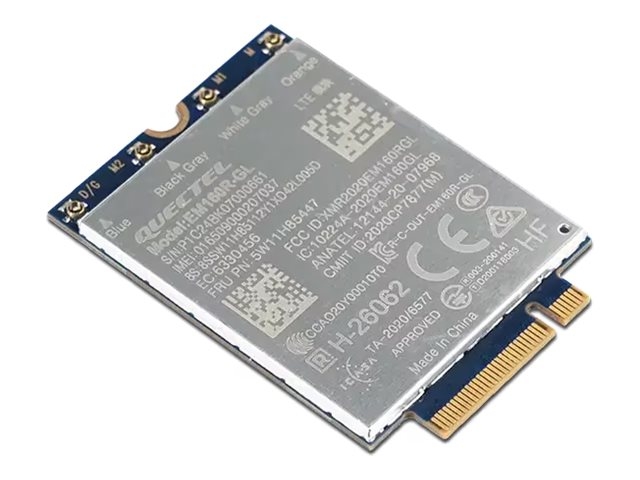

Printers & POSQuectel EM160R-GL - wireless cellular modem - 4G LTE Advanced
SKU 4XC1Q24436
| Product Description: | Quectel EM160R-GL - wireless cellular modem - 4G LTE Advanced |
| Device Type: | Wireless cellular modem - M.2 Card |
| Form Factor: | Internal |
| Mobile Communication Protocol: | FDD LTE, TDD LTE, WCDMA, LTE CAT16 |
| System Requirements: | Windows 10, Windows 11 |
| Dimensions (WxDxH): | 4.2 cm x 3 cm x 0.23 cm |
| Weight: | 6.8 g |
- Specifications
- Description
| General | |
| Device Type: | Wireless cellular modem |
| Form Factor: | Internal |
| Built-in Devices: | GNSS receiver |
| Modem | |
| Bus: | M.2 Card |
| Connectivity Technology: | Wireless |
| Mobile Communication Protocol: | FDD LTE, TDD LTE, WCDMA, LTE CAT16 |
| Networking | |
| Features: | eSIM support |
| Miscellaneous | |
| Compliant Standards: | NCC, ANATEL, SRRC, NAL, CCC, FCC, IC, RCM, PTCRB, GCF, KC, JATE, TELEC, NBTC, IMDA, ICASA |
| Software / System Requirements | |
| OS Required: | Windows 10, Windows 11 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Dimensions & Weight | |
| Width: | 4.2 cm |
| Depth: | 3 cm |
| Height: | 0.23 cm |
| Weight: | 6.8 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 5.3 cm |
| Shipping Depth: | 14.4 cm |
| Shipping Height: | 17.7 cm |
| Environmental Parameters | |
| Min Operating Temperature: | -25 °C |
| Max Operating Temperature: | 75 °C |
| Humidity Range Operating: | 5 - 95% |
Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
The technical details come from 3rd party. edgemo is not responsible for any errors.
