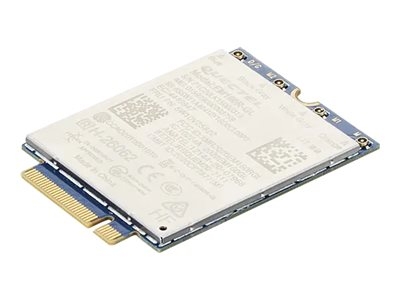

Printers & POSQuectel EM160R-GL - wireless cellular modem - 4G LTE Advanced
SKU 4XC1D69579
| Product Description: | Quectel EM160R-GL - wireless cellular modem - 4G LTE Advanced |
| Device Type: | Wireless cellular modem - M.2 Card |
| Form Factor: | Internal |
| Max Transfer Rate: | 1 Gbps |
| Mobile Communication Protocol: | UMTS, WCDMA, HSUPA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE |
| Mobile Band: | W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8 |
| Dimensions (WxDxH): | 4.2 cm x 3 cm x 0.23 cm |
- Specifications
- Description
| General | |
| Device Type: | Wireless cellular modem |
| Form Factor: | Internal |
| Modem | |
| Bus: | M.2 Card |
| Connectivity Technology: | Wireless |
| Max Transfer Rate: | 1 Gbps |
| Mobile Band: | W-CDMA B1/B2/B5/B8 / LTE B1/B12/B13/B14/B17/B18/B19/B2/B20/B25/B26/B28/B29/B3/B30/B32/B38/B39/B4/B40/B41/B42/B43/B46/B48/B5/B66/B7/B8 |
| Mobile Communication Protocol: | UMTS, WCDMA, HSUPA, HSPA+, DC-HSDPA, LTE Advanced, FDD LTE, TDD LTE |
| Miscellaneous | |
| Compliant Standards: | WHQL, CCC, FCC, PTCRB, GCF |
| Dimensions & Weight | |
| Width: | 4.2 cm |
| Depth: | 3 cm |
| Height: | 0.23 cm |
| Weight: | 6.8 g |
| Environmental Parameters | |
| Min Operating Temperature: | -40 °C |
| Max Operating Temperature: | 85 °C |
| Compatibility Information | |
| Designed For: | (WWAN-ready): ¦ Lenovo ThinkPad P14s Gen 2 20VX, 20VY ¦ Lenovo ThinkPad P15 Gen 2 20YQ, 20YR ¦ Lenovo ThinkPad P15s Gen 2 20W6, 20W7 ¦ Lenovo ThinkPad T14 Gen 2 20W0, 20W1 ¦ Lenovo ThinkPad T15 Gen 2 20W4, 20W5 |
Quectel EM160R-GL is an LTE-A Cat 16 module in an M.2 form factor which is designed to meet the 3GPP Release 14 specification. It supports maximum downlink rates of 1 Gbps and uplink rates of 150 Mbps.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
EM160R-GL is designed for the global market and covers nearly all the mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo), while integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android and optional built-in eSIM) allow the module to support a wide range of applications such as industrial routers, home gateways, STB, industrial laptops, consumer laptops, industrial PDAs, rugged tablet PCs, and digital signage.
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
