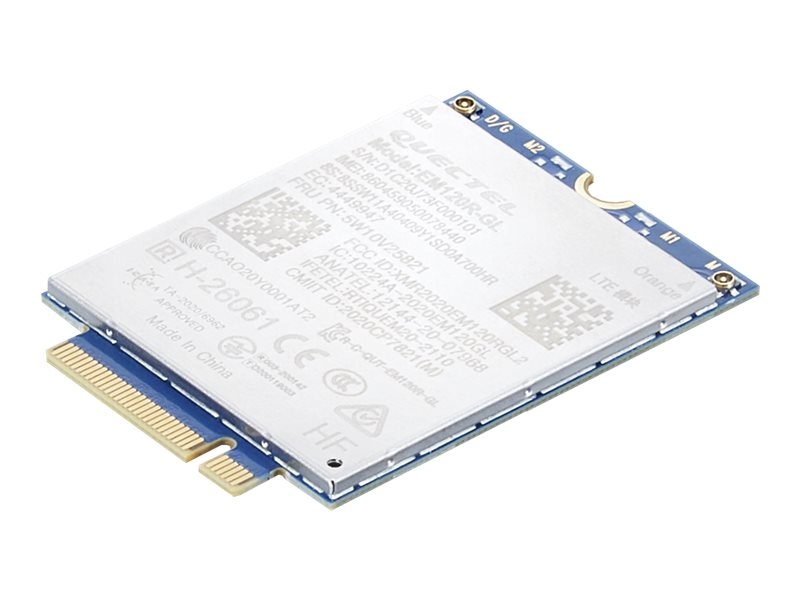

Printers & POSQuectel EM120R-GL - wireless cellular modem - 4G LTE Advanced
SKU 4XC1D51445
| Product Description: | Quectel EM120R-GL - wireless cellular modem - 4G LTE Advanced |
| Device Type: | Wireless cellular modem - M.2 Card |
| Form Factor: | Internal |
| Max Transfer Rate: | 600 Mbps |
| Mobile Communication Protocol: | LTE Advanced |
| Dimensions (WxDxH): | 4.2 cm x 3 cm x 0.23 cm |
| Weight: | 6.8 g |
- Specifications
- Description
| General | |
| Device Type: | Wireless cellular modem |
| Form Factor: | Internal |
| Modem | |
| Bus: | M.2 Card |
| Connectivity Technology: | Wireless |
| Max Transfer Rate: | 600 Mbps |
| Mobile Communication Protocol: | LTE Advanced |
| Networking | |
| Features: | 2x2 MIMO technology, built-in GNSS receiver |
| Miscellaneous | |
| Compliant Standards: | FCC, ANATEL, TELEC, JATE, RCM, sDoC, KC, NCC, IC, ICASA, IFETEL |
| Package Type: | OEM |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Dimensions & Weight | |
| Width: | 4.2 cm |
| Depth: | 3 cm |
| Height: | 0.23 cm |
| Weight: | 6.8 g |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 5.3 cm |
| Shipping Depth: | 14.4 cm |
| Shipping Height: | 17.7 cm |
| Shipping Weight: | 70 g |
| Environmental Parameters | |
| Min Operating Temperature: | -25 °C |
| Max Operating Temperature: | 75 °C |
| Compatibility Information | |
| Designed For: | Lenovo ThinkPad X1 Carbon Gen 9 20XW (WWAN upgradable), 20XX (WWAN upgradable) |
EM120R-GL is an LTE-A category 12 module in an M.2 form factor designed in accordance with the 3GPP Release 14 specification which supports maximum downlink rates of 600 Mbps and uplink rates of 150 Mbps.
EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage.
EM120R-GL is designed for the global market and covers nearly all mainstream carriers worldwide. The module supports Qualcomm IZat location technology Gen9 (GPS, GLONASS, BeiDou and Galileo) and integrated GNSS greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.
A rich set of internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/built-in eSIM (optional) allow the module to serve a wide range of applications such as industrial routers, home gateways, STB, consumer and industrial laptops, industrial PDAs, rugged tablet PCs, and digital signage.
- Supports DFOTA
- Supports DTMF
- Supports MIMO
- USB 2.0 high-speed interface
- Multi-constellation GNSS receiver
