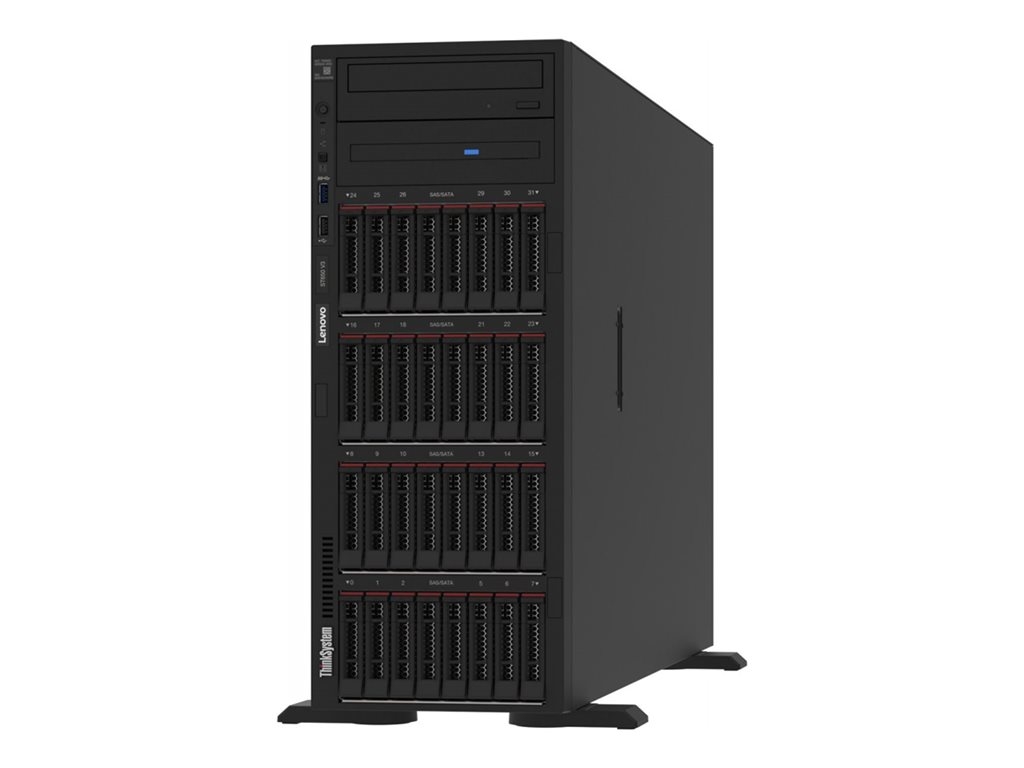

Lenovo ThinkSystem ST650 V3 - tower Xeon Silver 4509Y 2.6 GHz - 32 GB - no HDD

SKU 7D7AA02DEA

Product Description:	Lenovo ThinkSystem ST650 V3 - tower Xeon Silver 4509Y 2.6 GHz - 32 GB - no HDD
Type:	Server - tower
Height (Rack Units):	4U
Localisation:	Region: EMEA
Server Scalability:	2-way
Processor:	1 x Intel Xeon Silver (4th Gen) 4509Y / 2.6 GHz (up to 4.1 GHz, (8-core)
Cache Memory:	22.5 MB L3 Cache

07-01-2025

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Tower - 4U
Built-in Devices:	Led panel, 3 x fans
Embedded Security:	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:	2-way
Front Accessible Bays Qty:	2
Hot-Swap Bays Qty:	8
Localisation:	Region: EMEA

Processor / Chipset
CPU:	Intel Xeon Silver (4th Gen) 4509Y
Clock Speed:	2.6 GHz
Max Turbo Speed:	4.1 GHz
Number of Cores:	8-core
CPU Qty:	1
Max CPU Qty:	2
Chipset Type:	Intel C741

Cache Memory
Installed Size:	L3 Cache - 22.5 MB
Cache Per Processor:	22.5 MB

RAM
Installed Size:	32 GB (installed) / 4 TB (max)
Technology:	DDR5 SDRAM - ECC
Effective Memory Speed:	4400 MHz
Rated Memory Speed:	4800 MHz
Form Factor:	DIMM 288-pin
Slots:	32 (Total) / 31 (empty)
Features:	Registered, Memory Mirroring, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
Configuration Features:	1 x 32 GB

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x RAID - PCIe 3.0 x8
Controller Interface Type:	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name:	ThinkSystem RAID 9350-8i
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD
Buffer Size:	2 GB

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	ASPEED AST2600
Video Memory:	16 MB
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x 10 Gigabit Ethernet
Ethernet Controller:	Broadcom BCM57416
Data Link Protocol:	Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Controller:	XClarity Controller 2 (XCC2) Platinum
Features:	PXE support

Expansion / Connectivity
Bays:	2 (total) / 2 (free) x external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5"
Slots:	2 PCIe 5.0 x16 - full-length, full-height ¦ 1 PCIe 5.0 x8 - full-length, full-height (x8 mode) ¦ 1 PCIe 4.0 x8 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 5.0 x8 - full-length, full-height (2 processors must be installed) ¦ 2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed)
Interfaces:	7 x USB 3.1 Gen 1 (1 front, 4 rear, 2 internal) ¦ 1 x USB 2.0 (1 in front) ¦ 1 x VGA ¦ 1 x serial ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x LAN (10Gigabit Ethernet) - RJ-45

Miscellaneous
Theft/Intrusion Protection:	Chassis intrusion switch
Compliant Standards:	ANSI/UL 62368-1, CCC, FCC Class A certified, IEC 62368-1, (EU) 2019/424, BSMI CNS13438, Class A, CISPR 32 Class A, CISPR 35, CNS 15663, CNS14336-1, CSA C22.2 No. 62368-1, EN 55032 Class A, EN 61000-3-2, EN 62368-1, EN50581-1 (RoHS), EN55024, EN55035, EN61000-3-3, UKCA, VCCI Class A, AS/NZS 62368.1, AS/NZS CISPR 32 Class A, BIS 13252 (Part 1), CMIM, CQC3135, EK1-ITB2000, ErP Lot 9, GB 17625.1, GB/T9254, GB4943.1-2001, GS, HJ 2507-2011, INMETRO, KN32 Class A, KN35, NOM-019, NRCS LOA, TP EAC 037/2016, TP TC 004/2011, TP TC 020/2011, UkrCEPRO

Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Optional
Power Redundancy Scheme:	1+1 (with optional power supply)
Installed Qty:	1
Max Supported Qty:	2
Voltage Required:	AC 100-240 V (50/60 Hz)
Power Provided:	1100 Watt
80 PLUS Certification:	80 PLUS Titanium

Operating System / Software
OS Provided:	No operating system

Sustainability Information
ENERGY STAR Certified:	Yes
ENERGY STAR Version:	4.0

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years - on-site - response time: next business day

Dimensions & Weight
Width:	17.5 cm
Depth:	73.4 cm
Height:	46.2 cm
Weight:	39.1 kg

Dimensions & Weight (Shipping)
Shipping Width:	59.7 cm
Shipping Depth:	99.6 cm
Shipping Height:	37.4 cm

vis mere

The Lenovo ThinkSystem ST650 V3 is engineered for reliability and performance in a tower form factor designed to support various server needs. Featuring an Intel Xeon Silver processor, this server is scalable for up to 2 processors, making it suitable for demanding workloads. With a robust memory architecture that includes up to 32 slots for DDR5 RAM, along with advanced features like Memory Mirroring and ECC data integrity check, it ensures stable performance and resilience under pressure.
Additionally, the ST650 V3 incorporates a RAID storage controller with support for multiple RAID levels, enhancing data protection and usability. Its comprehensive connectivity options, including multiple 10 Gigabit Ethernet ports and USB interfaces, enable efficient integration into existing data environments. With its reliable power supply, extensive compliance standards, and embedded security features like the Trusted Platform Module (TPM 2.0), the Lenovo ThinkSystem ST650 V3 is a steadfast solution for businesses seeking to enhance server capabilities.

Supports Intel Xeon Silver processor for improved performance
Expandable up to 32 DIMM slots for DDR5 RAM
Advanced RAID support for data protection
Multiple 10 Gigabit Ethernet ports for fast networking
Includes Trusted Platform Module (TPM 2.0) for enhanced security
