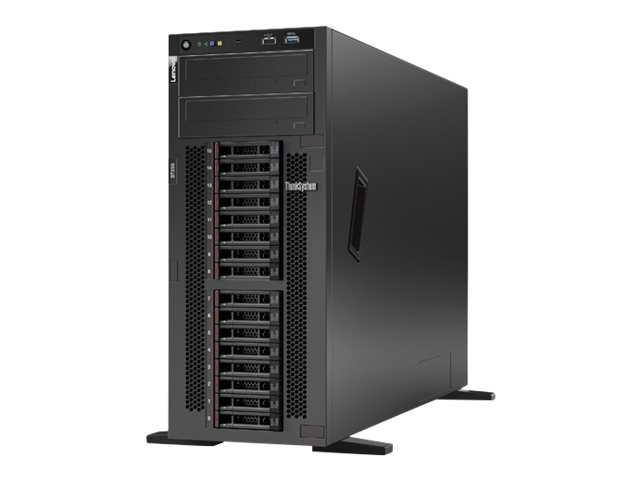

Lenovo ThinkSystem ST550 - tower Xeon Silver 4208 2.1 GHz - 32 GB - no HDD
SKU 7X10A0EZEA
Product Description: | Lenovo ThinkSystem ST550 - tower Xeon Silver 4208 2.1 GHz - 32 GB - no HDD |
Type: | Server - tower |
Height (Rack Units): | 4U |
Localisation: | Region: EMEA |
Server Scalability: | 2-way |
Processor: | 1 x Intel Xeon Silver 4208 / 2.1 GHz (up to 3.2 GHz, (8-core) |
Cache Memory: | 11 MB L3 Cache |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Tower - 4U |
Embedded Security: | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
Server Scalability: | 2-way |
Localisation: | Region: EMEA |
Processor / Chipset | |
CPU: | Intel Xeon Silver 4208 |
Clock Speed: | 2.1 GHz |
Max Turbo Speed: | 3.2 GHz |
Number of Cores: | 8-core |
CPU Qty: | 1 |
Max CPU Qty: | 2 |
Chipset Type: | Intel C621 |
Cache Memory | |
Installed Size: | L3 Cache - 11 MB |
Cache Per Processor: | 11 MB |
RAM | |
Installed Size: | 32 GB (installed) / 768 GB (max) |
Technology: | DDR4 SDRAM - ECC |
Effective Memory Speed: | 2400 MHz |
Rated Memory Speed: | 2933 MHz |
Form Factor: | DIMM 288-pin |
Slots: | 12 (Total) / 9 (empty) |
Features: | Mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, registered, TruDDR4, low-voltage, 6-channel memory architecture, Memory Mirroring, Memory Sparing, Single Device Data Correction (SDDC) |
Configuration Features: | 1 x 16 GB + 2 x 8 GB |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x RAID - PCIe 3.0 x8 |
Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
Storage Controller Name: | ThinkSystem RAID 9350-8i |
Channel Qty: | 8 |
RAID Level: | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60, JBOD |
Buffer Size: | 2 GB |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | Matrox G200 |
Video Memory: | 16 MB |
Video Interfaces: | VGA |
Networking | |
Ethernet Ports: | 2 x Gigabit Ethernet |
Ethernet Controller: | Intel X722 |
Data Link Protocol: | Gigabit Ethernet, Ethernet, Fast Ethernet |
Remote Management Protocol: | IPMI 2.0, SNMP 3, CIM |
Remote Management Controller: | XClarity Controller (XCC) Enterprise |
Features: | Wake on LAN (WoL) |
Expansion / Connectivity | |
Bays: | 2 (total) / 2 (free) x external 5.25" x 1/2H |
Slots: | 1 PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width (2 processors must be installed) ¦ 1 PCIe 3.0 x8 - full-length, full-height |
Interfaces: | 4 x USB 3.0 (1 front, 2 rear, 1 internal) ¦ 5 x USB 2.0 (1 front, 4 rear) ¦ 1 x VGA ¦ 1 x management - RJ-45 ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 |
Miscellaneous | |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
Compliant Standards: | FCC Part 15 A, ICES-003 issue 6 Class A, UL 60950-1, CSA C22.2 No. 60950-1, EN 62368-1:2014, NOM-019, IEC 60950-1, VCCI Class A, AS/NZS CISPR 32 Class A, AS/NZS 60950-1, CCC, GB 4943.1, GB 9254 Class A, BSMI CNS 13438 Class A, BSMI CNS 14336-1, BSMI CNS 15663, KN32 Class A, KN35, CB, EN 55032 Class A, EN 60950-1, EN55024, EN 61000-3-2, EN 61000-3-3, CISPR 32 Class A, TUV GS, EK1-ITB2000, RoHS, Energy-Related Products (ErP) Lot 3, JESL, TR CU 020/2011, TR CU 004/2011, GB 17625.1 |
Power | |
Device Type: | Power supply - hot-plug |
Power Redundancy: | Optional |
Power Redundancy Scheme: | 1+1 (with optional power supply) |
Installed Qty: | 1 |
Max Supported Qty: | 2 |
Voltage Required: | AC 100-240 V (50/60 Hz) |
Power Provided: | 750 Watt |
80 PLUS Certification: | 80 PLUS Titanium |
Operating System / Software | |
OS Provided: | No operating system |
Sustainability Information | |
ENERGY STAR Certified: | Yes |
ENERGY STAR Version: | 2.1 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years - on-site - response time: next business day |
Dimensions & Weight | |
Width: | 17.6 cm |
Depth: | 66 cm |
Height: | 43.8 cm |
Weight: | 36 kg |
Dimensions & Weight (Shipping) | |
Shipping Width: | 57.4 cm |
Shipping Depth: | 98.2 cm |
Shipping Height: | 37.2 cm |
The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
- ENERGY STAR certified for energy efficiency
- Supports extensive expansion with PCIe 3.0 x16 slots
- Multiple USB and Gigabit Ethernet ports for enhanced connectivity
- Up to 12 DIMM slots supporting Memory Mirroring and Sparing
- Intel Xeon Silver processor for high-performance computing
