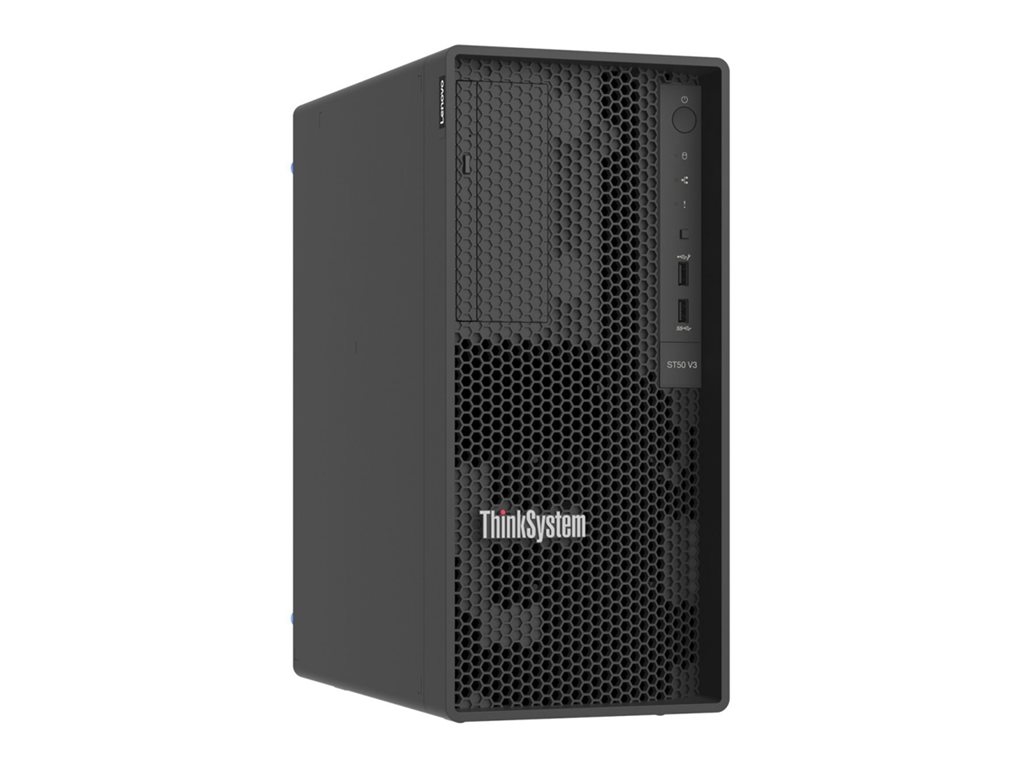

Lenovo ThinkSystem ST50 V3 - tower Xeon E-2414 2.6 GHz - 16 GB - SSD 2 x 960 GB

SKU 7DF3A010EA
Product Description:Lenovo ThinkSystem ST50 V3 - tower Xeon E-2414 2.6 GHz - 16 GB - SSD 2 x 960 GB
Type:Server - tower
Height (Rack Units):5U
Localisation:Region: EMEA
Server Scalability:1-way
Processor:1 x Intel Xeon E-2414 / 2.6 GHz (up to 4.5 GHz, (Quad-Core)
Processor Socket:LGA1700 Socket
In Stock(4)
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Tower - 5U
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:1-way
Internal Bays Qty:3
Localisation:Region: EMEA
Processor / Chipset
CPU:Intel Xeon E-2414
Clock Speed:2.6 GHz
Max Turbo Speed:4.5 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
CPU Socket:LGA1700 Socket
Chipset Type:Intel C266
Cache Memory
Installed Size:12 MB
Cache Per Processor:12 MB
RAM
Installed Size:16 GB (installed) / 128 GB (max)
Technology:DDR5 SDRAM - ECC
Effective Memory Speed:2200 MHz
Rated Memory Speed:2200 MHz
Form Factor:DIMM 288-pin
Slots:4 (Total) / 3 (empty)
Features:Unbuffered
Configuration Features:1 x 16 GB
Hard Drive
Type:SSD
Capacity:2 x 960 GB
Interface Type:SATA
Storage Controller
Type:1 x SATA
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:Matrox G200
Video Memory:16 MB
Video Interfaces:VGA
Networking
Ethernet Ports:2 x Gigabit Ethernet
Ethernet Controller:Broadcom BCM5720
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:XClarity Controller 2 (XCC2) Standart
Features:Wake on LAN (WoL), Teaming support
Expansion / Connectivity
Bays:3 (total) / 1 (free) x internal 3.5"
Slots:1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height ¦ 2 (total) / 2 (free) x PCIe 4.0 x4 - half-length, full-height
Interfaces:5 x USB 3.2 Gen 1 (1 front, 4 rear) ¦ 1 x VGA (1 rear) ¦ 1 x management (1 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x USB 2.0 (1 front) ¦ 1 x serial
Miscellaneous
Theft/Intrusion Protection:Security lock slot (cable lock sold separately), padlock loop
Security Slot Type:Kensington security slot
Compliant Standards:Energy-Related Products (ErP) Lot 9, NIST SP800-131A, NIST SP800-147B, NIST SP800-193, (EU) 2019/424, FIPS 140-2, ASHRAE Class A2, ISO 7779
Power
Device Type:Power supply
Voltage Required:AC 100-240 V (50/60 Hz)
Power Provided:500 Watt
80 PLUS Certification:80 PLUS Gold
Operating System / Software
OS Provided:No operating system
Sustainability Information
ENERGY STAR Certified:Yes
Carbon Footprint:2602 kg carbon emissions
Manufacturer Warranty
Service & Support:Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width:17 cm
Depth:31.5 cm
Height:37.6 cm
Weight:11.96 kg
Dimensions & Weight (Shipping)
Shipping Width:28 cm
Shipping Depth:42 cm
Shipping Height:54 cm
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
Humidity Range Operating:8 - 80%
vis mere
The Lenovo ThinkSystem ST50 V3 is designed for small and medium-sized businesses looking for a reliable server solution. This tower server has a compact form factor that allows for easy placement in office spaces while still offering robust capabilities. With the ability to support a Xeon processor and DDR5 SDRAM, the system is equipped to handle a variety of tasks and workloads efficiently.
Designed with expandability in mind, the server features three internal bays and ample PCIe slots for future enhancements. It is ENERGY STAR certified, emphasizing efficiency and energy savings. Security is also a priority, featuring a padlock loop and a Kensington security slot to protect valuable information and hardware.
  • Compact tower form factor suitable for office environments
  • Supports Intel Xeon processors for efficient performance
  • Three internal bays and multiple PCIe slots for expansion
  • Energy STAR certification for energy efficiency
  • Padlock loop and Kensington security slot for enhanced protection




The technical details come from 3rd party. edgemo is not responsible for any errors.
