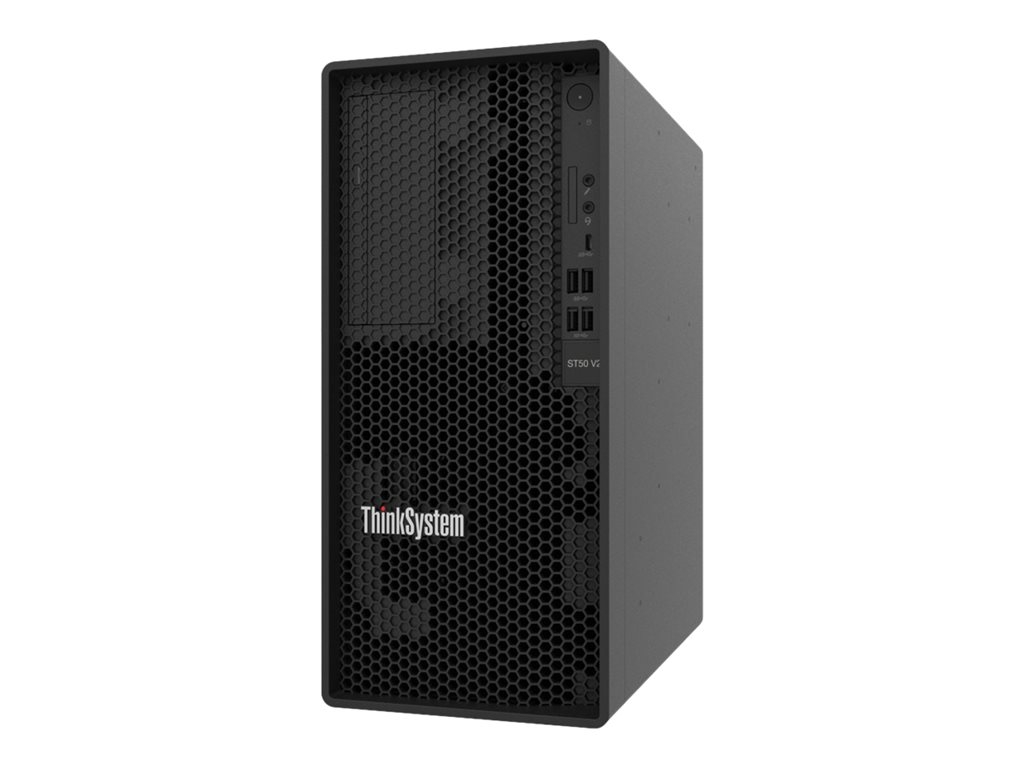

Lenovo ThinkSystem ST50 V2 - tower - Xeon E-2324G 3.1 GHz - 8 GB - SSD 2 x 480 GB

SKU 7D8JA03EEA
Product Description:Lenovo ThinkSystem ST50 V2 - tower - Xeon E-2324G 3.1 GHz - 8 GB - SSD 2 x 480 GB
Type:Server - tower
Height (Rack Units):5U
Localisation:Region: EMEA
Server Scalability:1-way
Processor:1 x Intel Xeon E-2324G / 3.1 GHz (, up to 4.6 GHz, (Quad-Core)
Processor Socket:LGA1200 Socket
14-05-2024
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Tower - 5U
Built-in Devices:1 x rear fan
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:1-way
Internal Bays Qty:2
Localisation:Region: EMEA
Processor / Chipset
CPU:Intel Xeon E-2324G
Clock Speed:3.1 GHz
Max Turbo Speed:4.6 GHz
Number of Cores:Quad-Core
CPU Qty:1
Max CPU Qty:1
CPU Socket:LGA1200 Socket
Chipset Type:Intel C256
Cache Memory
Installed Size:8 MB
Cache Per Processor:8 MB
RAM
Installed Size:8 GB / 128 GB (max)
Technology:DDR4 SDRAM - ECC
Effective Memory Speed:3200 MHz
Rated Memory Speed:3200 MHz
Form Factor:DIMM 288-pin
Slots:4 (Total) / 3 (empty)
Features:Unbuffered
Configuration Features:1 x 8 GB
Hard Drive
Type:SSD
Capacity:2 x 480 GB
Interface Type:SATA 6Gb/s
Features:Read Intensive
Storage Controller
Type:1 x SATA
Controller Interface Type:SATA 6Gb/s
Channel Qty:3
RAID Level:JBOD
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:Intel UHD Graphics P750 Shared Video Memory (UMA)
Video Interfaces:DisplayPort
Networking
Ethernet Controller:Intel I219-LM
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Features:Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15
Compliant Standards:DASH 1.1
Expansion / Connectivity
Bays:1 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 0 (free) x internal 3.5"
Slots:1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)
Interfaces:1 x USB-C 3.2 Gen 2 (1 in front) ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 6 x USB 3.2 Gen 1 (2 front, 4 rear) ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 1 x audio line-out ¦ 1 x VGA (on supplied cable)
Miscellaneous
Theft/Intrusion Protection:Security lock slot (cable lock sold separately), padlock loop
Security Slot Type:Kensington security slot
Compliant Standards:TUV GS, BSMI, IEC 60950-1, GB 17625.1, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM
Power
Device Type:Power supply
Voltage Required:AC 100-240 V (50/60 Hz)
Power Provided:500 Watt
80 PLUS Certification:80 PLUS Platinum
Efficiency:94%
Operating System / Software
OS Provided:No operating system
Manufacturer Warranty
Service & Support:Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width:17 cm
Depth:31.6 cm
Height:37.6 cm
Weight:9.4 kg
Dimensions & Weight (Shipping)
Shipping Width:28 cm
Shipping Depth:42 cm
Shipping Height:54 cm
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
Humidity Range Operating:8 - 80%
vis mere
The ThinkSystem ST50 V2 offers enterprise-class reliability features such as error correcting code (ECC) memory, the onboard RAID controller, and enterprise-class hard drives and network adapters. The server has Intel Active Management Technology (AMT) built-in, along with support for industry-standard management tools. The ST50 V2 runs a wide range of server operating systems and is quiet enough and small enough to fit under or beside an office desk.
  • Improved single-socket processor performance
  • Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 64 GB
  • Three PCIe slots for I/O expansion, one of which has a PCIe Gen4 interface to maximize I/O performance
  • Support for an NVMe M.2 drive for OS boot operations
  • Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity




The technical details come from 3rd party. edgemo is not responsible for any errors.
