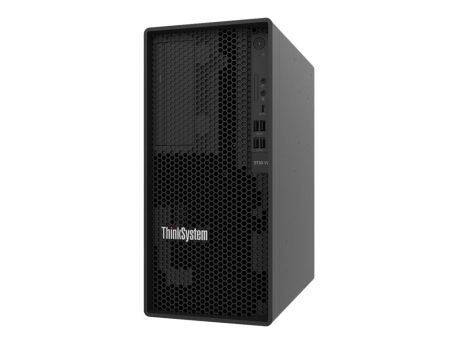

Printers & POSLenovo ThinkSystem ST50 V2 - tower Xeon E-2324G 3.1 GHz - 16 GB - HDD 2 x 1 TB
SKU 7D8JA045EA
| Product Description: | Lenovo ThinkSystem ST50 V2 - tower Xeon E-2324G 3.1 GHz - 16 GB - HDD 2 x 1 TB |
| Type: | Server - tower |
| Height (Rack Units): | 5U |
| Localisation: | Region: EMEA |
| Server Scalability: | 1-way |
| Processor: | 1 x Intel Xeon E-2324G / 3.1 GHz (up to 4.6 GHz, (Quad-Core) |
| Processor Socket: | LGA1200 Socket |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower - 5U |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 1-way |
| Internal Bays Qty: | 2 |
| Localisation: | Region: EMEA |
| Processor / Chipset | |
| CPU: | Intel Xeon E-2324G |
| Clock Speed: | 3.1 GHz |
| Max Turbo Speed: | 4.6 GHz |
| Number of Cores: | Quad-Core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Socket: | LGA1200 Socket |
| Chipset Type: | Intel C256 |
| Cache Memory | |
| Installed Size: | 8 MB |
| Cache Per Processor: | 8 MB |
| RAM | |
| Installed Size: | 16 GB (installed) / 128 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Effective Memory Speed: | 3200 MHz |
| Rated Memory Speed: | 3200 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 3 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 16 GB |
| Hard Drive | |
| Type: | HDD |
| Capacity: | 2 x 1 TB |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 3 |
| RAID Level: | JBOD |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics P750 Shared Video Memory (UMA) |
| Video Interfaces: | DisplayPort |
| Networking | |
| Ethernet Controller: | Intel I219-LM |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features: | Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15 |
| Compliant Standards: | DASH 1.1 |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" ¦ 2 (total) / 0 (free) x internal 3.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode) |
| Interfaces: | 1 x USB-C 3.2 Gen 2 (1 in front) ¦ 2 x USB 3.2 Gen 2 (2 in front) ¦ 6 x USB 3.2 Gen 1 (2 front, 4 rear) ¦ 2 x DisplayPort ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x serial ¦ 1 x audio line-out ¦ 1 x VGA (on supplied cable) |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | TUV GS, BSMI, ANSI/UL 62368-1, IEC 62368-1, ICES-003 issue 7 Class A, CSA C22.2 No. 62368-1, CISPR 32 Class A, IEC 60950-1, VCCI Class A, EN 55032 Class A, KN32 Class A, TP EAC 037/2016, TP TC 004/2011, AS/NZS CISPR 32 Class A, UL 2819, GB 17625.1, GB 4943.1, GB/T9254, CQC3135, HJ 2507-2011, NOM-019, EN 62368-1, EK1-ITB2000, INMETRO, CMIM, Energy-Related Products (ErP) Lot 9 |
| Power | |
| Device Type: | Power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 500 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Efficiency: | 94% |
| Operating System / Software | |
| OS Provided: | No operating system |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 17 cm |
| Depth: | 31.6 cm |
| Height: | 37.6 cm |
| Weight: | 9.4 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 28 cm |
| Shipping Depth: | 42 cm |
| Shipping Height: | 54 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
| Humidity Range Operating: | 8 - 80% |
The ThinkSystem ST50 V2 offers enterprise-class reliability features such as error correcting code (ECC) memory, the onboard RAID controller, and enterprise-class hard drives and network adapters. The server has Intel Active Management Technology (AMT) built-in, along with support for industry-standard management tools. The ST50 V2 runs a wide range of server operating systems and is quiet enough and small enough to fit under or beside an office desk.
- Improved single-socket processor performance
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 64 GB
- Three PCIe slots for I/O expansion, one of which has a PCIe Gen4 interface to maximize I/O performance
- Support for an NVMe M.2 drive for OS boot operations
- Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
The technical details come from 3rd party. edgemo is not responsible for any errors.
