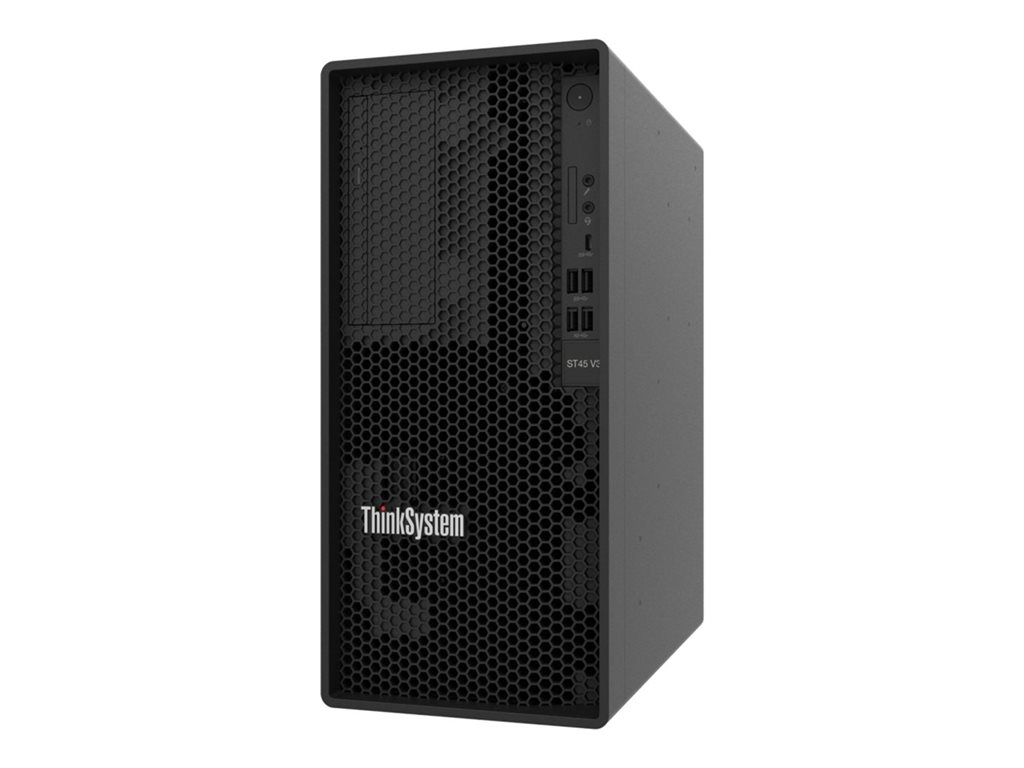

Printers & POSLenovo ThinkSystem ST45 V3 - tower EPYC 4244P 3.8 GHz - 16 GB - HDD 2 x 960 GB
SKU 7DH5A00GEA
| Product Description: | Lenovo ThinkSystem ST45 V3 - tower EPYC 4244P 3.8 GHz - 16 GB - HDD 2 x 960 GB |
| Type: | Server - tower |
| Localisation: | Region: EMEA |
| Server Scalability: | 1-way |
| Processor: | 1 x AMD EPYC 4244P / 3.8 GHz (up to 5.1 GHz, (6-core) |
| Cache Memory: | 32 MB L3 Cache |
| Cache Per Processor: | 32 MB |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 1-way |
| Localisation: | Region: EMEA |
| Processor / Chipset | |
| CPU: | AMD EPYC 4244P |
| Clock Speed: | 3.8 GHz |
| Max Turbo Speed: | 5.1 GHz |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Chipset Type: | AMD PRO 665 |
| Cache Memory | |
| Installed Size: | L3 Cache - 32 MB |
| Cache Per Processor: | 32 MB |
| RAM | |
| Installed Size: | 16 GB (installed) / 64 GB (max) |
| Technology: | DDR5 SDRAM - ECC |
| Effective Memory Speed: | 2600 MHz |
| Rated Memory Speed: | 2600 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 2 (Total) / 1 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 16 GB |
| Hard Drive | |
| Type: | HDD |
| Capacity: | 2 x 960 GB |
| Interface Type: | SATA |
| Storage Controller | |
| Type: | 1 x SATA |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Video Interfaces: | HDMI, DisplayPort |
| Networking | |
| Ethernet Controller: | Realtek RTL8111FP |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 0 (free) x internal 3.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height |
| Interfaces: | 4 x USB 2.0 (4 rear) ¦ 1 x audio line-out (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 front) ¦ 1 x USB-C 3.2 Gen 1 (1 front) ¦ 1 x microphone (1 front) ¦ 1 x headphones (1 front) |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | EN 61000-3-2, GS, EN 61000-3-3, EN55024, CCC, IEC 60950-1, GB 17625.1, CECP, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, KN32, KN35, AS/NZS CISPR 32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CISPR 35, TP TC 004/2011, TP TC 020/2011, CELP, HJ 2507-2011, CNS 15663, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM, FCC-15 (Class A), TUV-GS, IEC/EN 63000, EN55035, (EU) 2019/424, BIS 13252 (Part 1), UkrCEPRO, CNS 15598-1, BSMI CNS 15936 |
| Power | |
| Device Type: | Power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 500 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided: | No operating system |
| Sustainability Information | |
| EPEAT Compliant: | EPEAT Bronze |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 4.0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width: | 17 cm |
| Depth: | 31.6 cm |
| Height: | 37.6 cm |
| Weight: | 8.56 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 28 cm |
| Shipping Depth: | 42 cm |
| Shipping Height: | 54 cm |
The Lenovo ThinkSystem ST45 V3 is designed for high efficiency and reliability in a compact tower form factor. Supporting AMD EPYC processors with a clock speed of 3.8 GHz, this server is equipped with 1.92 TB of hard drive capacity and can handle demanding applications. With two internal 3.5-inch storage bays, it offers flexibility for expansion while ensuring secure data management through an embedded Trusted Platform Module (TPM 2.0) security chip.
In addition to its robust performance, the Lenovo ThinkSystem ST45 V3 meets several environmental standards, being ENERGY STAR certified and EPEAT Bronze compliant. This makes it suitable for organizations striving for sustainability. With a combination of ECC DDR5 memory technology and efficient power supply rated at 500 W with 80 PLUS Platinum certification, it delivers performance and energy savings in your IT infrastructure.
In addition to its robust performance, the Lenovo ThinkSystem ST45 V3 meets several environmental standards, being ENERGY STAR certified and EPEAT Bronze compliant. This makes it suitable for organizations striving for sustainability. With a combination of ECC DDR5 memory technology and efficient power supply rated at 500 W with 80 PLUS Platinum certification, it delivers performance and energy savings in your IT infrastructure.
- Powerful AMD EPYC processor with a clock speed of 3.8 GHz
- 1.92 TB hard drive capacity with two internal storage bays
- Environmentally friendly with ENERGY STAR and EPEAT Bronze certifications
- Includes Trusted Platform Module (TPM 2.0) for enhanced security
- Efficient 500 W power supply with 80 PLUS Platinum certification
The technical details come from 3rd party. edgemo is not responsible for any errors.
