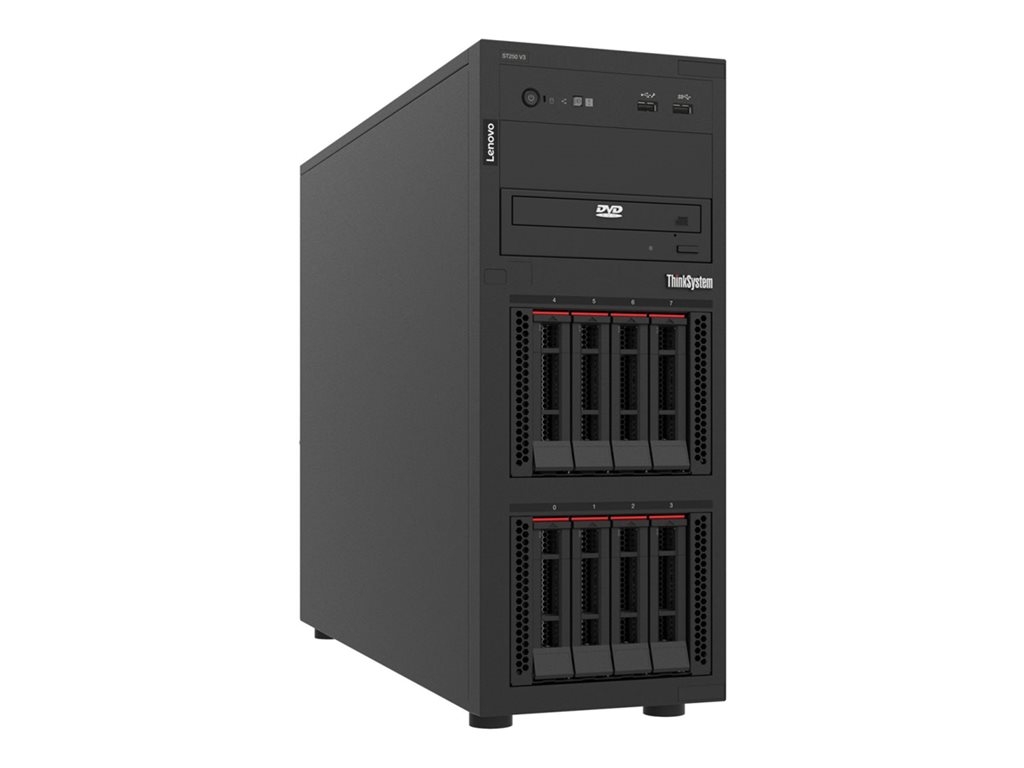

Printers & POSLenovo ThinkSystem ST250 V3 - tower Xeon E-2478 2.8 GHz - 32 GB - no HDD
SKU 7DCEA00GEA
| Product Description: | Lenovo ThinkSystem ST250 V3 - tower Xeon E-2478 2.8 GHz - 32 GB - no HDD |
| Type: | Server - tower |
| Height (Rack Units): | 4U |
| Localisation: | Region: EMEA |
| Server Scalability: | 1-way |
| Processor: | 1 x Intel Xeon E-2478 / 2.8 GHz (up to 5.2 GHz, (8-core) |
| Processor Socket: | LGA1700 Socket |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower - 4U |
| Built-in Devices: | Led panel |
| Embedded Security: | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 2 |
| Hot-Swap Bays Qty: | 8 |
| Localisation: | Region: EMEA |
| Processor / Chipset | |
| CPU: | Intel Xeon E-2478 |
| Clock Speed: | 2.8 GHz |
| Max Turbo Speed: | 5.2 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| CPU Socket: | LGA1700 Socket |
| Chipset Type: | Intel C266 |
| Cache Memory | |
| Installed Size: | 24 MB |
| Cache Per Processor: | 24 MB |
| RAM | |
| Installed Size: | 32 GB (installed) / 128 GB (max) |
| Technology: | DDR5 SDRAM - ECC |
| Effective Memory Speed: | 4800 MHz |
| Rated Memory Speed: | 4800 MHz |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 3 (empty) |
| Features: | Unbuffered |
| Configuration Features: | 1 x 32 GB |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID - PCIe 3.0 x8 |
| Controller Interface Type: | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name: | ThinkSystem RAID 5350-8i |
| Channel Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Matrox G200 |
| Video Memory: | 16 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Broadcom BCM5720 |
| Data Link Protocol: | Ethernet, Gigabit Ethernet, Fast Ethernet |
| Remote Management Controller: | XClarity Controller 2 (XCC2) Platinum |
| Features: | PXE support, Teaming support |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 2 (free) x external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots: | 2 (total) / 2 (free) x PCIe 4.0 x4 - half-length, full-height ¦ 1 PCIe 4.0 x16 - half-length, full-height ¦ 1 PCIe 4.0 x4 - half-length, full-height (x8 mode) |
| Interfaces: | 1 x USB 3.2 Gen 1 (1 in front) ¦ 1 x USB 2.0 (1 in front) ¦ 4 x USB 3.2 Gen 2 ¦ 1 x serial ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | ANSI/UL 62368-1, BIS 13252 (Part 1), CSA C22.2 62368-1, GS, IEC 60950-1, IEC 62368-1, NOM-019, EK1-ITB2000, EN 62368-1, INMETRO, NRCS LOA, UkrCEPRO, CMIM, EN 55032 Class A, TP EAC 037/2016, TP TC 004/2011, TP TC 020/2011, UKCA, EN55032 Class A, EN55035, EN61000-3-11, EN61000-3-12, (EU) 2019/424, IEC/EN 63000, FCC Part 15 A, ICES-003 issue 7 Class A, CISPR 32 Class A, CISPR 35, KN32 Class A, KN35, VCCI Class A, CNS 15936 Class A, CNS 15598-1, CNS 15663 section 5, AS/NZS CISPR 32 Class A, AS/NZS 62368.1, UL2819, Energy-Related Products (ErP) Lot 9, CCC, GB 17625.1, GB 4943.1, GB/T9254, CECP, CELP, CQC3135, HJ 2507-2011 |
| Power | |
| Device Type: | Power supply - hot-plug |
| Power Redundancy: | Optional |
| Power Redundancy Scheme: | 1+1 (with optional power supply) |
| Installed Qty: | 1 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 800 Watt |
| Operating System / Software | |
| OS Provided: | No operating system |
| Sustainability Information | |
| EPEAT Compliant: | EPEAT Bronze |
| ENERGY STAR Certified: | Yes |
| ENERGY STAR Version: | 4.0 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight | |
| Width: | 44.4 cm |
| Depth: | 57.8 cm |
| Height: | 17.6 cm |
| Weight: | 15.81 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 57.9 cm |
| Shipping Depth: | 76.3 cm |
| Shipping Height: | 29.8 cm |
The Lenovo ThinkSystem ST250 V3 stands out as a powerful and secure server solution, designed to meet the demands of modern business environments. With its 8-core Intel Xeon processor and 32 GB of high-speed DDR5 memory, it delivers exceptional performance for a wide range of applications. The server's robust security features, including a Trusted Platform Module (TPM 2.0) security chip, provide a secure foundation for your data, ensuring peace of mind. Additionally, the Lenovo ThinkSystem ST250 V3 is equipped with an 800 W hot-plug power supply, offering reliability and uninterrupted service. Its advanced RAID support, through the ThinkSystem RAID 5350-8i controller, enhances data integrity and performance, making it a versatile choice for businesses looking for a scalable and efficient server solution. ENERGY STAR certification and EPEAT Bronze compliance further underscore its commitment to energy efficiency, making it an environmentally friendly option for your IT infrastructure.
- 32 GB DDR5 SDRAM with 4800 MHz speed for enhanced performance
- Trusted Platform Module (TPM 2.0) security chip for data protection
- 800 W hot-plug power supply for reliable power
- ThinkSystem RAID 5350-8i controller supports multiple RAID levels
The technical details come from 3rd party. edgemo is not responsible for any errors.
