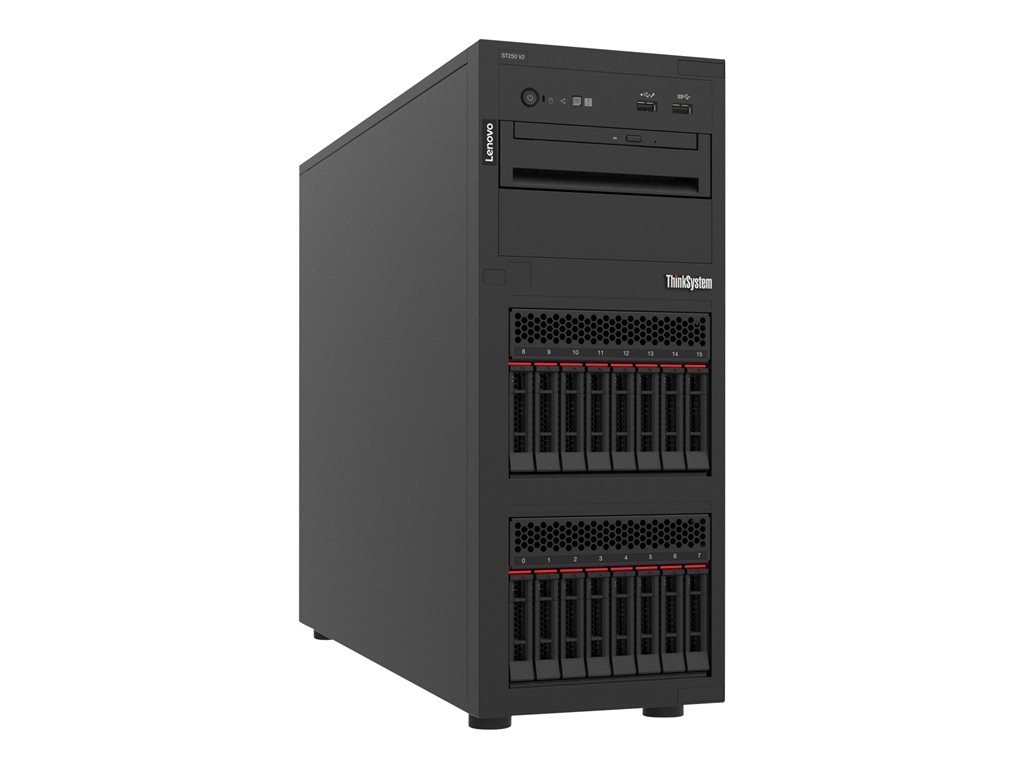

Lenovo ThinkSystem ST250 V2 - tower - Xeon E-2388G 3.2 GHz - 32 GB - no HDD

SKU 7D8FA01NEA
Product Description:Lenovo ThinkSystem ST250 V2 - tower - Xeon E-2388G 3.2 GHz - 32 GB - no HDD
Type:Server - tower
Height (Rack Units):4U
Localisation:Region: EMEA
Server Scalability:1-way
Processor:1 x Intel Xeon E-2388G / 3.2 GHz (, up to 5.1 GHz, (8-core)
Processor Socket:LGA1200 Socket
30-07-2024
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Tower - 4U
Built-in Devices:Led panel
Embedded Security:Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability:1-way
Front Accessible Bays Qty:2
Hot-Swap Bays Qty:8
Localisation:Region: EMEA
Processor / Chipset
CPU:Intel Xeon E-2388G
Clock Speed:3.2 GHz
Max Turbo Speed:5.1 GHz
Number of Cores:8-core
CPU Qty:1
Max CPU Qty:1
CPU Socket:LGA1200 Socket
Chipset Type:Intel C256
Cache Memory
Installed Size:16 MB
Cache Per Processor:16 MB
RAM
Installed Size:32 GB / 128 GB (max)
Technology:DDR4 SDRAM - ECC
Effective Memory Speed:3200 MHz
Rated Memory Speed:3200 MHz
Form Factor:DIMM 288-pin
Slots:4 (Total) / 3 (empty)
Features:Unbuffered, TruDDR4
Configuration Features:1 x 32 GB
Hard Drive
Type:No HDD
Storage Controller
Type:1 x SATA
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:Matrox G200
Video Memory:16 MB
Video Interfaces:VGA
Networking
Ethernet Ports:2 x Gigabit Ethernet
Ethernet Controller:Broadcom BCM5720
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:XClarity Controller (XCC) Enterprise
Features:PXE support, Teaming support
Expansion / Connectivity
Bays:2 (total) / 2 (free) x external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5"
Slots:2 (total) / 2 (free) x PCIe 3.0 x4 - half-length, full-height ¦ 1 PCIe 4.0 x16 - half-length, full-height ¦ PCIe 3.0 x4 - half-length, full-height (x8 mode)
Interfaces:1 x USB 3.2 Gen 1 (1 in front) ¦ 1 x USB 2.0 (1 in front) ¦ 4 x USB 3.2 Gen 2 ¦ 1 x serial ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 3.0 (1 internal)
Miscellaneous
Theft/Intrusion Protection:Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
Security Slot Type:Kensington security slot
Compliant Standards:UL, TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, GS, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, FCC Part 15 A, GREENGUARD, GB 17625.1, CECP, VCCI Class A, EAC, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, LoA, NRCS, CISPR 32 Class A, UL 62368-1, Morocco, EN 55035, TP TC 004/2011, TP TC 020/2011, ASHRAE Class A2, CELP, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, ANSI, TP EAC 037/2016, EN 50581-1, AS/NZS 62368.1, UKCA, ICES-003 issue 7 Class A, NSF/ANSI 426, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, NIST SP800-147B
Power
Device Type:Power supply - hot-plug
Power Redundancy:Optional
Power Redundancy Scheme:1+1 (with optional power supply)
Installed Qty:1
Max Supported Qty:2
Voltage Required:AC 100-240 V (50/60 Hz)
Power Provided:550 Watt
80 PLUS Certification:80 PLUS Platinum
Operating System / Software
OS Provided:No operating system
Sustainability Information
EPEAT Compliant:EPEAT Bronze
ENERGY STAR Certified:Yes
ENERGY STAR Version:3.0
Manufacturer Warranty
Service & Support:Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width:17.6 cm
Depth:57.8 cm
Height:44.4 cm
Weight:23.6 kg
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
Humidity Range Operating:8 - 80%
vis mere
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
  • Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
  • Four PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance
  • New high-speed RAID controllers from Lenovo and Broadcom provide 12 Gb SAS connectivity to the drive backplanes
  • Offers two 5.25-inch media bays with support for optical drives or backup drives
  • Supports two M.2 drives for OS boot support with RAID redundancy
  • The server has two integrated Gigabit Ethernet ports
  • The server offers one PCIe 4.0 slot plus three PCIe 3.0 I/O expansion slots
  • Support for a NVIDIA GPU for enhanced workload performance




The technical details come from 3rd party. edgemo is not responsible for any errors.
