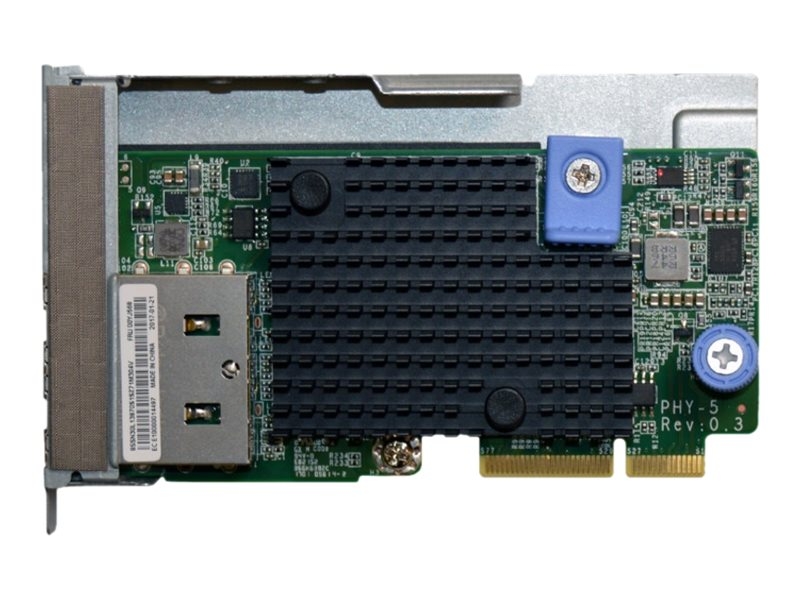

Lenovo ThinkSystem - network adapter - LAN-on-motherboard (LOM) - 10Gb Ethernet x 2

SKU 7ZT7A00548
Product Description:Lenovo ThinkSystem - network adapter - LAN-on-motherboard (LOM) - 10Gb Ethernet x 2
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:LAN-on-motherboard (LOM)
Ports:10Gb Ethernet x 2
Cabling Type:Ethernet 10GBase-T
Data Link Protocol:1GbE, 10GbE
11-03-2025
  • Specifications
  • Description
General
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:LAN-on-motherboard (LOM)
Networking
Ports:10Gb Ethernet x 2
Connectivity Technology:Wired
Cabling Type:Ethernet 10GBase-T
Data Link Protocol:Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate:10 Gbps
Capacity:Virtual functions: 128
Remote Management Protocol:RMON
Features:Flow control, VLAN support, WOL, IPv6 support, QoS, RDMA support, VMDq, PXE support, LSO, RSS, UEFI support, SR-IOV, LACP, Energy Efficient Ethernet, CoS, tagged VLAN, MSI-X, TCP/IP checksum offload, UDP/IP checksum offload, VEPA, NC-SI, VXLAN, NVGRE, VEB, TPH, Advanced Packet Filtering, Intel VT, Jumbo Frames support (up to 9728 bytes)
Compliant Standards:IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg
Processor / Memory
Processor:1 x Intel X557-AT2
Expansion / Connectivity
Interfaces:2 x 1Gb Ethernet/10Gb Ethernet - RJ-45
Miscellaneous
Compliant Standards:ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A
Software / System Requirements
Software Included:Intel PROSet
OS Required:Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3
Manufacturer Warranty
Service & Support:Limited warranty - 1 year
Compatibility Information
Designed For:Lenovo ThinkAgile HX2320 Appliance 7X83 ¦ Lenovo ThinkAgile HX3321 Certified Node 7Y89 ¦ Lenovo ThinkAgile HX3520-G Appliance 7X84 ¦ Lenovo ThinkAgile HX7520 Appliance 7X84 ¦ Lenovo ThinkAgile HX7820 Appliance 7Y95, 7Z08 ¦ Lenovo ThinkAgile HX7821 Certified Node 7Y96, 7Z09 ¦ Lenovo ThinkAgile VX 1U Certified Node 7Y93 ¦ Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12 ¦ Lenovo ThinkAgile VX3320 Appliance 7Y93 ¦ Lenovo ThinkAgile VX3520-G Appliance 7Y94 ¦ Lenovo ThinkAgile VX5520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7520 Appliance 7Y94 ¦ Lenovo ThinkAgile VX7820 Appliance 7Z13 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR950
vis mere
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE/10 GbE networking solution for ThinkSystem customers.




The technical details come from 3rd party. edgemo is not responsible for any errors.
