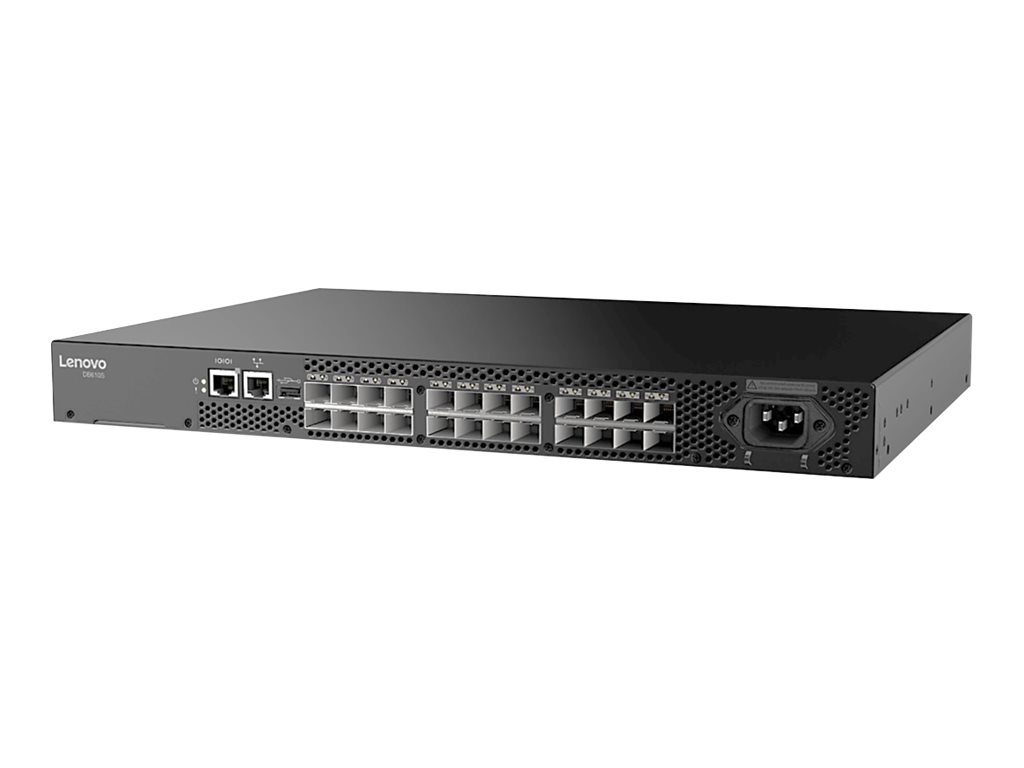

Lenovo ThinkSystem DB610S - switch - 8 ports - Managed - rack-mountable

SKU 6559F4A
Product Description:Lenovo ThinkSystem DB610S - switch - 8 ports - Managed - rack-mountable
Device Type:Switch - 8 ports - Managed
Enclosure Type:Rack-mountable 1U
Subtype:Fibre Channel
Ports:8 x 32Gb Fibre Channel SFP+
Performance:Aggregate throughput: 768 Gbps ¦ Switching latency: 0.9 µs
Capacity:Maximum frame size: 2112 byte ¦ Frame buffers: 2000
In Stock(2)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Switch - 8 ports - Managed
Enclosure Type:Desktop, rack-mountable 1U
Subtype:Fibre Channel
Ports:8 x 32Gb Fibre Channel SFP+
Performance:Aggregate throughput: 768 Gbps ¦ Switching latency: 0.9 µs
Capacity:Maximum frame size: 2112 byte ¦ Frame buffers: 2000
Fibre Channel:FC-DA, FC-FS, FC-GS-4, FC-SB, FC-SB-2, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-BB-6, FC-SB-5, FC-FS-4, FC-SW-6, FC-GS-7, FC-PI-6, FC-GS-8, FC-LS-3, FC-SB-6, FC-SW-7, MIB-FA
Remote Management Protocol:SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SMI-S, SSH, SSH-2, CLI, SCP, SFTP
Encryption Algorithm:SSL
Authentication Method:RADIUS, TACACS+, LDAP, FCAP
Features:Syslog support, IPv6 support, IP address filtering, firmware upgradable, Full Fabric, event log, ACL support, QoS, enviromental monitoring, FEC, RSCN support, FSPF, FDMI, RBAC, DPS, DLS, RCS, SNS, FCAP, POST, NTP, flow mirroring, DFP, 3+1 redundant fans, TIZ, RRD
Expansion / Connectivity
Interfaces:8 x 4/8/16/32Gb Fibre Channel SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial RJ-45 ¦ 1 x USB ¦ 16 x 4/8/16/32Gb Fibre Channel SFP+ Ports on Demand
Power
Power Device:Internal power supply
Power Provided:150 Watt
Voltage Required:AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories:8 x 32 Gbps SW SFP+ transceivers
Cables Included:1 x DB-9 to RJ-45 adapter
Rack Mounting Kit:Included
Compliant Standards:VCCI, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC Part 15 B, UL 60950-1, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438, KN32, KN35, CNS 14336-1, EN 55032
Dimensions & Weight
Width:42.9 cm
Depth:30.7 cm
Height:4.3 cm
Weight:4.2 kg
Manufacturer Warranty
Service & Support:Limited warranty - replacement - 1 year - response time: next business day ¦ Limited warranty - software application support - 3 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:10 - 85% (non-condensing)
Min Storage Temperature:-25 °C
Max Storage Temperature:70 °C
Humidity Range Storage:10 - 90% (non-condensing)
vis mere
The Lenovo ThinkSystem DB610S FC SAN Switch provides exceptional price/performance value by delivering market-leading 32 Gb Gen 6 Fiber Channel technology and combining flexibility, simplicity, and enterprise-class functionality to meet the demands of growing flash-based storage environments.
Designed to enable maximum flexibility and reliability, the ThinkSystem DB610S is a compact, 1U rack-mount FC switch that offers low-cost access to industry-leading Storage Area Network (SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
The DB610S FC SAN Switch features the EZSwitch Setup wizard and can be configured in Access Gateway Mode to simplify deployment. The switch provides full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection.
  • Provides an affordable enterprise-class 32 Gb FC solution with 24 SFP+ ports to support flash-based storage environments
  • Increases performance for demanding workloads with support for 32 Gbps FC links
  • Simplifies configuration and management with easy-to-use EZSwitch Setup
  • Enables "pay-as-you-grow" scalability from single-switch fabric to full-fabric enterprise capabilities with Ports On Demand scalability
  • Optimizes fabric behavior and ensure sufficient bandwidth for mission-critical applications with advanced traffic management capabilities and adaptive networking
  • Provides proactive, non-intrusive, real-time monitoring and alerting of VM health and performance with VM Insight through integrated network sensors
  • Offers dual functionality as either a full-fabric SAN switch or as an NPIV-enabled Access Gateway (requires 24 SFP+ ports be licensed) that enhances fabric scalability and simplifies management
  • Protects existing device investments with auto-sensing 4, 8, 16, and 32 Gbit/sec capabilities and native operation with Brocade fabrics
  • Leverages Fabric Vision technology's powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs
  • Supplies a rich set of standard features at no extra cost, including fabric services, advanced zoning, adaptive networking, full fabric and access gateway operations, and diagnostic tools
  • Expands fabric capabilities with optional licensed functions, including trunking, advanced monitoring and alerting, and long-distance fabrics
  • Allow organizations to seamlessly integrate Gen 6 Fiber Channel networks with the next generation of flash storage - NVMe over Fiber Channel - by being NVMe-ready, without a disruptive rip and replace, to achieve faster application response times and harness the performance of solid state drives for better scalability across virtual data centers with flash storage
  • Accelerates troubleshooting with built-in advanced diagnostics tools featuring ClearLink Diagnostics with D Ports and select adapters from QLogic and Emulex, which helps ensure optical and signal integrity for 16 Gb and 32 Gb Fiber Channel optics and cables
