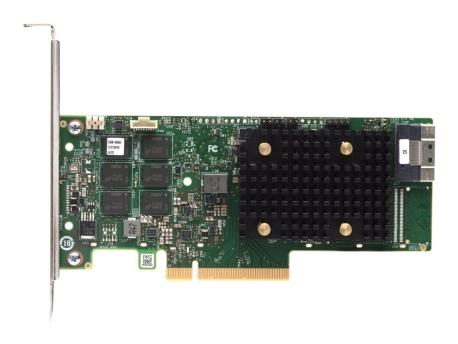

Printers & POSLenovo ThinkSystem 940-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8
SKU 4Y37A09728
| Product Description: | Lenovo ThinkSystem 940-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Bus Type: | PCIe 4.0 x8 |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 4 GB |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Host Bus: | PCIe 4.0 x8 |
| Storage Controller | |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 4 GB |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
| Channel Qty: | 8 |
| Max Storage Devices Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Processor: | Broadcom SAS3908 |
| Expansion / Connectivity | |
| Interfaces: | 1 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | |
| Features: | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SecureBoot, CacheVault flash cache protection, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, SafeStore, consistency check, fast initialisation, Patrol Read |
| Compliant Standards: | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438, IEC/UL 60950 |
| Software / System Requirements | |
| OS Required: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, VMware ESXi 7.0, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Compatibility Information | |
| Designed For: | Lenovo ThinkSystem SR250 7Y51 ¦ Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 7X99 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem ST250 7Y45 ¦ Lenovo ThinkSystem ST50 7Y48 ¦ Lenovo ThinkSystem ST550 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
The ThinkSystem RAID 940 family of PCIe 4.0 SAS RAID controllers are high-performance RAID-on-chip adapters for connectivity to drives internal to the server.
The technical details come from 3rd party. edgemo is not responsible for any errors.
