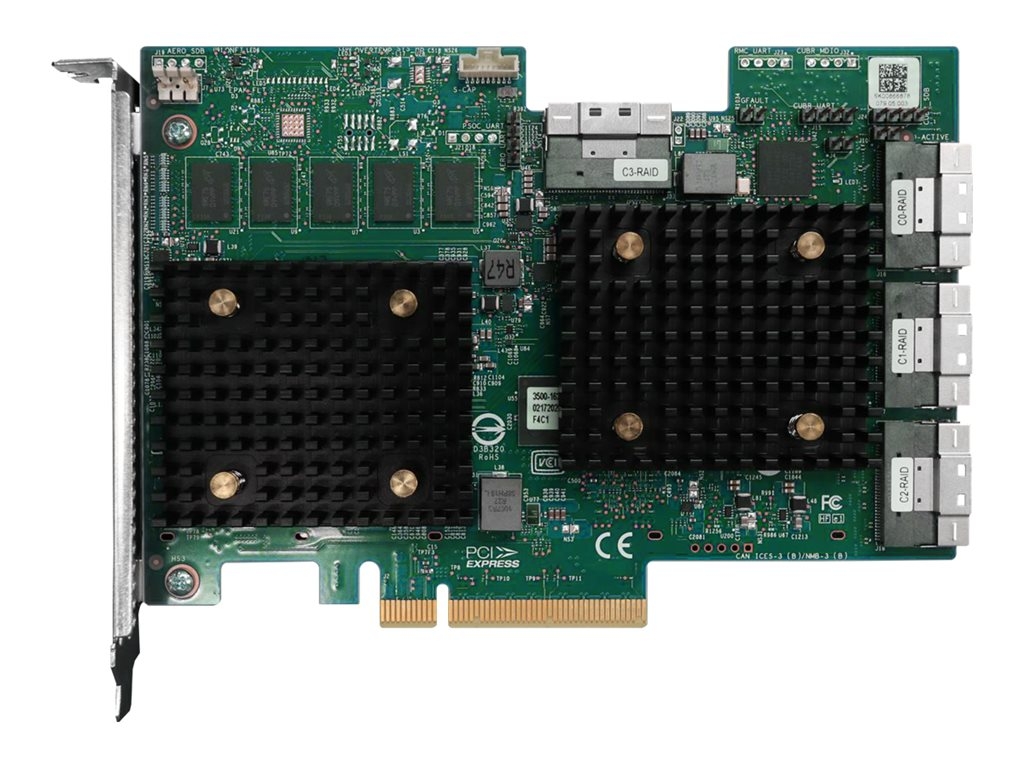

Printers & POSLenovo ThinkSystem 940-32i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8
SKU 4Y37A09733
| Product Description: | Lenovo ThinkSystem 940-32i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card |
| Bus Type: | PCIe 4.0 x8 |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 8 GB |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card |
| Host Bus: | PCIe 4.0 x8 |
| Storage Controller | |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Buffer Size: | 8 GB |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
| Channel Qty: | 32 |
| Max Storage Devices Qty: | 32 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Processor: | Broadcom SAS3916 |
| Expansion / Connectivity | |
| Interfaces: | 4 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | |
| Features: | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), SecureBoot, CacheVault flash cache protection, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, SafeStore, consistency check, fast initialisation, Patrol Read |
| Compliant Standards: | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC CFR47 Part 15 B, VCCI V-3, AS/NZS CISPR 22, CNS 13438, IEC/UL 60950 |
| Software / System Requirements | |
| OS Required: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware ESXi 6.7 update 3, Red Hat Enterprise Linux 7.6, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, SUSE Linux Enterprise Server 12 SP5, VMware ESXi 7.0, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 20 - 80% (non-condensing) |
| Compatibility Information | |
| Designed For: | Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
- MegaRAID FastPath SSD performance acceleration
- MegaRAID flash cache protection
- Auto-resume on array rebuild or array reconstruction after the loss of system power
- Online Capacity Expansion
- Online RAID Level Migration
- Fast initialization for quick array setup
- Consistency check for background data integrity
- Extensive online configuration options and advanced monitoring and event notification
- Patrol read for media scanning and repairing
- Global and dedicated hot spare with revertible hot spare support
- Drive roaming
- MegaRAID SafeStore support for self-encrypting drive (SED) services
- Hardware Secure Boot
- XClarity Provisioning Manager for pre-boot array configuration and management
- XClarity Controller web interface for remote storage management
