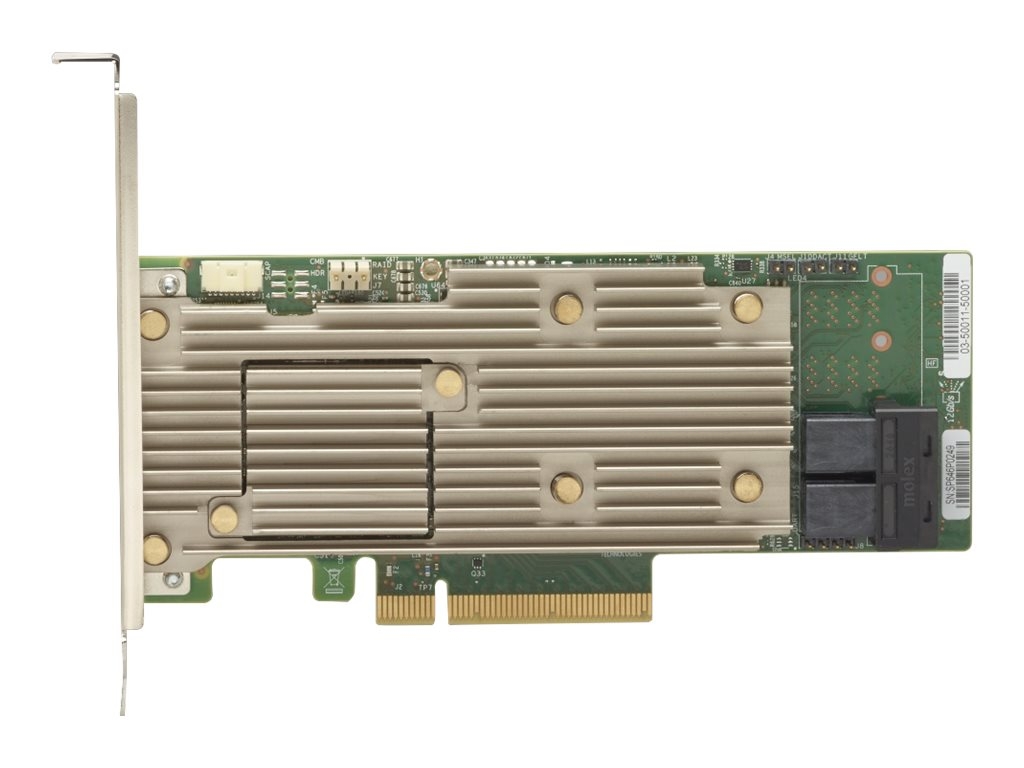

Printers & POSLenovo ThinkSystem 930-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8
SKU 7Y37A01084
| Product Description: | Lenovo ThinkSystem 930-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 3.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Bus Type: | PCIe 3.0 x8 |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
| Channel Qty: | 8 |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Host Bus: | PCIe 3.0 x8 |
| Storage Controller | |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Hard drive, disk array (RAID), solid state drive |
| Channel Qty: | 8 |
| Max Storage Devices Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60 |
| Processor: | LSI LSISAS3508 |
| Expansion / Connectivity | |
| Interfaces: | 2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
| Miscellaneous | |
| Features: | CacheVault flash cache protection, FastPath, SafeStore |
| Compliant Standards: | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Software / System Requirements | |
| OS Required: | SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen, Microsoft Windows Server 2016, VMware vSphere 6.5 (ESXi) |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For: | Lenovo ThinkSystem SR250 ¦ Lenovo ThinkSystem SR530 ¦ Lenovo ThinkSystem SR550 ¦ Lenovo ThinkSystem SR570 ¦ Lenovo ThinkSystem SR590 ¦ Lenovo ThinkSystem SR630 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR670 V2 7Z23 ¦ Lenovo ThinkSystem SR850 ¦ Lenovo ThinkSystem SR850 V2 7D32 ¦ Lenovo ThinkSystem SR860 ¦ Lenovo ThinkSystem SR860 V2 7Z60 ¦ Lenovo ThinkSystem SR950 ¦ Lenovo ThinkSystem ST250 ¦ Lenovo ThinkSystem ST50 ¦ Lenovo ThinkSystem ST550 ¦ Lenovo ThinkSystem ST650 V2 7Z74, 7Z75 |
The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60 as well as JBOD, and include an extensive list of RAS and management features.
- LSI LSISAS3508 processor for high-performance storage management
- 2 GB buffer size for efficient data processing
- Supports RAID levels 0, 1, 10, 5, 50, 6, and 60 for flexible data protection
- Compatible with SATA / SAS 12 Gb/s interfaces for versatile storage options
- Includes CacheVault and SafeStore for enhanced data security
The technical details come from 3rd party. edgemo is not responsible for any errors.
