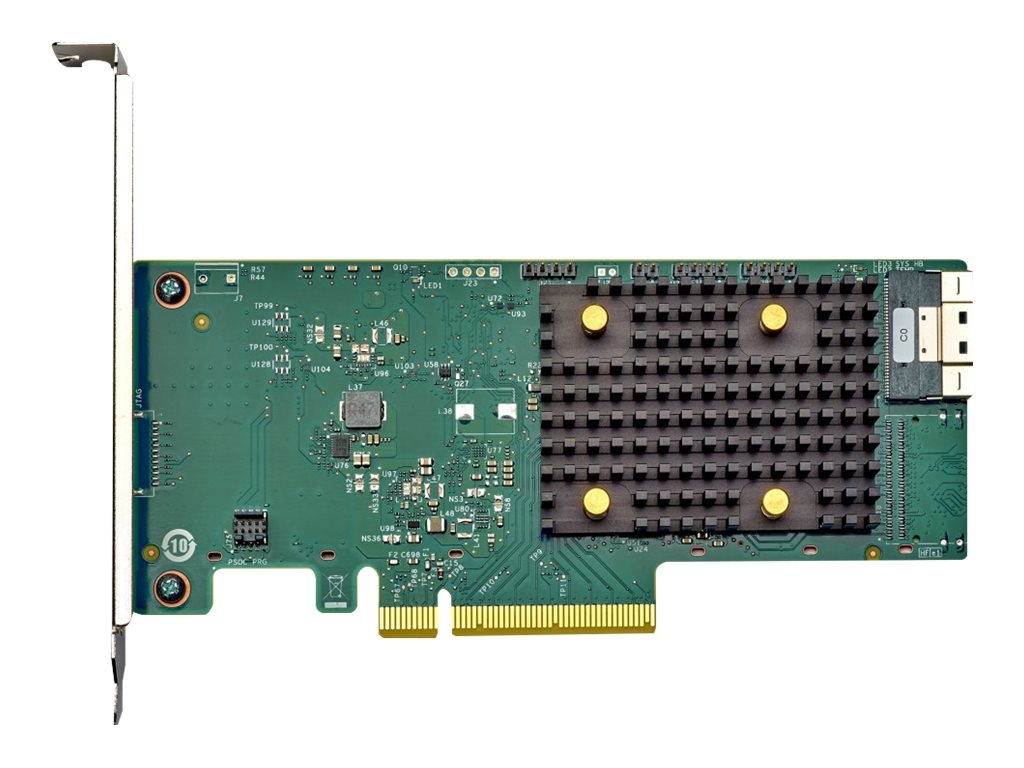

Printers & POSLenovo ThinkSystem 540-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8
SKU 4Y37A78834
| Product Description: | Lenovo ThinkSystem 540-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8 |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Bus Type: | PCIe 4.0 x8 |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID), solid state drive |
| Channel Qty: | 8 |
- Specifications
- Description
| General | |
| Device Type: | Storage controller (RAID) - plug-in card - low profile |
| Host Bus: | PCIe 4.0 x8 |
| Storage Controller | |
| Interface: | SATA / SAS 12Gb/s |
| Data Transfer Rate: | 12 Gbit/s |
| Supported Devices: | Disk array (RAID), solid state drive |
| Channel Qty: | 8 |
| Max Storage Devices Qty: | 8 |
| RAID Level: | RAID 0, RAID 1, RAID 10, JBOD |
| Processor: | Broadcom SAS 3808 |
| Expansion / Connectivity | |
| Interfaces: | 1 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal) |
| Miscellaneous | |
| Features: | Online Capacity Expansion (OCE), Online RAID Level Migration (RLM), Self-Encrypting Drive (SED) support, FastPath, SafeStore |
| Compliant Standards: | EN55022, EN55024, UL 60950, ICES-003 Class B, RoHS, WEEE, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
| Software / System Requirements | |
| OS Required: | SuSE Linux Enterprise Server 12 SP3, SuSE Linux Enterprise Server 12 SP3 with Xen, Microsoft Windows Server 2019, SuSE Linux Enterprise Server 12 SP4, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, SuSE Linux Enterprise Server 12 SP4 with Xen, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 7.0 (ESXi), Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.4, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP3 with Xen, Microsoft Windows Server 2022 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 1 year |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 55 °C |
| Humidity Range Operating: | 20 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For: | Lenovo ThinkSystem SR250 7Y51, 7Y52 ¦ Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR635 7Y98, 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR850 V2 7D31, 7D32 ¦ Lenovo ThinkSystem SR850P 7D2F ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR860 V2 7Z59, 7Z60 ¦ Lenovo ThinkSystem SR950 7X11, 7X12 ¦ Lenovo ThinkSystem ST250 7Y45, 7Y46 ¦ Lenovo ThinkSystem ST50 7Y48 ¦ Lenovo ThinkSystem ST550 7X09, 7X10 |
The ThinkSystem RAID 540 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.
- Supports RAID 0, 1, 10 for enhanced data protection
- 12 Gbit/s data transfer rate for high performance
- Supports up to 8 storage devices for flexible configurations
- Includes advanced features like FastPath and SED support
- Complies with global standards including RoHS and FCC
The technical details come from 3rd party. edgemo is not responsible for any errors.
