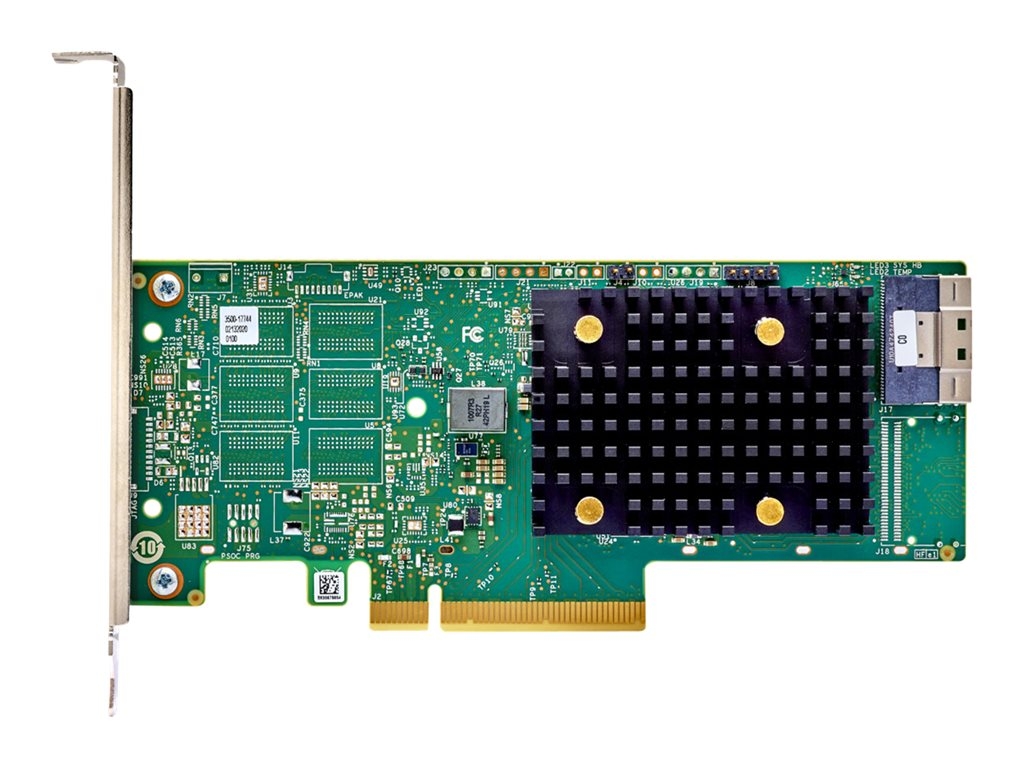

Lenovo ThinkSystem 440-8i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8
SKU 4Y37A78601
Product Description: | Lenovo ThinkSystem 440-8i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8 |
Device Type: | Storage controller - plug-in card - low profile |
Bus Type: | PCIe 4.0 x8 |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 8 |
- Specifications
- Description
General | |
Device Type: | Storage controller - plug-in card - low profile |
Host Bus: | PCIe 4.0 x8 |
Storage Controller | |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 8 |
Max Storage Devices Qty: | 8 |
Processor: | Broadcom SAS3816 |
Expansion / Connectivity | |
Interfaces: | 2 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal) |
Miscellaneous | |
Features: | Self-Encrypting Drive (SED) support, Disk Data Format (DDF) support, S.M.A.R.T. support, JBOD support |
Compliant Standards: | FCC CFR47 Part 15 B Class B, AS/NZS CISPR 22, IEC/EN/UL 60950, ICES-003 Class B, CNS 13438, EN55024, EN55022, VCCI V-3, WEEE, RoHS |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 55 °C |
Humidity Range Operating: | 20 - 80% (non-condensing) |
Compatibility Information | |
Designed For: | Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkSystem SR250 7Y51, 7Y52 ¦ Lenovo ThinkSystem SR530 7X07, 7X08 ¦ Lenovo ThinkSystem SR550 7X03, 7X04 ¦ Lenovo ThinkSystem SR570 7Y02, 7Y03 ¦ Lenovo ThinkSystem SR590 7X98, 7X99 ¦ Lenovo ThinkSystem SR630 7X01, 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR635 7Y99 ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y ¦ Lenovo ThinkSystem SR650 7X05, 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00, 7Z01 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem SR850 7X18, 7X19 ¦ Lenovo ThinkSystem SR850 V2 7D31, 7D32 ¦ Lenovo ThinkSystem SR850P 7D2F, 7D2G ¦ Lenovo ThinkSystem SR860 7X69, 7X70 ¦ Lenovo ThinkSystem SR860 V2 7Z59, 7Z60 ¦ Lenovo ThinkSystem SR950 7X11, 7X12 ¦ Lenovo ThinkSystem ST250 7Y45, 7Y46 ¦ Lenovo ThinkSystem ST50 7Y48 ¦ Lenovo ThinkSystem ST550 7X09, 7X10 |
The ThinkSystem 440-8i is a high performance PCIe 4.0 host bus adapter for internal storage connectivity in ThinkSystem servers. The adapter integrates the latest enhancements SAS technology and offers 8 lanes of 12 Gbps SAS.
- Supports both SAS 12Gb/s and SATA 6Gb/s for versatile storage options
- Low-profile form factor allows for easy integration into various systems
- Supports up to 8 storage devices, enabling scalable storage solutions
- Features such as S.M.A.R.T. and SED support ensure data integrity and security
- Compliant with a wide range of international standards for broad compatibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
