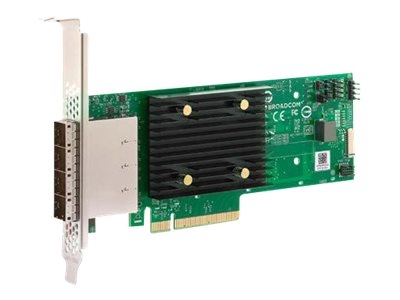

Lenovo ThinkSystem 440-16e - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8
SKU 4Y37A09724
Product Description: | Lenovo ThinkSystem 440-16e - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8 |
Device Type: | Storage controller - plug-in card - low profile |
Bus Type: | PCIe 4.0 x8 |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 16 |
- Specifications
- Description
General | |
Device Type: | Storage controller - plug-in card - low profile |
Host Bus: | PCIe 4.0 x8 |
Storage Controller | |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 16 |
Max Storage Devices Qty: | 16 |
Processor: | Broadcom SAS3816 |
Expansion / Connectivity | |
Interfaces: | 4 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) (internal) |
Miscellaneous | |
Included Accessories: | Low-profile bracket |
Features: | Disk Data Format (DDF) support, CacheCade, S.M.A.R.T. support, Self-Encrypting Drive (SED) support, FastPath, JBOD support |
Compliant Standards: | EN55022, EN55024, ICES-003 Class B, RoHS, WEEE, FCC Part 15 A, VCCI V-3, AS/NZS CISPR 22, CNS 13438, FCC CFR47 Part 15 B Class B, IEC/EN/UL 60950 |
Software / System Requirements | |
OS Required: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, SUSE Linux Enterprise Server 15 SP1, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 7.7, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 12 SP5 with Xen, SUSE Linux Enterprise Server 15 SP1 with Xen, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP2 with Xen, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi), VMware vSphere Hypervisor 7.0 (ESXi) Update 1, Red Hat Enterprise Linux 7.9 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature: | 10 °C |
Max Operating Temperature: | 55 °C |
Humidity Range Operating: | 20 - 90% (non-condensing) |
Compatibility Information | |
Designed For: | Lenovo ThinkSystem SR530 7X08 ¦ Lenovo ThinkSystem SR590 7X99 ¦ Lenovo ThinkSystem SR630 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR645 7D2X ¦ Lenovo ThinkSystem SR650 7X06 ¦ Lenovo ThinkSystem SR650 V2 7Z73 ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W ¦ Lenovo ThinkSystem ST650 V2 7Z74 |
The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
- PCIe 4.0 x8 host interface
- 12Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
- PCI low profile, half-length form factor
- 16x 12Gbps SAS/SATA ports for connectivity to 16x internal drives
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs
- Connectivity for up to 1024 external SAS or SATA drives
- Up to 12 Gbps throughput per port
- Four external x4 HD Mini-SAS connectors (SFF-8644)
- Support for external storage systems and tape backup units
- High performance architecture with very deep queue depth
- Advanced power management support
- Support for SSP, SMP, STP, and SATA protocols
- End-to-End CRC with Advanced Error Reporting
- Spread Spectrum Clocking for EMI reductions
- Supports 512e, 512n and 4K (when available) formatted drives
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- S.M.A.R.T. support
