Lenovo ThinkSystem 4350-8i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8
SKU 4Y37A72480
Product Description: | Lenovo ThinkSystem 4350-8i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 3.0 x8 |
Device Type: | Storage controller - plug-in card - low profile |
Bus Type: | PCIe 3.0 x8 |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 8 |
- Specifications
- Description
General | |
Device Type: | Storage controller - plug-in card - low profile |
Host Bus: | PCIe 3.0 x8 |
Storage Controller | |
Interface: | SATA 6Gb/s / SAS 12Gb/s |
Data Transfer Rate: | 12 Gbit/s |
Supported Devices: | Hard drive, solid state drive |
Channel Qty: | 8 |
Max Storage Devices Qty: | 8 |
RAID Level: | JBOD |
Processor: | Adaptec SmartIOC 2100 PM8222 |
Expansion / Connectivity | |
Interfaces: | 2 x SATA 6Gb/s / SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal) |
Miscellaneous | |
Features: | S.M.A.R.T. support, Native Command Queuing (NCQ), JBOD support |
Compliant Standards: | FCC Part 15 A, AS/NZS 3548, ICES-003 Class B, EN55022, EN55024, VCCI, KCC, RoHS, IEC/EN/UL 60950, FCC CFR47 Part 15 B Class B |
Software / System Requirements | |
OS Required: | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, VMware vSphere Hypervisor 6.7 (ESXi) Update 3, VMware vSphere Hypervisor 7.0 (ESXi) Update 2 |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 1 year |
Dimensions & Weight | |
Depth: | 16.7 cm |
Height: | 6.4 cm |
Environmental Parameters | |
Min Operating Temperature: | 0 °C |
Max Operating Temperature: | 55 °C |
Humidity Range Operating: | 10 - 90% (non-condensing) |
Compatibility Information | |
Designed For: | Lenovo ThinkAgile VX2330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3330 Appliance 7Z62 ¦ Lenovo ThinkAgile VX3331 7Z62 ¦ Lenovo ThinkSystem SR630 V2 7Z70, 7Z71 ¦ Lenovo ThinkSystem SR650 V2 7D15, 7Z72, 7Z73 ¦ Lenovo ThinkSystem ST250 V2 7D8F ¦ Lenovo ThinkSystem ST50 V2 7D8J ¦ Lenovo ThinkSystem ST550 7X10 |

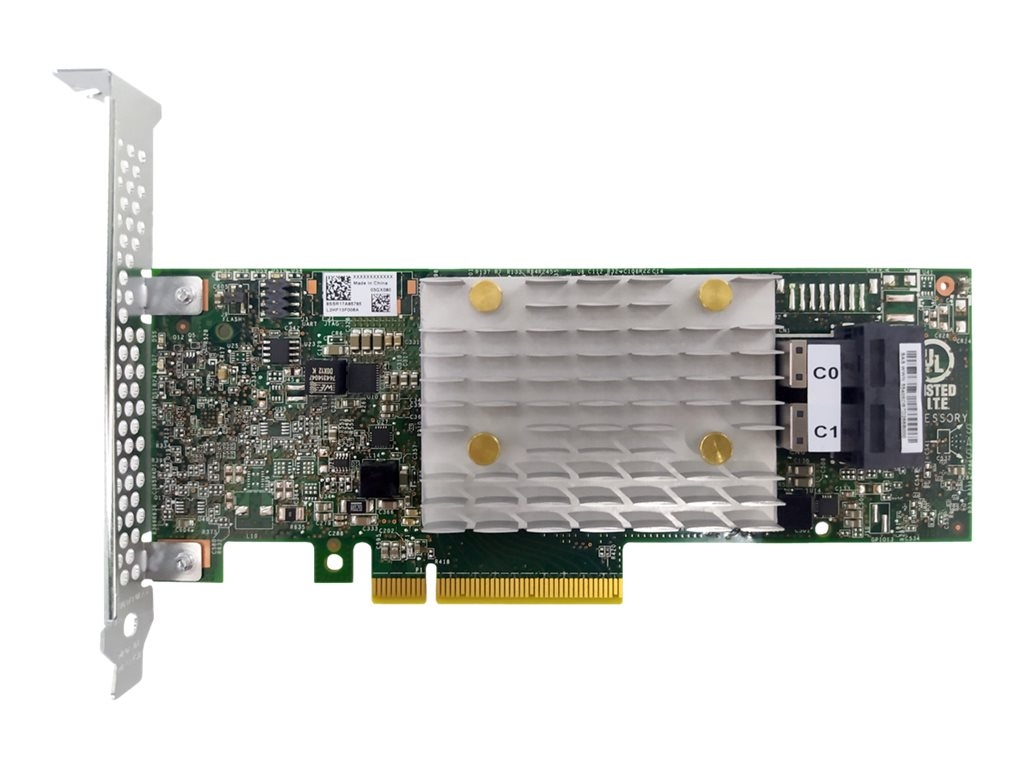

The Lenovo ThinkSystem 4350-8i is a high performance host bus adapter manufactured by Lenovo for internal storage connectivity in ThinkSystem servers. With a low-profile form-factor design, this adapter offers 4x internal mini-SAS HD connectors.
- Optimized for SSD performance
- High performance architecture with a queue depth of up to 1014
- Advanced power management support
- Supports 512e, 512n and 4K sector formatted drives
- TLR
- SATA Native Command Queuing (NCQ)
- S.M.A.R.T. support
