Lenovo ThinkPad Workstation Dock - port replicator - VGA, DVI, HDMI, 2 x DP

SKU 40A50230EU
Product Description:Lenovo ThinkPad Workstation Dock - port replicator - VGA, DVI, HDMI, 2 x DP
Product Type:Port replicator
Video Interfaces:VGA, DVI, HDMI, 2 x DP
Dimensions (WxDxH):40.22 cm x 16.54 cm x 5.56 cm
Weight:980 g
Localisation:Korea, Europe
Power:Power adapter AC 120/230 V (50/60 Hz) 230 Watt Power Provided
In Stock(3)
  • Specifications
  • Description
General
Product Type:Port replicator
Width:40.22 cm
Depth:16.54 cm
Height:5.56 cm
Weight:980 g
Localisation:Korea, Europe
Expansion / Connectivity
Interfaces:6 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - DVI-Digital - 24+1 pin digital DVI ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 1 x docking / port replicator
Miscellaneous
Included Accessories:2 x security keys
Features:Security lock slot (cable lock sold separately), 1 USB 3.0 (Always On)
Compliant Standards:UL, VCCI, BSMI, GOST, NOM, CB, DOC, FCC, KCC, UkrSEPRO, AS/NZS
Power
Power Device:Power adapter
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:230 Watt
Manufacturer Warranty
Service & Support:Limited warranty - replacement - 1 year
Environmental Parameters
Min Operating Temperature:5 °C
Max Operating Temperature:43 °C
Compatibility Information
Designed For:Lenovo ThinkPad P50 20EN, 20EQ ¦ Lenovo ThinkPad P51 ¦ Lenovo ThinkPad P70 20ER, 20ES ¦ Lenovo ThinkPad P71
vis mere

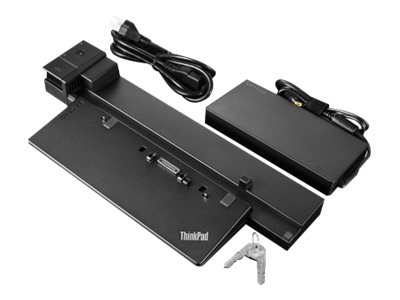

The completely redesigned and supercharged ThinkPad Workstation dock with included ThinkPad 230 W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver-free video quality. With an enlarged support base, the Workstation dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230 W AC adapter to power and charge your mobile workstation notebook.
  • 6x USB 3.0, one supports always-on USB charging
  • 10/1000 Gigabit Ethernet, supports enterprise manageability
  • 2x DisplayPort 1.2
  • 1x DVI-D
  • 1x HDMI 1.4
  • 1x VGA
  • Driver-free, perfect video quality
  • 1x Stereo/Mic Combo Audio Port
  • Security Lock conveniently secures both your notebook and dock to your desk with a single key
  • Physical rear alignment for a perfect dock every time
  • Smaller desktop footprint vs. Series 3 docking stations
  • Comes with ThinkPad AC adapter (230W)
