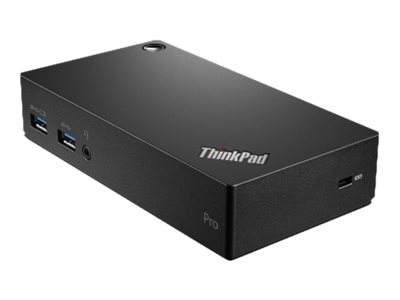

Printers & POSLenovo ThinkPad USB 3.0 Pro Dock - docking station - USB - DP - 1GbE
SKU 40A70045EU
| Product Description: | Lenovo ThinkPad USB 3.0 Pro Dock - docking station - USB - DP - 1GbE |
| Product Type: | Docking station |
| Docking Interface: | USB |
| Video Interfaces: | DP |
| Dimensions (WxDxH): | 15 cm x 8 cm x 3.2 cm |
| Weight: | 236 g |
| Localisation: | Indonesia, Europe |
- Specifications
- Description
| General | |
| Product Type: | Docking station |
| Width: | 15 cm |
| Depth: | 8 cm |
| Height: | 3.2 cm |
| Weight: | 236 g |
| Localisation: | Indonesia, Europe |
| Networking | |
| Data Link Protocol: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces: | 1 x SuperSpeed USB 3.0 - 4 pin USB Type B ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 1 - DVI-Analog/Digital - 24+5 pin combined DVI ¦ 1 x network - RJ-45 ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm |
| Miscellaneous | |
| Cables Included: | 1 x DVI-I to VGA adapter - external ¦ 1 x SuperSpeed USB cable - external - 1 m |
| Features: | Security lock slot (cable lock sold separately), VESA interface support, 1 USB 3.0 (Always On) |
| Compliant Standards: | UL, TUV, VCCI, BSMI, cUL, SABS, CB, DOC, FCC, SII, KCC, ICES, Kvalitet, EAC, RCM |
| Power | |
| Power Device: | Power adapter |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 45 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 40 °C |
The ThinkPad USB 3.0 Pro Dock delivers a professional universal USB docking solution with fast USB 3.0 ports and digital video ports for quick and easy connection to all the workspace peripherals you use every day. Simply plug in a single USB 3.0 cable into your Lenovo PC for instant access to up to two external monitors, Gigabit Ethernet, headphones/speakers, USB printers, scanners, keyboard, mouse and so on for daily use. The Dock can also charge your mobile device via USB always power on port.
- Three USB 3.0 ports - 1 provides always-on mobile device charging
- Two USB 2.0 ports
- One USB 3.0 upstream connector
- DVI port
- DisplayPort
- Gigabit Ethernet port
- Combination audio port
- Security lock slot
The technical details come from 3rd party. edgemo is not responsible for any errors.
