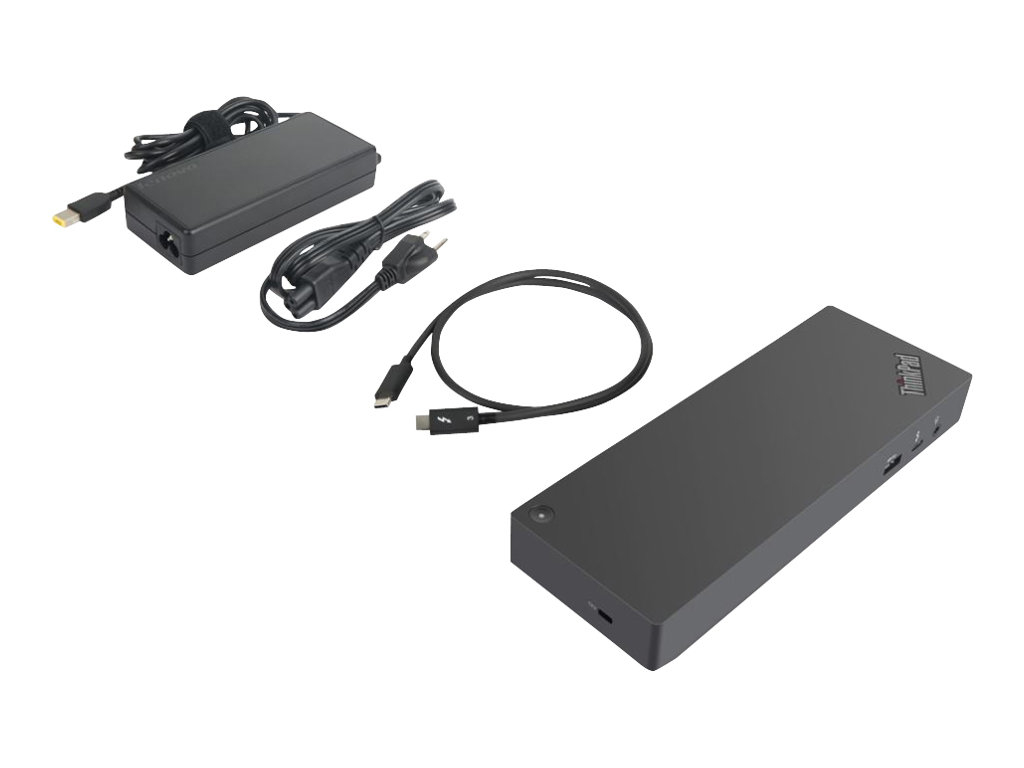

Printers & POSLenovo ThinkPad Thunderbolt 3 Dock Gen2 - port replicator - Thunderbolt 3 - 2 x DP, 2 x HDMI, Thunderbolt - 1GbE
SKU 40AN0135EU
| Product Description: | Lenovo ThinkPad Thunderbolt 3 Dock Gen2 - port replicator - Thunderbolt 3 - 2 x DP, 2 x HDMI, Thunderbolt - 1GbE |
| Product Type: | Port replicator |
| Docking Interface: | Thunderbolt 3 |
| Video Interfaces: | 2 x DP, 2 x HDMI, Thunderbolt |
| Dimensions (WxDxH): | 22 cm x 8 cm x 3 cm |
| Weight: | 525 g |
| Localisation: | English / Europe |
- Specifications
- Description
| General | |
| Product Type: | Port replicator |
| Width: | 22 cm |
| Depth: | 8 cm |
| Height: | 3 cm |
| Weight: | 525 g |
| Localisation: | English / Europe |
| Video | |
| Max Resolution Details: | 3840 x 2160 - 60 Hz (DisplayPort only) ¦ 3840 x 2160 - 60 Hz (HDMI only) ¦ 3840 x 2160 - 30 Hz (DisplayPort1 and DisplayPort2 simultaneously) ¦ 3840 x 2160 - 30 Hz (DisplayPort and HDMI simultaneously) ¦ 2560 x 1600@60Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously) ¦ 3840 x 2160@30Hz, 1920 x 1080@60Hz, 1920 x 1080@60Hz (DisplayPort1 and DisplayPort2 and HDMI simultaneously) |
| Networking | |
| Data Link Protocol: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Interfaces: | 4 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.1 Gen 2 with Always-on charging - 9 pin USB Type A ¦ 1 x USB-C / Thunderbolt 3 - 24 pin USB-C ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x audio - headphones/microphone - mini-phone 3.5 mm 4-pole ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 |
| Miscellaneous | |
| Cables Included: | 1 x Thunderbolt cable |
| Features: | Wake on LAN, Preboot Execution Environment (PXE) support, security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Power | |
| Power Device: | Power adapter |
| Power Provided: | 135 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - replacement - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 27 cm |
| Shipping Depth: | 16.4 cm |
| Shipping Height: | 7.5 cm |
| Shipping Weight: | 1.395 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
Maximize your productivity with a Thunderbolt 3 Dock. Powerful, versatile and incredibly fast! This Intel Thunderbolt Chipset powered Thunderbolt Dock Gen 2 invented to boost productivity with extended compatibility on both USB-C and Thunderbolt enabled laptops. Expand your horizons with multiple 4K displays, and transfer files at record speed. It's everything you need to enhance your creativity and efficiency today.
- Multiple USB and video ports for comprehensive connectivity
- USB 3.1 Gen 2 for rapid data transfer
- Supports dual 4K displays with HDMI and DisplayPort outputs
- Gigabit Ethernet for high-speed network connections
- Kensington security slot for enhanced device protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
