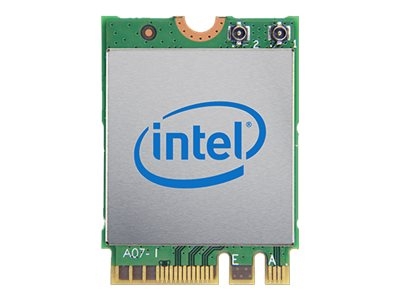

Printers & POSIntel Wireless-AC 9260 - network adapter - M.2 2230
SKU 9260.NGWG
| Product Description: | Intel Wireless-AC 9260 - network adapter - M.2 2230 |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | M.2 2230 |
| Dimensions (WxDxH): | 3 cm x 2.4 cm x 2.2 cm |
| Weight: | 2.9 g |
| Data Link Protocol: | Bluetooth 5.0, Wi-Fi 5 |
- Specifications
- Description
| General | |
| Device Type: | Network adapter |
| Form Factor: | Plug-in card |
| Interface (Bus) Type: | M.2 2230 |
| Networking | |
| Connectivity Technology: | Wireless |
| Data Link Protocol: | Bluetooth 5.0, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Data Transfer Rate: | 1.73 Gbps |
| Features: | 2x2 MU-MIMO technology, WMM support, WPS, seamless roaming, 802.1x authentication |
| Compliant Standards: | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11w, IEEE 802.1x |
| Miscellaneous | |
| Encryption Algorithm: | WPA, WPA2, WPS2, TLS, TTLS, PEAP, EAP-SIM, EAP-AKA, TKIP, 128-bit AES-CCMP, WPA2-PSK, AES-CCMP, FIPS |
| Compliant Standards: | FISMA, UL, cUL, CB, IEC 60950-1 |
| Software / System Requirements | |
| OS Required: | Windows 10, Linux, Google Chrome OS |
| Dimensions & Weight | |
| Width: | 3 cm |
| Depth: | 2.4 cm |
| Height: | 2.2 cm |
| Weight: | 2.9 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 80 °C |
| Humidity Range Operating: | 50 - 90% (non-condensing) |
The Intel Wireless-AC 9260 adapter supports Bluetooth 5 and 2x2 802.11ac Wi-Fi including Wave 2 features, such as 160 MHz channels, delivering up to 1.73 Gbps and downlink MU-MIMO. These features deliver a significant increase in user speeds in dense deployments, supporting fast downloads and long battery life. Combined with powerful processors and exceptional Intel wireless innovations, the Intel Wireless-AC 9260 can provide Gigabit download speed and dramatically improve your connected experience at home, work, or on the go.
- Faster speed, better coverage, larger capacity
- 802.11ac, 2x2, dual band, 160 MHz, MU-MIMO
- Bluetooth 5
- M.2 2230 form factor
The technical details come from 3rd party. edgemo is not responsible for any errors.
