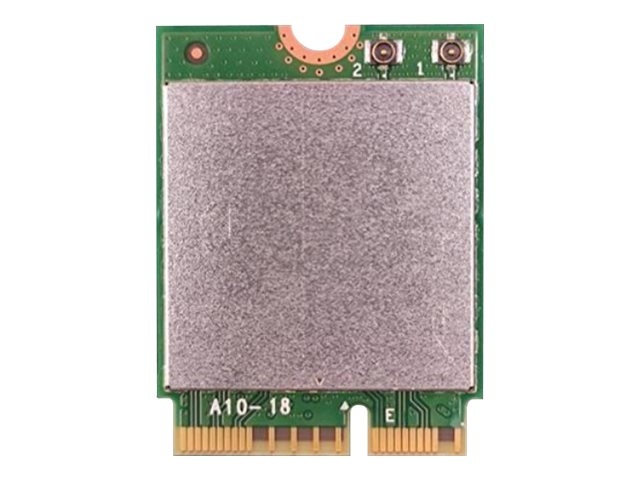

Intel Wi-Fi 6E AX211 - network adapter - M.2 2230 (CNVio2)

SKU AX211.NGWG
Product Description:Intel Wi-Fi 6E AX211 - network adapter - M.2 2230 (CNVio2)
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:M.2 2230 (CNVio2)
Dimensions (WxDxH):3 cm x 0.24 cm x 2.2 cm
Weight:2.83 g
Data Link Protocol:Wi-Fi 5, 802.11ax, Bluetooth 5.2
In Stock(66)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Network adapter
Form Factor:Plug-in card
Interface (Bus) Type:M.2 2230 (CNVio2)
Networking
Connectivity Technology:Wireless
Data Link Protocol:IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2
Data Transfer Rate:2.4 Gbps
Line Coding Format:OFDMA, 1024 QAM
Frequency Band:2.4 GHz, 5 GHz, 6 GHz
Features:2x2 MU-MIMO technology, Intel vPro Technology support, 160MHz bandwidth support, WMM support, Wi-Fi Direct, 802.1x authentication
Compliant Standards:Wi-Fi CERTIFIED 6E, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11r, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w, IEEE 802.11ax, IEEE 802.11az, Bluetooth 5.2, IEEE 802.1x
Miscellaneous
Encryption Algorithm:WPA3, WPA2, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-SIM, EAP-AKA, 128-bit AES-CCMP, 256-bit AES-GCMP, FIPS 140-2
Compliant Standards:FISMA, UL, cUL, IEC 60950-1, CB
Software / System Requirements
OS Required:Linux, Google Chrome OS, Windows 10, Windows 11
Dimensions & Weight
Width:3 cm
Depth:0.24 cm
Height:2.2 cm
Weight:2.83 g
Dimensions & Weight (Shipping)
Shipping Height:2.2 cm
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:80 °C
Humidity Range Operating:50 - 90% (non-condensing)
vis mere
Intel Wi-Fi 6E (Gig+) Series products support dual-stream Wi-Fi in the 2.4GHz, 5GHz and 6GHz bands and include improved TCP throughput - exceeding 2 Gbps - and future Wi-Fi 6 R2 features that maximize the benefits of Wi-Fi 6, including Gigabit speed, ultra-low latencies, and enhanced reliability benefits across new radio frequencies exclusive to Wi-Fi 6E devices.
  • Supports Wi-Fi 6E for expanded network capacity
  • Data transfer rates up to 2.4 Gbps for high-speed connectivity
  • Includes advanced encryption for secure data transmission
  • 2x2 MU-MIMO technology for improved network efficiency
  • Compatible with 2.4 GHz, 5 GHz, and 6 GHz bands for versatile use




The technical details come from 3rd party. edgemo is not responsible for any errors.
