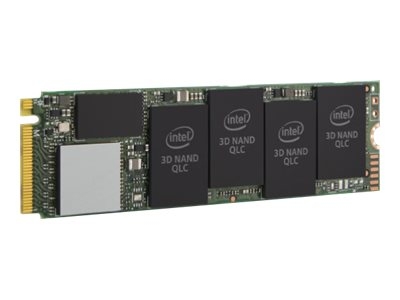

Printers & POSIntel Solid-State Drive 660p Series - SSD - 512 GB - PCIe 3.0 x4 (NVMe)
SKU SSDPEKNW512G8X1
| Product Description: | Intel Solid-State Drive 660p Series - SSD - 512 GB - PCIe 3.0 x4 (NVMe) |
| Type: | Solid state drive - internal |
| Capacity: | 512 GB |
| Hardware Encryption: | Yes |
| Encryption Algorithm: | 256-bit AES |
| NAND Flash Memory Type: | 3D quad-level cell (QLC) |
| Form Factor: | M.2 2280 |
- Specifications
- Description
| General | |
| Device Type: | Solid state drive - internal |
| Capacity: | 512 GB |
| Hardware Encryption: | Yes |
| Encryption Algorithm: | 256-bit AES |
| NAND Flash Memory Type: | 3D quad-level cell (QLC) |
| Form Factor: | M.2 2280 |
| Interface: | PCIe 3.0 x4 (NVMe) |
| Features: | End-to-end data protection, Smart Response Technology, Rapid Start Technology |
| Width: | 22 mm |
| Depth: | 80 mm |
| Weight: | 10 g |
| Performance | |
| SSD Endurance: | 100 TB |
| Internal Data Rate: | 1500 MBps (read) / 1000 MBps (write) |
| 4KB Random Read: | 90000 IOPS |
| 4KB Random Write: | 220000 IOPS |
| Reliability | |
| MTBF: | 1,600,000 hours |
| Non-Recoverable Errors: | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces: | 1 x PCI Express 3.0 x4 (NVMe) |
| Compatible Bay: | M.2 2280 |
| Power | |
| Power Consumption: | 0.1 Watt (active) ¦ 0.04 Watt (idle) |
| Miscellaneous | |
| Package Type: | Retail |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 70 °C |
| Shock Tolerance (operating): | 1000 g |
| Shock Tolerance (non-operating): | 1000 g |
| Vibration Tolerance (operating): | 2.17 g |
| Vibration Tolerance (non-operating): | 3.13 g |
Empowered by Intel's innovative Intel QLC Technology, the Intel SSD 660p offers higher capacities at a lower cost than TLC-based options. With PCIe, the SSD 660p skips SATA and its limitations to offer more space in one drive.
- PCIe performance at an affordable price
- Twice the capacity in identical footprints
- Performance and price that matters
The technical details come from 3rd party. edgemo is not responsible for any errors.
