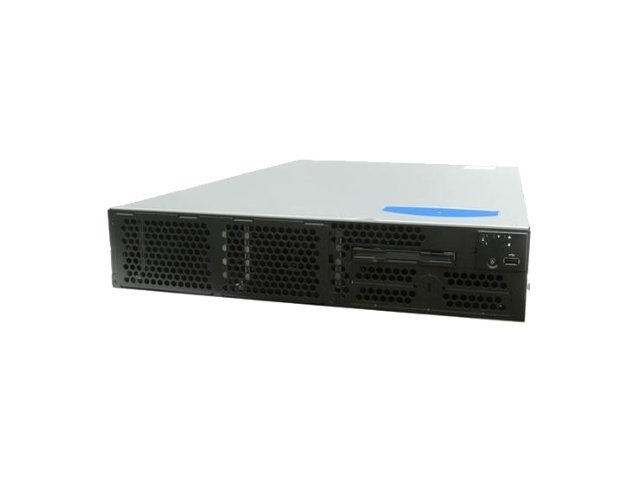

Intel Server System SR2520SAFR - rack-mountable - no CPU - 0 GB - no HDD
SKU SR2520SAFR
Product Description: | Intel Server System SR2520SAFR - rack-mountable - no CPU - 0 GB - no HDD |
Type: | Server - rack-mountable |
Height (Rack Units): | 2U |
Server Scalability: | 2-way |
Processor: | No CPU |
Processor Socket: | LGA771 Socket |
RAM: | 0 GB (installed) / 8 GB (max) - DDR2 SDRAM - ECC |
- Specifications
- Description
General | |
Type: | Server |
Product Form Factor: | Rack-mountable - 2U |
Server Scalability: | 2-way |
Internal Bays Qty: | 6 |
Front Accessible Bays Qty: | 2 |
Processor / Chipset | |
CPU: | No CPU |
Max CPU Qty: | 2 |
CPU Upgradability: | Upgradable |
CPU Socket: | LGA771 Socket |
Chipset Type: | Intel 5000V |
Front Side Bus: | 1333 MHz |
RAM | |
Installed Size: | 0 GB / 8 GB (max) |
Technology: | DDR2 SDRAM - ECC |
Form Factor: | FB-DIMM 240-pin |
Slots: | 4 (Total) / 4 (empty) |
Features: | Registered, Memory Mirroring, Fully Buffered |
Hard Drive | |
Type: | No HDD |
Storage Controller | |
Type: | 1 x SATA - integrated |
Controller Interface Type: | SATA 3Gb/s |
Channel Qty: | 6 |
RAID Level: | RAID 0, RAID 1, RAID 10 |
Storage Controller (2nd) | |
Type: | 1 x IDE - integrated |
Floppy Drive | |
Type: | 3.5" 1.44 MB floppy |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Type: | Integrated |
Graphics Processor: | ATI ES1000 |
Video Memory: | 16 MB DDR SDRAM |
Video Interfaces: | VGA |
Networking | |
Type: | Integrated |
Ethernet Ports: | 2 x Gigabit Ethernet |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
Remote Management Protocol: | IPMI 2.0 |
Expansion / Connectivity | |
Bays: | 1 (total) / 1 (free) x external 5.25" ¦ 1 (total) / 0 (free) x external 3.5" Slim Line ¦ 6 (total) / 6 (free) x internal 3.5" x 1/3H |
Slots: | 2 (total) / 2 (free) x CPU ¦ 4 (total) / 4 (free) x FB-DIMM 240-pin ¦ 2 (total) / 2 (free) x PCIe x4 ¦ 1 (total) / 1 (free) x PCI-X / 100 MHz ¦ 1 (total) / 1 (free) x PCI-X / 133 MHz ¦ 1 (total) / 1 (free) x PCI |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x serial ¦ 3 x USB 2.0 (1 in front) ¦ 1 x VGA |
Miscellaneous | |
Included Accessories: | Rack mounting kit |
Power | |
Device Type: | Power supply |
Power Provided: | 600 Watt |
Power Factor Correction: | Yes |
Dimensions & Weight | |
Width: | 43 cm |
Depth: | 70.5 cm |
Height: | 8.7 cm |
The Intel Server System SR2520SAFR represents the latest generation of enterprise-level, rack-optimized system solutions from Intel. Providing higher flexibility in data storage and security, this scalable, affordable system is ideal for growing companies running high transaction database applications.
This 2U fixed system is designed for organizations running front-end Internet, Web-hosting, and HPC applications. The 2U hot-swap system handles more demanding departmental database, datacenter and other high-transaction applications.
This 2U fixed system is designed for organizations running front-end Internet, Web-hosting, and HPC applications. The 2U hot-swap system handles more demanding departmental database, datacenter and other high-transaction applications.
