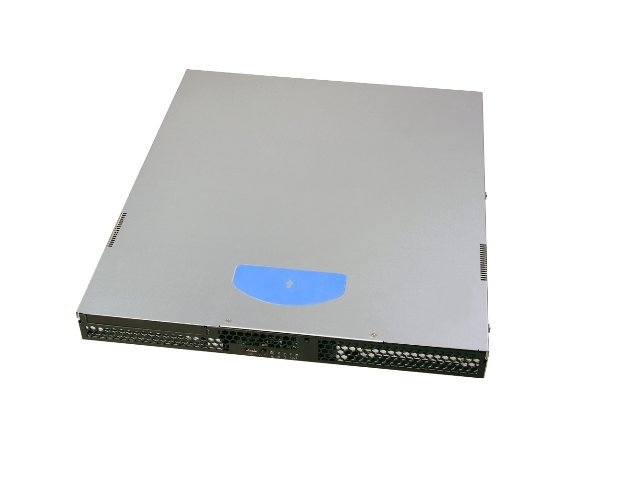

Intel Server System SR1630BC - rack-mountable - no CPU - 0 GB - no HDD

SKU SR1630BC

Product Description:	Intel Server System SR1630BC - rack-mountable - no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	1U
Server Scalability:	2-way
Processor:	No CPU
RAM:	0 GB (installed) / 32 GB (max) - DDR3 SDRAM
Server Storage Bays:	3.5"

14-05-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 1U
Server Scalability:	2-way

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
Chipset Type:	Intel 5500

RAM
Installed Size:	0 GB / 32 GB (max)
Technology:	DDR3 SDRAM

Hard Drive
Type:	No HDD

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Type:	Integrated
Video Memory:	64 MB DDR2 SDRAM
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Bays:	2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x external 5.25" Slim Line
Slots:	2 (total) / 2 (free) x CPU ¦ 8 (total) / 8 (free) x memory
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x serial ¦ 5 x USB (1 in front)

Power
Device Type:	Power supply
Power Provided:	400 Watt

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

Dimensions & Weight
Width:	43 cm
Depth:	50.8 cm
Height:	4.3 cm

vis mere

The Intel Server System SR1630BC is ideal for space-constrained, 8 DDR3 DIMM sockets, high-efficiency PSU, one low profile half-length PCI Express 2.0 x8 riser card. The Intel Server System SR1630BC is ideal for business applications, including file or print server, web server, email server, storage server, and CPU-frequency intensive high performance computing (HPC) workloads.

Fast, scalable memory
20" chassis length
High-efficiency power supply

The technical details come from 3rd party. edgemo is not responsible for any errors.
